Summary of Contents for Guldmann DH 2000

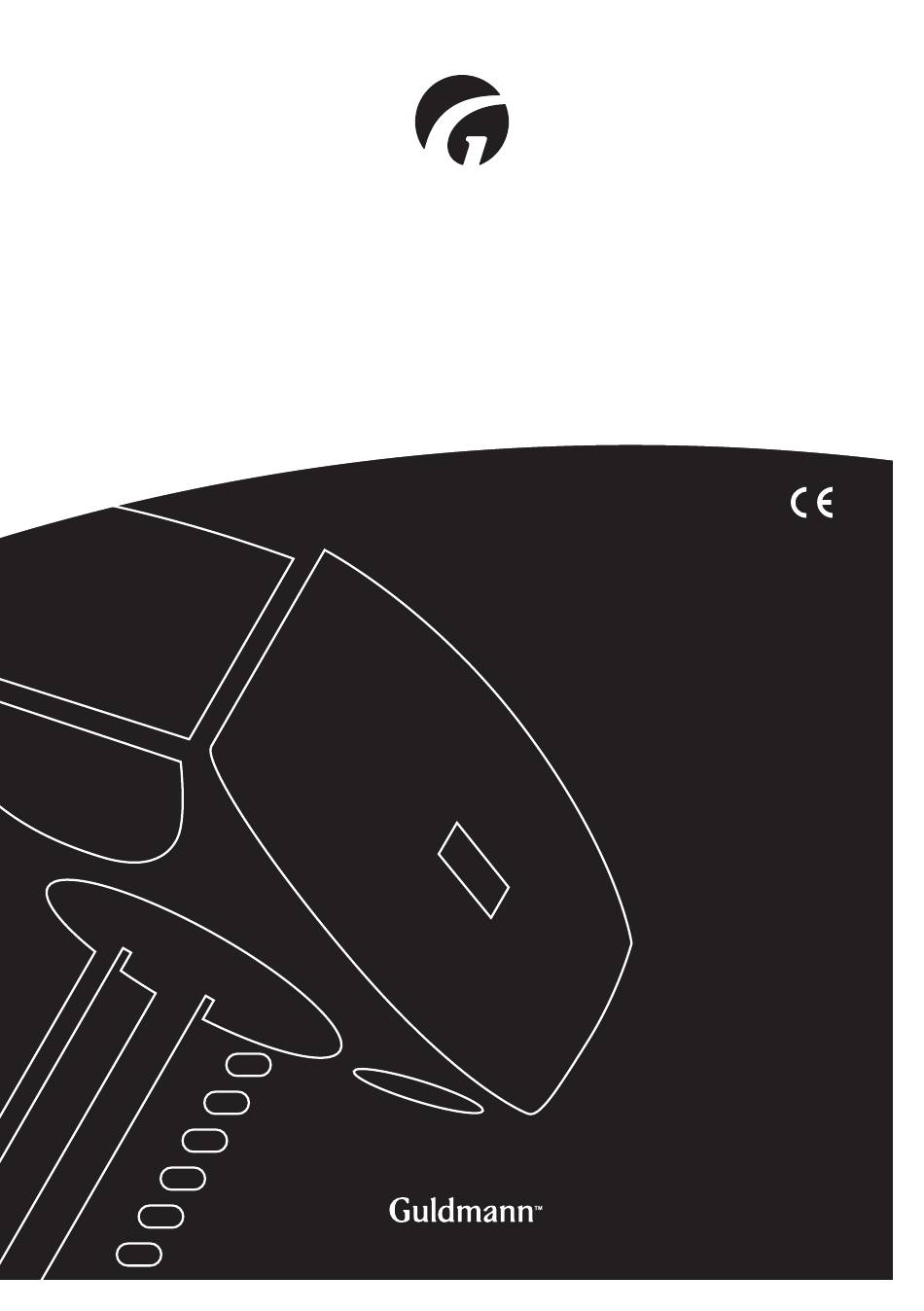

- Page 1 GB . . . . . . . . DH .2000 Vers . .1 .00...
-
Page 2: Table Of Contents
DH .2000, .Ceiling .- .mounted .hoist Item .nos: 1075 - 000 1075 - 100 1 .00 . . . . . . . . . . Purpose .and .Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.01 . -
Page 3: Purpose .And .Use
Purpose DH 000 is a lifting module of the Guldmann Ceiling-Mounted Lifting Systems. DH 000 is suitable in all Guldmann rail systems, both single track, room-covering, and combined rail systems. DH 000 is developped for use in private homes, insitutions, hospitals, riding... -
Page 4: Important / Warning
If .in .doubt .about .how .to .use .the .sling, .please .contact .your .supplier . Guldmann A/S cannot be rendered liable for inadequate anchoring resulting from incorrect estimation of mounting conditions. Guldmann cannot rendered liable for defects or accidents due to incorrect fitment or assesment of slings. 1 .03 . -
Page 5: Sling Safety
The lifting straps must be suitable for hooks with a diameter of 8 mm. The lif- ting straps must be designed for use with a four-point horizontal lifting hanger. Guldmann cannot be rendered liable for defects and accidents, due to use of a sling manufactured by others. -
Page 6: Mounting Of Charging Station In The Traverse Rail System
Slide the end stop back to the mark. Unscrew the screw (1) next to the rub- ber knob of the end stop and fit the spring retainer (2) into the opening of the rail undeneath the end stop. The opening of the spring retainer must face the hoist. -
Page 7: Assembling Before Use
The hand control is connected to the plug on the bottom of the lifting module, as shown on the sketch. DH 000 is now ready for use in the Guldmann rail systems. -
Page 8: Swing - Kit
1 .09 . Swing .- .kit . 1. Place the two hoists as close to each other as possible. � Mount the lifting hanger on the hook of hoist B. . Unroll the unloaded strap of the hoist A � until it can be hooked onto the oval hook of the lifting hanger. -
Page 9: Description .Of .Functions
2 .00 . Description .of .Functions 2 .01 . Pictograms ./ .labels . Pictograms printed on bottom of the DH 000 1. Charging .Hand- 3.Emergency 4.Emergency indicator control stop lowering. 2 .02 . Operating .the .hoist Hand .switch .and .indicator .lamp DH 000 switches on automatically when pressing one of the keys of the hand control. -
Page 10: Safety Functions
Recharging ./ .connecting .the .hoist . Recharging When the green lamp on the bottom of the DH 2000 starts flashing, the hoist must be recharged as soon as possible. The DH 000 is placed at the charging station, which is mounted in an appropriate place in the rail system and con- nected to the charger. -
Page 11: Accessories
2 .06 . Accessories Transverse .drive .motor . The transverse drive motor makes the hoist fully automatic. It is built into the DH 000 without changing the outer dimensions and the visual impression of the hoist. When the hoist is provided with the drive motor, the spped is gradually incre- ased to 8 metres / minute to ensure a smooth up-start. -
Page 12: Dismantling .& .Transport
The hoist can be dismantled for transport and storage, see section 3.1 3 .03 . How .to .package .the .hoist .for .transport .? Guldmann recommends that the dismantled hoist is always transported in its original packaging. 4 .00 . Maintenance .and .storage . -
Page 13: Long-Term Storage
Servicing and estimation of life span are based on the annual service check and maintenance carried out by a service engineer or by the Guldmann Ser- vice Team. The hoist has an expected life span of 15 years. The hoist must then be assessed by qualified service staff as to its future use. -
Page 14: Service Check - Allround
During the inspection a service report shall be made, describing what has been checked and exchanged. Worn or defective parts shall be replaced by new spareparts from V. Guldmann A/S. 1 . Visual .check .of .the .product . • Check the product for wear and tear •... -
Page 15: Trouble Shooting
• Please contact your local Guldmann representative If the green light on the bottom of the DH 2000 is still flashing after the hoist .has .been .recharged .? •... - Page 16 V . .Guldmann .A/S Corporate Office: Graham Bells Vej 1-3A DK-800 Århus N Tlf. +45 8741 3100 Fax +45 8741 3131 info@guldmann.com www.guldmann.dk...
