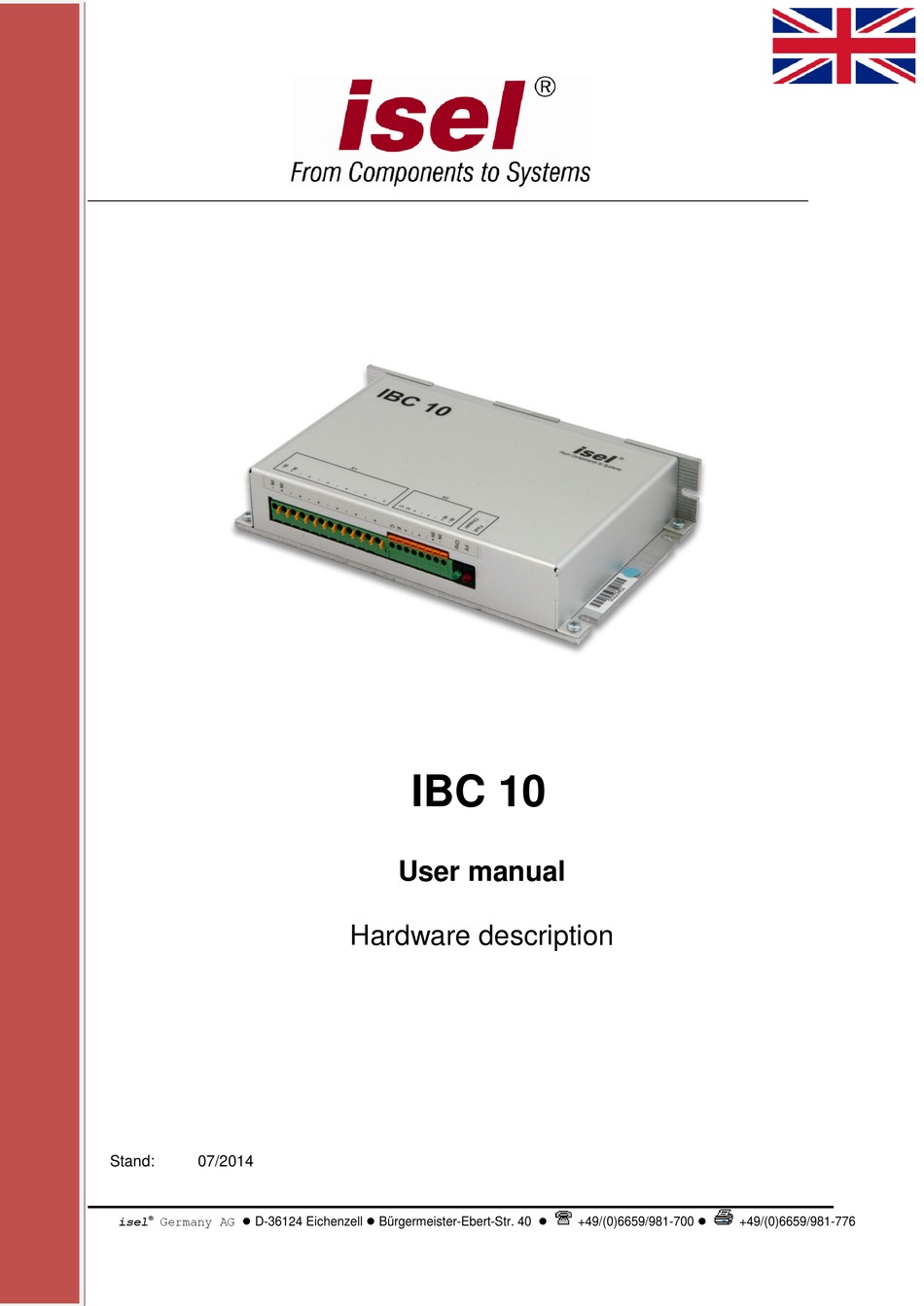

- Page 1 IBC 10 User manual Hardware description Stand: 07/2014 ® Germany AG D-36124 Eichenzell Bürgermeister-Ebert-Str. 40 +49/(0)6659/981-700 isel +49/(0)6659/981-776...
- Page 2 All rights reserved. It is not permitted to reproduce or electronically process, duplicate or spread any part of our prints in any way (print, copy etc.) without written permission of isel Germany AG.
- Page 3 10 – Hardware description Table of contents 1 Introduction ............Fehler! Textmarke nicht definiert.4 2 Safety symbols ...................... 5 3 Technical Data ....................... 6 4 Connectors, pin assignments ......Fehler! Textmarke nicht definiert.7 Connection for power supply (X1/Power IN) ..........7 Connection for final stages (X1/Power OUT) ..........

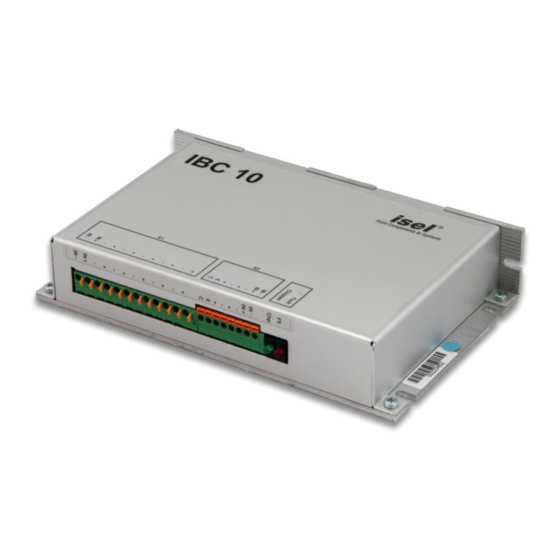

- Page 4 10 – Hardware description 1 Introduction The brake chopper module IBC10 is an additional module for isel servo controllers. With the module the energy, which is generated in the generator operation, is degraded and prevents a back feed-in to the power supply. Therefore resulting defects and malfunctions of parts of the controller are avoided.
- Page 5 10 – Hardware description Safety symbols The brake chopper module IBC 10 is constructed according to the current state of the art and the recognized safety rules. The device may only be operated in perfect technical condition. Disturbances must be corrected immediately.
- Page 6 10 – Hardware description 2 Technical Data Part-no.: 390194 4001 Dimensions: 180mm (W) x 110mm (H) x 35mm (D) Weight: 538 g Protection class: IP20 Supply voltage: 24 - 100VDC Maximum rated current: Ambient temperature: 5°C to +40°C Storage temperature: -25°C to +70°C...
- Page 7 10 – Hardware description 3 Connections 3.1 Connection for power supply (X1/Power IN) Here the output of the DC-power supply unit is connected. This is decoupled via a diode from the outputs of the final stages. 3.2 Connection for final stages (X1/Power OUT) The final stages are affiliated to the above-mentioned diode decoupled voltage.
- Page 8 10 – Hardware description The maximum curretn IF should not exceed 200mA ! Power supply Final stages Evaluation of temperature error; HIGH signal = temperature ok...
