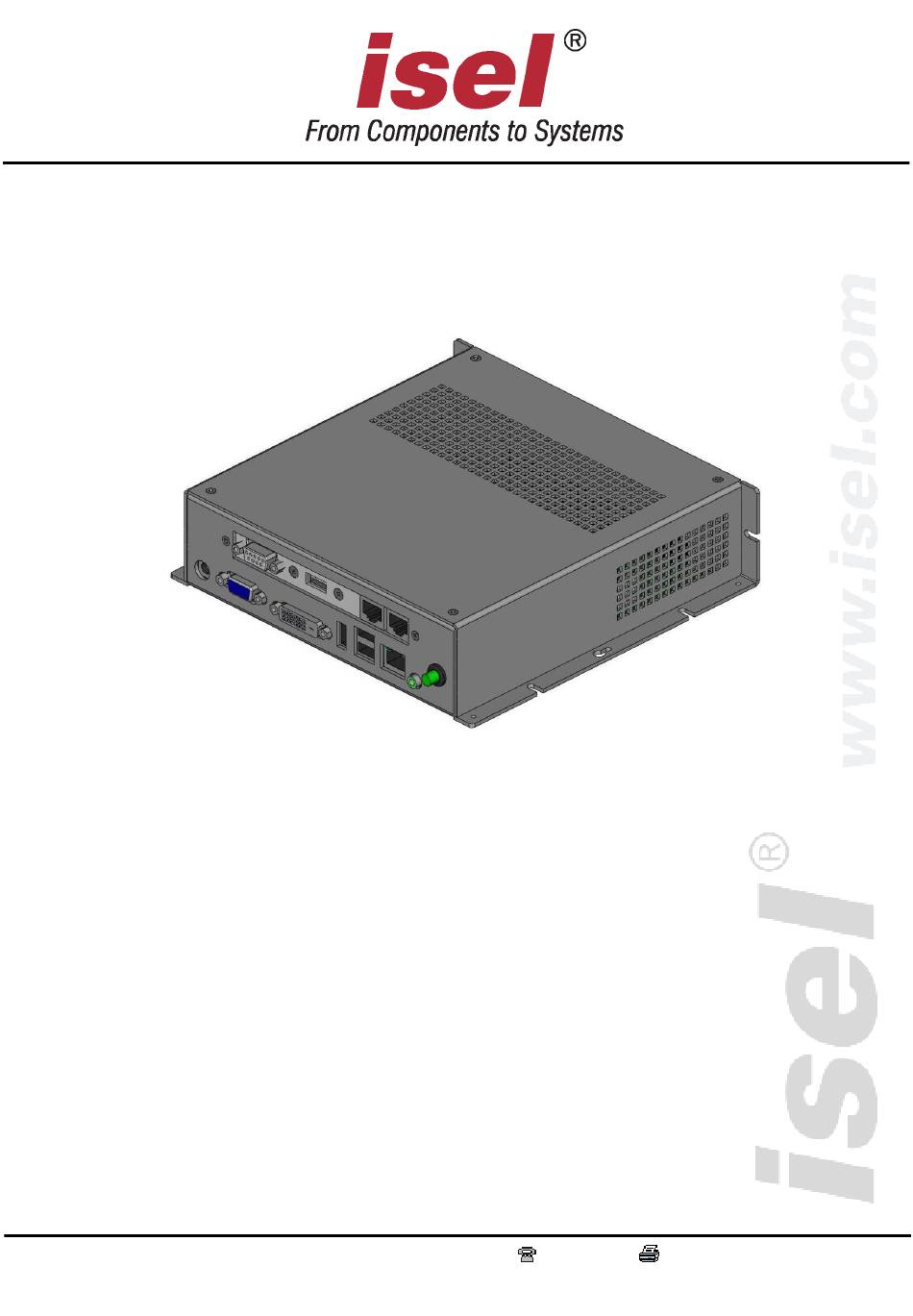

- Page 1 Operating Instruction isel Germany AG, D-36124 Eichenzell, Bürgermeister-Ebert-Str. 40 (06659)981-0 (06659)981-776...
- Page 2 All rights reserved. It is not permitted to reproduce or electronically process, duplicate or spread any part of our prints in any way (print, copy etc.) without written permission of isel Germany isel Germany AG Manufacturer: Bürgermeister-Ebert-Straße 40...
-
Page 3: Table Of Contents
1.1 Safety symbols ....................... 1 1.2 Sicherheitshinweise ......................1 Product description ......................2 2.1 Technical data ........................ 2 2.2 Connectors / Interfaces iPC15 ..................3 Mounting and operation ..................... 5 3.1 Mounting dimensions ..................... 5 3.2 Mounting ........................6 3.3 Switch on iPC15 ......................6 Maintenance and cleaning .................... -
Page 4: Introduction
Information This symbol signalizes important information. 1.2 Sicherheitshinweise The Control PC’s iPC15 are designed to current technical and recognized rules. The device may only be used if it is in correct condition. Any faults have to be eliminated immediately. Neither children nor non-authorized persons are allowed to put the device into operation. -
Page 5: Product Description
/ iPC20 Operating instruction 2 Product description 2.1 Technical data iPC15 dimensions (L x H x W): 190 x 51,5 x 200 mm weight: 1,1 kg ambient temperature: 0°C - 50°C humidity: max. 90% not condensing safety class: IP20 power supply voltage: 12 VDC/min. -
Page 6: Connectors / Interfaces Ipc15
/ iPC20 Operating instruction 2.2 Connectors / Interfaces iPC15 Nr. Schnittstelle Connector for power supply 2-pin plug, use with external power supply unit 12 VDC/60W power supply voltage 2-lead wire (+12VDC yellow / GND black) for power supply, use on control... - Page 7 / iPC20 Operating instruction isel-CAN-interface card iCC10 / iCC20 (optional variant) Integrated CAN-PCI- interface card with RJ45 connector to communicate with isel CAN bus components (e.g. IMDxx, CAN-IO-XX/XX). The Windows hardware driver for the CAN-PCI card is included on the ProNC/Remote installation medium. Normally the driver files will be installed during initial operation of the iPC15.
-
Page 8: Mounting And Operation
/ iPC20 Operating instruction 3 Mounting and operation 3.1 Mounting dimensions Dimension drawing iPC15 Page - 5... -
Page 9: Mounting
Do not cover the louvers!! 3.3 Switch on iPC15 Switch on iPC15 by pressing the PC-start button on the front side of the computer (see also Chapter: 2.2) ore use the contacts of the Sub-D9-pin female connector. -
Page 10: Maintenance And Cleaning
Maintenance The computer iPC15 are maintenance free. Cleaning Switch off iPC15 and all connected components. Remove the power supply voltage connection. Use a wet, soft cloth to clean the case. Don’t use cleaning agents or abrasives. Be sure that no moisture comes into the case. -
Page 11: Ec Declaration Of Conformity
/ iPC20 Operating instruction 5 EC Declaration of Conformity EC - Declaration of Conformity Der Hersteller The manufacturer isel Germany AG Bürgermeister-Ebert-Str. 40 D-36124 Eichenzell erklärt hiermit, dass folgendes Produkt hereby declares that the following product Geräteart: Industrie PC...
