Wiring Example - Mayr ROBA-brake-checker plus AC Installation And Operational Instructions

Installation and Operational Instructions for
ROBA -brake-checker plus AC Type 029.700.2
®
Electrical connection
Power terminal
11 F/S (see wiring examples)
12 F/S (see wiring examples)
13 Output voltage -
14 Do not assign!
15 Do not assign!
16 Output voltage +
17 Supply voltage VAC
18 Supply voltage VAC

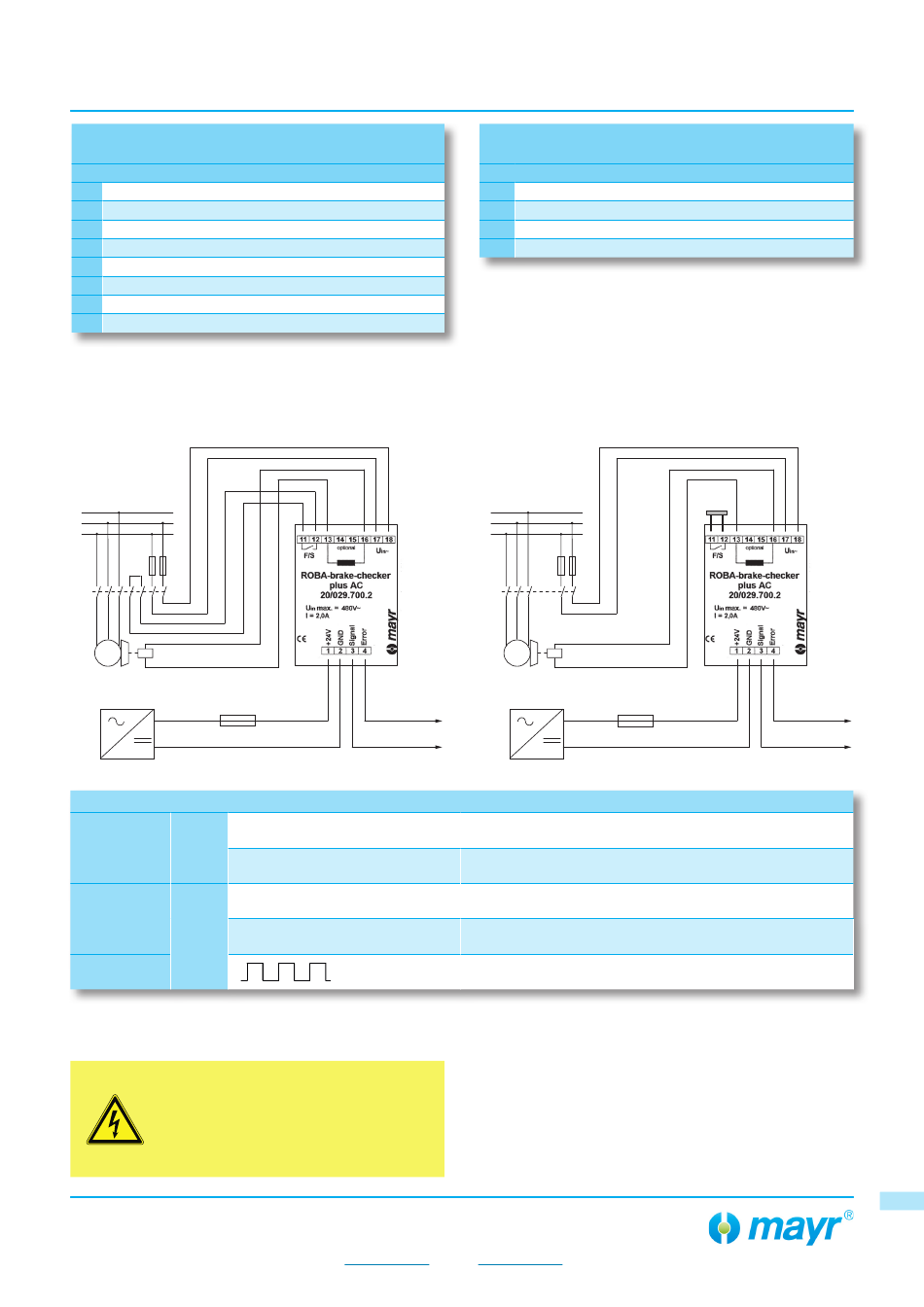

Wiring Example

(400 VAC,
DC-side, fast switching)
L1
L2
L3
M
3 ~
+
-
24 VDC
0 VDC (low)
Signal 3
24 VDC (high)
24 VDC (high)
Error
4 0 VDC (low)
Warning
1)
1) Rectangular signal 10 Hz / 24 Vpp
2) Voltage corresponds to input voltage of control terminal
DANGER
Danger of death! Do not touch voltage-
carrying lines and components.
No mains separation!
Voltage control through phase angle control
system
26/06/2019 HH/GF
Page 5 of 10
Electrical connection
Control terminal
1
2
3
4
Wiring Example
(400 VAC,
AC-side, slow switching)
L1
L2
L3
Outputs
Brake is not energised, movement of the armature disk for
closing the brake.
Brake energised, movement of the armature disk for opening
2)
the brake.
no errors
2)
Brake does not open or close, line interruption, false detec-
tion
Preventative function monitoring (wear recognition and error
recognition, functional reserve)
Chr. Mayr GmbH + Co. KG
Eichenstraße 1, D-87665 Mauerstetten, Germany
Tel.: +49 8341 804-0, Fax: +49 8341 804-421
www.mayr.com, E-Mail: info@mayr.com
Input voltage +24 VDC
Input voltage 0 VDC
Signal (output) max. 100 mA
Error (output) max. 100 mA
M
3 ~
+
-
24 VDC
(B.0297002.EN)
