Summary of Contents for GR 100 Series

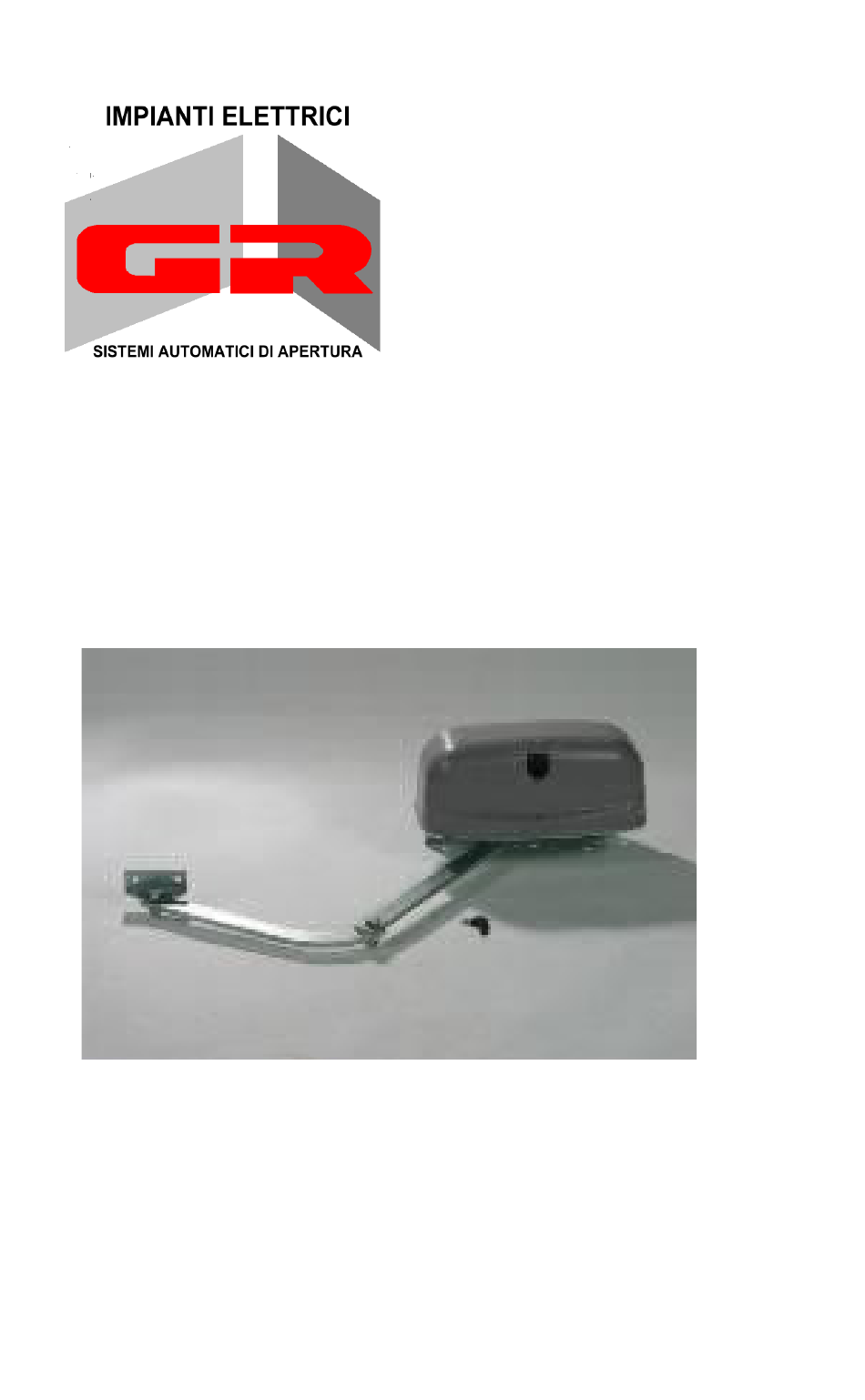

  • Page 1 SWIN GATE OPER ATOR GR 100 12-220V...

  • Page 2: Safety Rules

    WARNING: command pulses must be given from positions where the gate is visible. WARNING: use the transmitters only if you can see the gate. WARNING: GR Srl is not responsible for possible damages or injuries to people, objects or animals, caused by any unauthorised modification of the product.

  • Page 3: Specifications

    SPECIFICATIONS Motor GR 100IL12_E GR 100IL220_E Max. wing lenght 1,8 m 2,5 m Max wing weight 200kg 250kg Power supply 12 V 220/230 V Motor capacity 48 W 350 W Power absorbed 4,0 A 1,5 A 1600 Starting thrust 250 N/m 500 N/m Working temp.

  • Page 4: Preliminary Checks

    The gear motors GR 100 have been planned and built in order to open all those gates as above mentioned. GR Srl is not responsible for any abnormal and/or different use of the gear motors GR 100. As the automation can be controlled from distance through a remote control, you must always check the full efficiency of all the safety devices.
  • Page 5 Alfa Alfa 0 cm 16-20cm 90° 15 cm 16-20cm 90° 0 cm 20-35cm 120° 15 cm 20-25cm 100° 5 cm 16-20cm 90° 15 cm 25-30cm 90° 5 cm 20-25cm 120° 15 cm 30-35cm 100° 5 cm 25-35cm 110° 15 cm 35 cm 90°...
  • Page 6 Assemble the articulated arm and fix it to the motor shaft like in fig. 2-3 Fig.2 Fig.3 Unclamp the motor turning right or left the key A to hear the first “click” (fig.4) Fig.4 Moving the articulated arm, locate and the bracket A on the wing, doing in the manner that the angulations between the two element of the articulated arm is not higher than the one indicated...

  • Page 7: Conformity Declaration

    on fig. 5-6. Fix the bracket A verifying that the distance between the centre of the motor shaft and the centre of the bracket A is NOT more than 74 cm. Fig.5-6 Do a complete movement of the wing verifying the correct movement of the articulated arm.

  • Page 8: Electrical Connections

    It’s in accordance with Machine Directive 39/89/CE and following modify. It’s in accordance with the following directive CE: Electromagnetic compatibility Directive 89/336/CEE and following modify. Low tension Directive 73/23/CEE and following modify. PLANT COMPONENTS: Photocells RX/TX 5 Flashing light Photocells TX/RX 6 Aerial Motor 7 Control box...
  • Page 9 EMERGENCY MANOEUVRE Remove the cap on the carter, put in the unblocking key and turn it left or right to hear the first “click” GR SISTEMI AUTOMATICI DI APERTURA s.r.l. Via E. Mattei 9 46043 Castiglione delle Stiviere (Mn) Italy e.mail...

This manual is also suitable for:

100il12 e100il220 e
