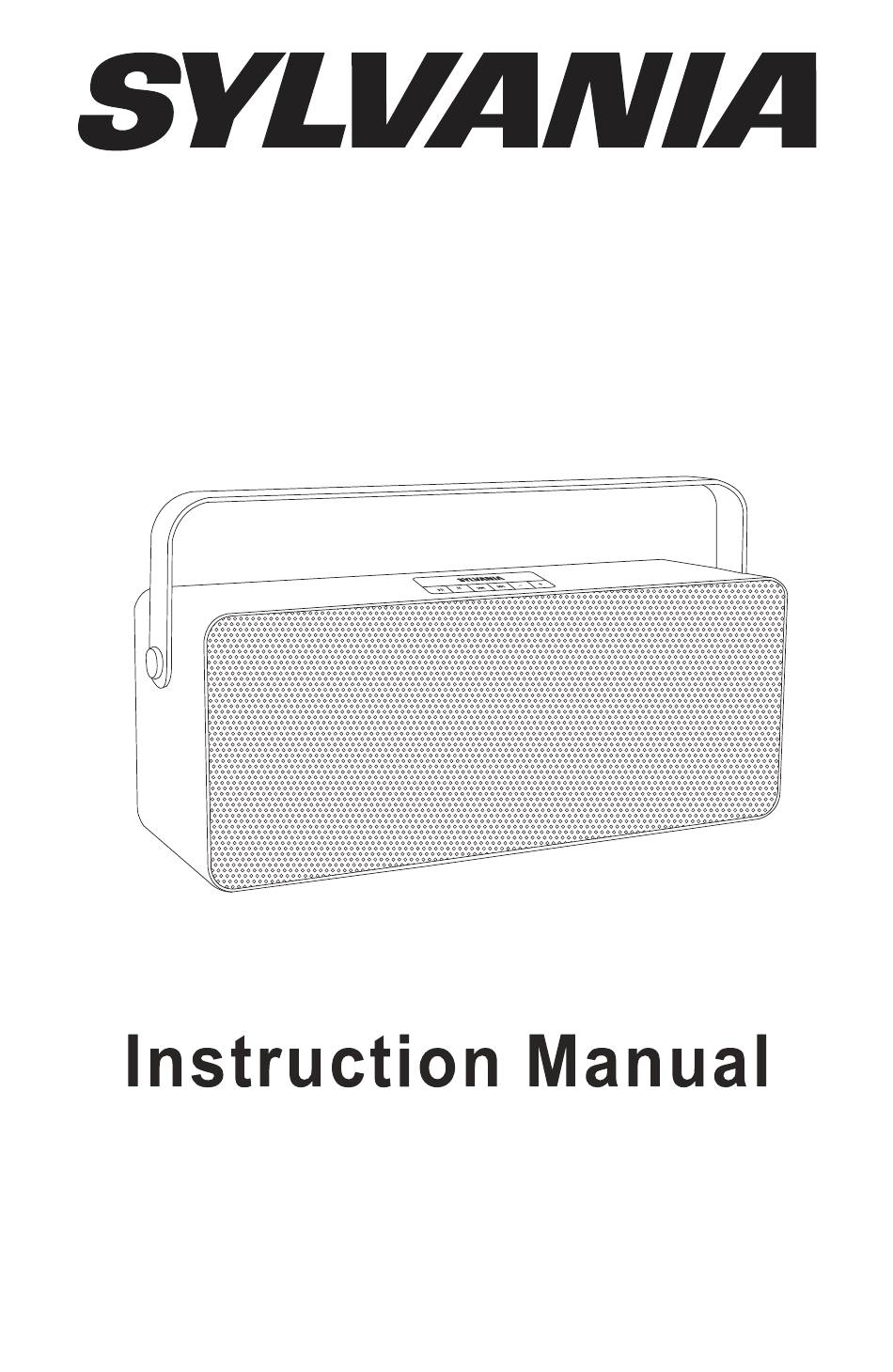

- Page 1 WIRELESS SPEAKER SP672-ASST-PL Thank you for purchasing this product. Please read this manual carefully, and save it for future reference. SYLVANIA is a registered trademark of OSRAM Sylvania Inc. used under license.
-
Page 2: Table Of Contents
Speaker Overview..................4 Control Buttons (Top) ................. 5 Installing the USB Power Cable..............6 Charging the Built-in Battery ..............6 Power On/Off the Speaker ................. 7 Bluetooth Audio Streaming................. 8 Using the USB Port ..................9 Using the TF Card Slots ................10 Listening to the Radio ................. - Page 3 WARNINGS AND PRECAUTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Use of any controls or adjustments or performance of procedures other CAUTION: than those herein specified may result in hazardous radiation exposure. Changes or modifications to this unit not expressly approved by the party WARNING: responsible for compliance could void the user’s authority to operate the equipment.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Special note:...
- Page 5 PRODUCT FEATURES Bluetooth technology: V3.0 Bluetooth transmission range: 10M (Free space) Aluminum carry handle Stereo sound output: 3W x 2 (max.) USB & TF card support direct music play FM radio 3.5mm auxiliary input (stereo mini jack) Built-in Lithium-ion rechargeable battery Power rating: DC 5V / 1.0A (via Micro-USB port) PACKAGE CONTENTS Please make sure that the items shown below are included in the package.
-
Page 6: Speaker Overview
DEVICE OVERVIEW Speaker Overview Control Panel Carry Handle Left Speaker Right Speaker... -
Page 7: Control Buttons (Top)
Control Buttons (Top) Press and release to increase the volume in steps. Press and hold to progressively increase the volume. Note: You will hear an audible alert when the maximum volume level has been reached. Work LED Indicator Bluetooth Mode - Flashes in blue quickly: Waiting for connection - Lights solid blue: Device... -
Page 8: Installing The Usb Power Cable
GETTING STARTED TF CARD DC 5V OFF-ON Notes: Before moving or installing this product, make sure the Power switch of the unit is in OFF position. Disconnect the USB cable from the speaker when unused for long periods of time. Notes: When the speaker is working with the built-in battery and it prompts that the battery is low, please connect the USB cable to charge it... -
Page 9: Power On/Off The Speaker
OPERATING THE SPEAKER Power On/ Off the Speaker Set the Power switch in ON position to power on the speaker, and the LED working mode indicator lights up. Set the Power switch in OFF position to power off the speaker. The LED power indicator turns off. -
Page 10: Bluetooth Audio Streaming
Bluetooth Audio Streaming This Bluetooth Speaker features wireless Bluetooth audio streaming function. Follow the instructions: Pairing the speaker with a Bluetooth device Pairing is the process required to create a link between Bluetooth devices to allow wireless connection. You must pair a device with the speaker before you start using it. -
Page 11: Using The Usb Port
Using the USB Port The speaker has a USB port for you to insert a compatible USB drive and directly play stored WMA / MP3 audio contents. Make sure the speaker is power on. 2. Insert your USB drive into the USB port on the back panel of the speaker. TF CARD DC 5V OFF-ON... -
Page 12: Using The Tf Card Slots
Using the TF Card Slots The speaker has a TF (Micro SD) card slot for you to insert your compatible memory cards and directly play stored WMA / Mp3 audio contents. Make sure the speaker is power on. 2. Insert your TF card to the TF card slot on the back of the speaker. TF CARD DC 5V OFF-ON... -
Page 13: Listening To The Radio
Listening to the Radio The speaker features FM radio function. Make sure the speaker is power on. Inserted the 3.5mm audio cable (supplied) to work as FM antenna. TF CARD DC 5V OFF-ON 3. Press the Mode button on the top of the speaker repeatedly to select FM Radio mode. -
Page 14: Using The Aux Input
Using the AUX input The Bluetooth Speaker has an AUX input (Line In) at its back, for you to use a 3.5mm stereo audio cable to connect it to other audio player. Connect one end of the 3.5mm stereo audio cable (supplied) to the AUX jack at the back of the speaker, and the other end to your audio player, smart phone or audio device etc. - Page 15 PRODUCT SPECIFICATIONS Output Power 3W x 2 Max. Speaker Units 2 x 3" Sensitivity >60db Frequency Range 40Hz-20KHz <0.1% (@1W) Distortion >60db Dimensions W255 × D85 × H140 mm Power Input DC 5V/1.0A, via Micro-USB port Rechargeable Lithium-ion battery Capacity: 3.7V/1800mAH Built-in Battery: Charging time: 4 hours Play time: approx.
