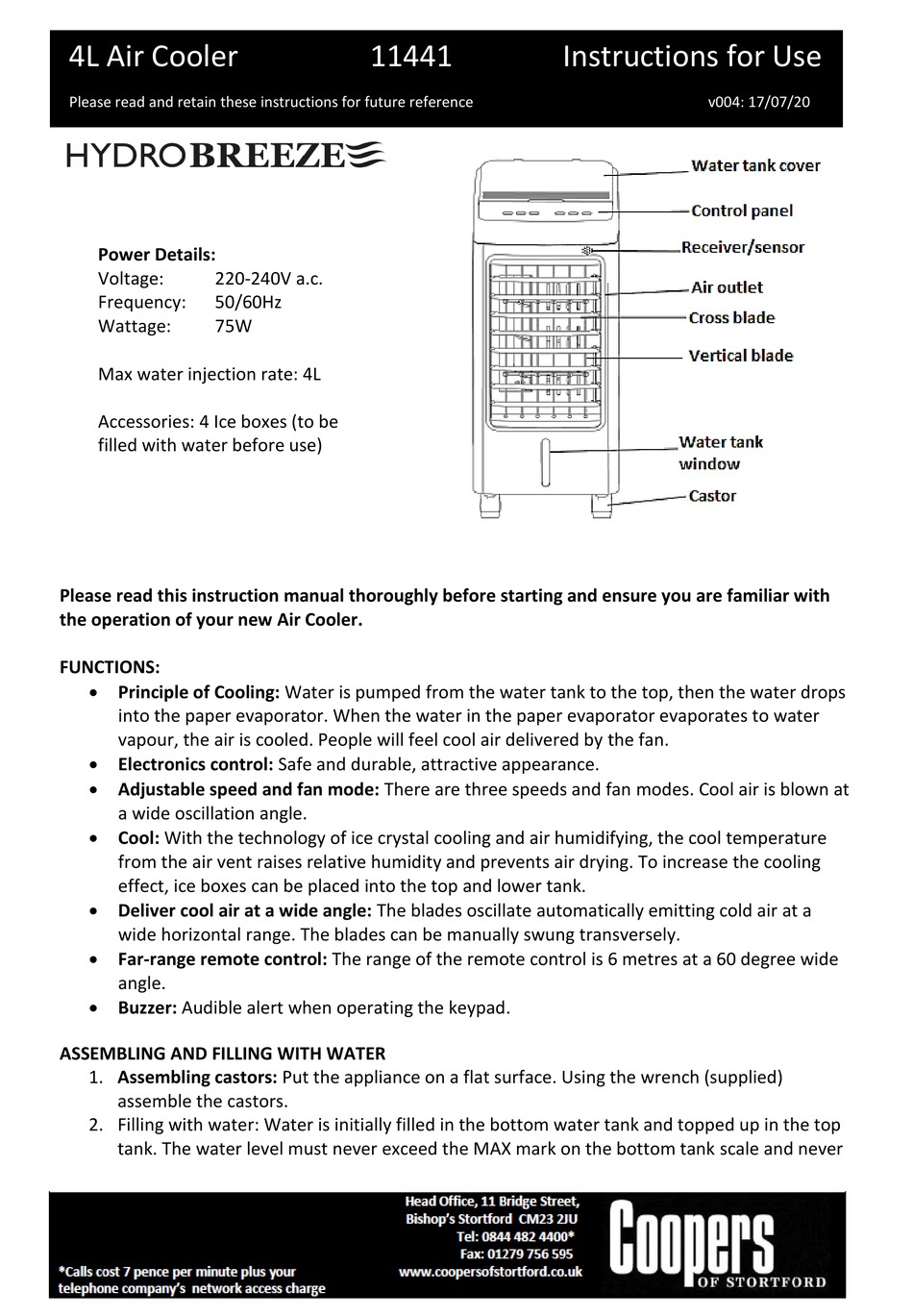

Coopers of Stortford HydroBreeze 11441 Instructions For Use Manual

4L Air Cooler
Please read and retain these instructions for future reference

Power Details:

Voltage: 220-240V a.c.
Frequency: 50/60Hz
Wattage: 75W
Max water injection rate: 4L
Accessories: 4 Ice boxes (to be
filled with water before use)
Please read this instruction manual thoroughly before starting and ensure you are familiar with
the operation of your new Air Cooler.

FUNCTIONS:

 Principle of Cooling: Water is pumped from the water tank to the top, then the water drops
into the paper evaporator. When the water in the paper evaporator evaporates to water
vapour, the air is cooled. People will feel cool air delivered by the fan.
 Electronics control: Safe and durable, attractive appearance.
 Adjustable speed and fan mode: There are three speeds and fan modes. Cool air is blown at
a wide oscillation angle.
 Cool: With the technology of ice crystal cooling and air humidifying, the cool temperature
from the air vent raises relative humidity and prevents air drying. To increase the cooling
effect, ice boxes can be placed into the top and lower tank.
 Deliver cool air at a wide angle: The blades oscillate automatically emitting cold air at a
wide horizontal range. The blades can be manually swung transversely.
 Far-range remote control: The range of the remote control is 6 metres at a 60 degree wide
angle.
 Buzzer: Audible alert when operating the keypad.

ASSEMBLING AND FILLING WITH WATER

1. Assembling castors: Put the appliance on a flat surface. Using the wrench (supplied)
assemble the castors.
2. Filling with water: Water is initially filled in the bottom water tank and topped up in the top
tank. The water level must never exceed the MAX mark on the bottom tank scale and never
11441 Instructions for Use
v004: 17/07/20
