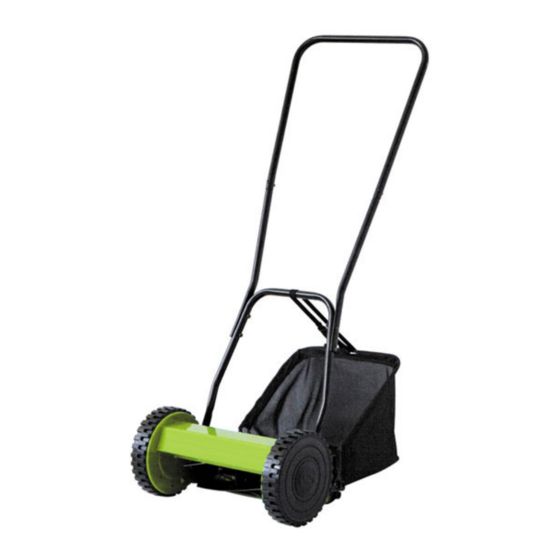

- Page 1 Hand Push Mower (EQ751) Assembly Instructions Please Read All Instructions Thoroughly Before Starting Assembly...
- Page 2 Components 1) Upper Handle 5) Blade Guard 2) Handle Uprights 6) Rear Roller 3) Lower Handle 7) Height Adjustment Knobs 4) Wheels 8) Cutting Bar Adjustment Nuts...
-
Page 3: Technical Specifications
Technical Specifications Cutting Widtch: 30cm Grass Collector Capacity: Cutting Height Adjustment: 14 - 47mm Machine Weight: 6.4kg (Specifications are subject to change without notice) Symbols Read this instruction manual carefully before using the hand push mower. Keep bystanders away. Always use protective goggles when mowing. Always wear safety footwear when mowing. -
Page 4: Saftey Instructions
Saftey Instructions WARNING! When using this product basic safety precautions should always be followed. Failure to follow all instructions listed below may result in personal injury. Read all these instructions before attempting to operate this product and SAVE THESE INSTRUCTIONS. 1) KEEP OUT OF THE REACH OF CHILDREN. - Page 5 General Saftey Rules Preparation 1) While using the hand push mower always wear substantial footwear and long trousers. Do not operate the product when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties. 2) Always use protective gloves and goggles when mowing.
- Page 6 Assembly The Hand Push Mower is designed for small to medium sized gardens and intended for household lawn mowing use only. The product comes partly pre-assembled, only the handle and grass collector require assembly. Please read all instructions carefully and keep outer packaging to refer to photograph of finished product in case of difficulty.
- Page 7 Assembly Find the U-shape bar (Part 3 – Lower handle) with flattened ends with large holes. Insert the bent end of the bar between the two protruding ends of the section just assembled. Line up the two holes on both sides and insert a bolt (Part 10) all the way through both bars and fasten with a nut (Part 12).
- Page 8 Assembly Assemble For Grass Collector 1) Locate the fixing holes of grass collector (Part 9) and hang on the hooks at the back of mower head. (See Fig. H,I) 2) Make sure the grass collector (Part 9) is securely fixed on mower head. 3) Attach the grass collector strap (Part 13) to hold the grass collector on lower handle (Part 3).
-
Page 9: Proper Usage
Proper Usage How To Mow Walk at a Good, Steady Pace With a hand lawn mower, the rotation of the wheels turns the blade reel. The mower will tend to bind up and skid if it is moving at too slow a pace. The faster the wheels are traveling, the faster the blade reel turns. -
Page 10: Sharpening The Blade
Sharpening The Blade WARNING! KEEP OUT OF THE REACH OF CHILDREN. This product contains a functional sharp edge which may cause injury if misused. Please take care when handling. Always wear thick gloves when handling blades or working near blades. Please make sure blade is securely affixed on mower before used. WARNING! It is strongly recommended the blade sharpening should be arranged by the service agent or similarly qualified persons in order to avoid a safety hazard. -
Page 11: Care And Maintenance
Care & Maintenance 1) Keep all nuts, bolts and screws tight to be sure the mower is in a safe working condition. 2) Replace worn or damaged parts for safety 3) Be careful during adjustments of the hand lawn mower to prevent entrapment of the fingers between moving blade and fixed parts of the machine. -
Page 12: Troubleshooting
Troubleshooting Trouble Possible Cause Remedy Adnormal Noise, Screws on the cutting Tighten bolts & nuts Lawnmower Rattles equipment or housing is loose Lawn turning yellow, Blade is too blunt Sharpening the blade (it is cut not clean recommended the blade sharpenin should be arranged by the service agent or similarly qualified... - Page 13 Please Retain Instructions For Future Use J.D. WILLIAMS & CO. LTD 40 LEVER STREET, MANCHESTER, UK, M60 6ES...
