DTS
Dosing tank station
Installation and operating instructions
Further languages
http://net.grundfos.com/qr/i/98446198
GRUNDFOS INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundfos DTS

Summary of Contents for Grundfos DTS

  • Page 1 GRUNDFOS INSTRUCTIONS Dosing tank station Installation and operating instructions Further languages http://net.grundfos.com/qr/i/98446198...

  • Page 2: Table Of Contents

    These installation and operating instructions, along with the Page relevant component instructions, contain all the information Safety instructions needed to commission and operate the DTS dosing tank station. Purpose of this manual If you require further information or should problems arise which Identification of notices...

  • Page 3: Safety Notices For Maintenance, Inspection And Installation Work

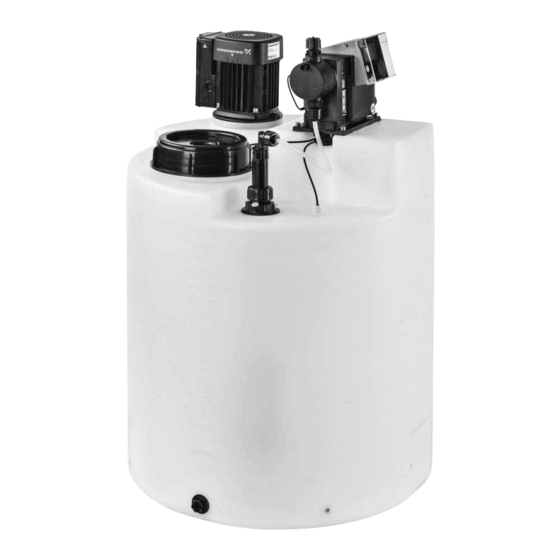

    1.5 Safety notices for maintenance, inspection and 2. Product introduction installation work DTS dosing tank stations comprise of a tank with optional The operating company must ensure that all maintenance, equipment and optional preparation for the specified Grundfos inspection and installation work is carried out by authorised, dosing pump, see 2.2.2 Type...
  • Page 4 2.2.2 Type key Example T 1 0 3 4 RE E 4 A 1 H Product type Multi-function valve Dosing Tank Station Without Multi-function valve PV/V Tank size Multi-function valve PV/E 60 litres Multi-function valve PV/T 100 litres 200 litres Filling device 300 litres Without...

  • Page 5: Technical Data

    Thin (max. 200 mPas), non-explosive dosing media without abrasive or long-fibre components. The dosing medium must not Fig. 2 Dosing tank station 60 / 100 l chemically attack the materials of the DTS dosing tank station. 3.1.2 Components Pump type For the below mentioned operating conditions, refer...
  • Page 6 Fig. 3 Dosing tank station 200 / 300 l Fig. 4 Dosing tank station 500 l...
  • Page 7 1080 Fig. 5 Dosing tank station 1000 l Measurements in mm...

  • Page 8: Materials In Contact With Media

    3.5 Materials in contact with media 10.4 7 (7.1, 7.2, 7.3, 7.4) 10 (10.1, 10.2, 10.3) 3.2.1 4 (4.3) 5.1.5 5.1.4 5.2.5 (5.1.1) 5.2.4 5.2.1 3.2.2 5.2.2, 5.2.3 5.1.2, 5.1.3 Fig. 6 Components that come into contact with media Pos. Description Material Pos.

  • Page 9: Structure And Function

    4. Structure and function 4.1.2 Components of a DTS dosing tank station 4.1 Product overview DTS dosing tank stations can comprise the following modules (selection depending on model key): • Chemically resistant tank – UV-stabilised semi-transparent or black PE – 6 sizes between 60 and 1000 litres –...

  • Page 10: Commissioning

    Overflowing dosing medium must always be returned 5.1 Transport and storage to a tank. Do not throw or drop the DTS dosing tank station. • Media such as peracetic acid and hydrogen Caution peroxide must be returned to a separate tank.

  • Page 11: Tightness Check

    5.3 Tightness check 6. Operation 1. Before filling the dosing tank, check that the following The dosing tank is not operated. Within the system, it simply requirements are fulfilled: serves as a reservoir for storage and dosing of the medium. –...

  • Page 12: Accessories, Spare Parts

    10. Appendix 10.1 Documentation enclosed The DTS dosing tank station is supplied together with the DTS installation and operating instructions. Depending on the scope of supply, separate installation and operating instructions are provided for the following components: •...
  • Page 13 GB: EU declaration of conformity CZ: Prohlášení o shodě EU We, Grundfos, declare under our sole responsibility that the product DTS My firma Grundfos prohlašujeme na svou plnou odpovědnost, že výrobek with electric stirrers, to which the declaration below relates, is in DTS s elektrická...
  • Page 14 Declaration of conformity EAC Установки дозировочные типа DTS сертифицированы на соответствие требованиям Технических регламентов Таможенного союза: ТР ТС 004/2011 «О безопасности низковольтного оборудования»; ТР ТС 010/2011 «О безопасности машин и оборудования»; ТР ТС 020/2011 «Электромагнитная совместимость технических средств». Сертификат соответствия: №...
