INSTRUCTION MANUAL 1062............................................................. 2
Advice and service .............................................................................. 8
©BÜRKERT 1995 893070 - Ind**/Fév01
We reserve the right to make technical changes without notice
1062
-1-
1062
Advertisement
Related Manuals for Burkert 1062
Summary of Contents for Burkert 1062

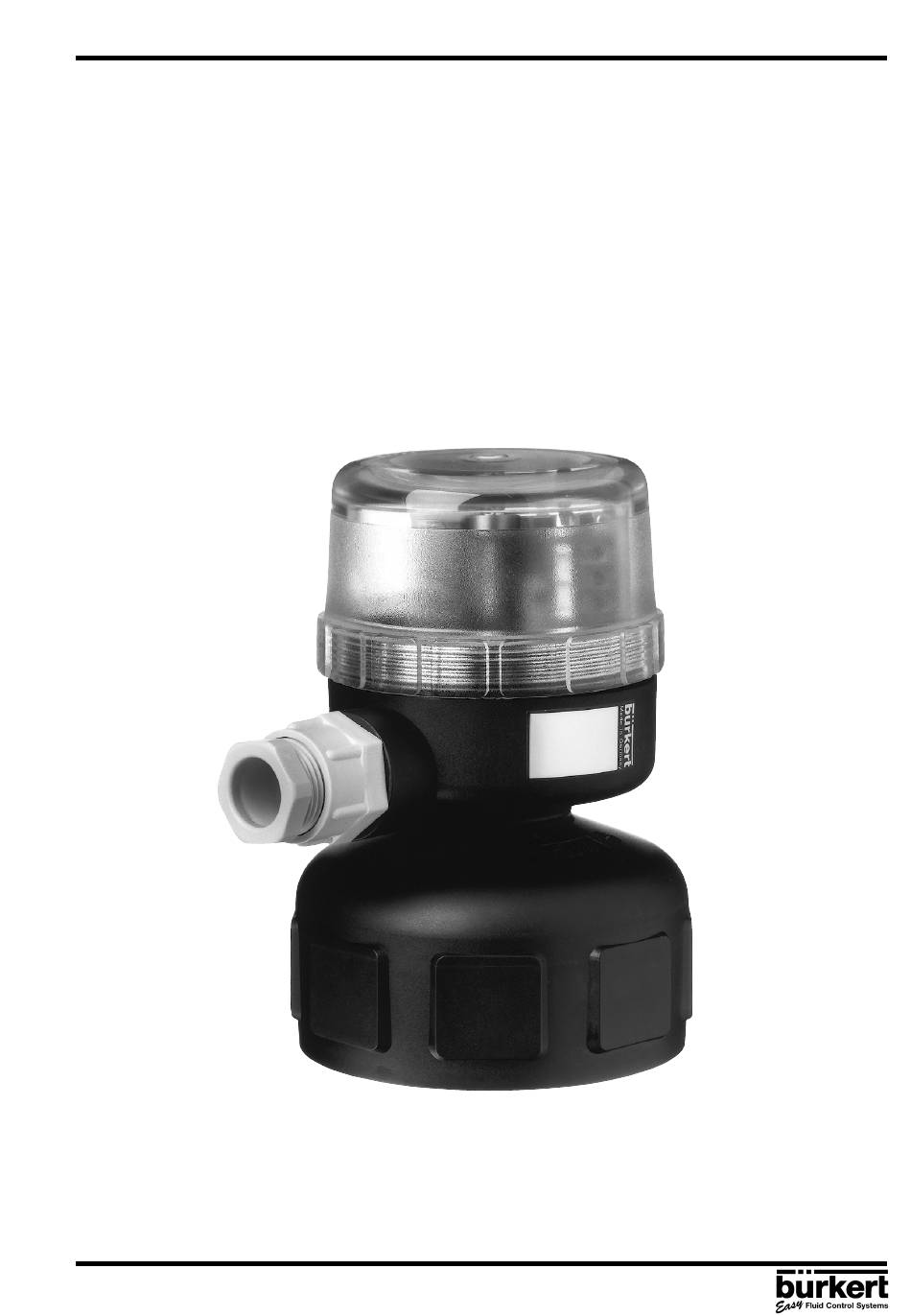

- Page 1 1062 INSTRUCTION MANUAL 1062............. 2 Advice and service ................8 ©BÜRKERT 1995 893070 - Ind**/Fév01 We reserve the right to make technical changes without notice 1062...

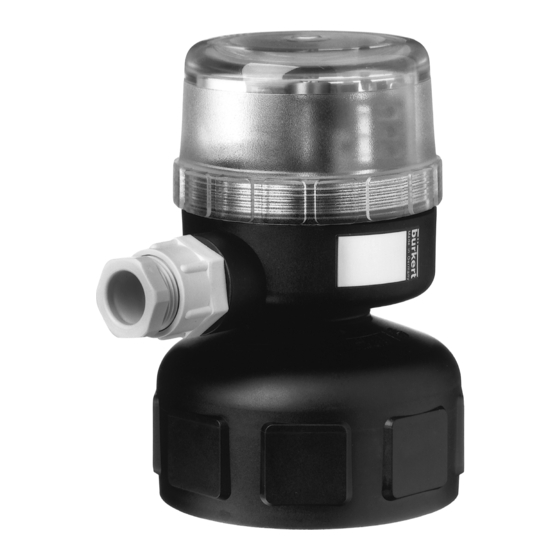

- Page 2 125 V Specific Use 250 V The position indicator 1062 is designed for use to 24 V = electrical position feedback and optical position 30 V = indication. It can be fitted with the Bürkert valves...
-
Page 3: Assembling Instructions
(The valve shall be pressurized during the entire installation time). Unscrew transparent cover Unscrew signal cover with Allen key. • • Only valve 2031 with C (40 mm) actuator: Remove cover then indicator supplied with the 1062. Install cover 1062... - Page 4 POSITION FEEDBACK 1062 1062 Version Plug • • Connect guiding piece of spindle into valve cover Fasten spindle with the valve spindle • • Carefully place body upon guiding piece , rotate into required direction and fix with grub screw...
- Page 5 POSITION FEEDBACK 1062 1062 Version Plug • Unscrew cover • Pull cable through PG cable gland , peel-off 100 mm from the cable and connect according to wiring diagram (see next page). Green Yellow • Install cable into guide on bottom...
-
Page 6: Open Position
POSITION FEEDBACK 1062 Connection inductive limit switch Inductive 2 wires Inductive 2 wires Position Position Open/Closed Open/Closed 1062 1062 I load ≤ 100 mA I load ≤ 100 mA Closed Position Open Position NPN 3 wires NPN 3 wires Closed Position... - Page 7 POSITION FEEDBACK 1062 Connection inductive limit switch NAMUR Open Position Closed Position Connector according Connector according NAMUR NAMUR DIN 19234 NAMUR DIN 19234 NAMUR Ex i Ex i Cushioned ≤ 1 mA Cushioned ≤ 1 mA Uncushioned > 3 mA Uncushioned >...
- Page 8 SERVICE Australia France Japan Sweden Bürkert Contromatic AB Burkert Fluid Control Systems Bürkert Contromatic Bürkert Contromatic Ltd. Unit 1 No.2, Welder Road B.P. 21 1-8-5 Asagaya Minimi Skeppsbron 13 B S-21120 Malmö Seven Hills NSW 2147 Triembach au Val Suginami-ku Tel +61 (0) 2 967 461 66 F-67220 Villé...
