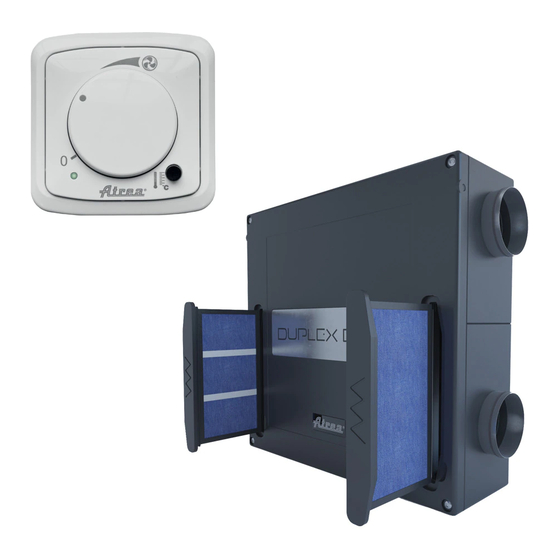

Disassembling manual
Separate part of the ventilation unit (RVU)
DUPLEX EC/ECV/EASY/R_X
ATREA s.r.o.
Československé armády 32
466 05 Jablonec nad Nisou
Česká republika
tel.: (+420) 483 368 111
fax: (+420) 483 368 112
e-mail: atrea@atrea.cz
www.atrea.cz
Version: 01
Date in force: 22. 12. 2015
Code: R_25_V01_CZ_2015_12
EN
ATREA SK s. r. o.
Družstevná 2
945 01 Komárno
Slovensko
tel: +421 (35) 774 28 15
fax: +421 (35) 774 28 16
e-mail: atrea@atrea.sk
www.atrea.sk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ATREA DUPLEX EC Series
Summary of Contents for ATREA DUPLEX EC Series
- Page 1 Date in force: 22. 12. 2015 Code: R_25_V01_CZ_2015_12 Disassembling manual Separate part of the ventilation unit (RVU) DUPLEX EC/ECV/EASY/R_X ATREA s.r.o. ATREA SK s. r. o. Československé armády 32 Družstevná 2 466 05 Jablonec nad Nisou 945 01 Komárno Česká republika Slovensko tel.: (+420) 483 368 111...
- Page 2 Information according to ANNEX V of COMMISSION REGULATION (EU) No 1253, 1254/2014. Information requirements for RVUs as referred to in Article 4(2), point 3.
- Page 3 The part of the unit with photo Description and disassembling Tools description Fan EBM-PAPST 104.EC1 Unit type: EASY 400; EC4 370; ECV4 390; RA4; RB4; RK4 Description: Use a wrench to remove fan from unit. Disconnect supply connector. Use a TORX to separate semi spiral casing from the motor Tools: Side wrench, wrench TORX 105.EC1...
- Page 4 Build-in Regulation Unit type : EASY 250; EASY 300; EASY 400; EC4 180; regulation module EC4 370; EC4 510; ECV4 190; ECV4 390; ECV4 520; RA4; module RB4; RK4; RDH4 Description: Use a screwdriver to remove the cover. Use a screwdriver or TORX for remove the board from basement.
- Page 5 CP 10 RT Unit type : EC5 200; EC5 380; EC5 570; ECV5 220; ECV5 370; ECV5 550 Description: Disassemble the plastic frame to get access to a printed circuit board and battery - no tools needed. Use a screwdriver to remove the back part of controller Tools : hand lock, Screwdriver Note: ………………………………………………………………………………………………………………………………………….
