- Page 1 Audi A4-A001 TUTORIAL www.aurodiag.com...
-
Page 2: Disclaimer Of Warranties And Limitation Of Liabilities
Any action you take upon the information from this manual is strictly at your own risk, Auro will not be liable for any direct damages or for any special, incidental, or indirect damages or for any economic consequential damages (including lost profits). -
Page 3: Safety Information
Safety Instructions The safety messages herein cover situations Auro is aware of. Auro cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any... - Page 4 DANGER When an engine is operating, keep the service area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon mo oxide, an odorless, poisonous gas that causes slower reaction time and can lead to serious personal injury or loss of life.
-
Page 5: Table Of Contents
CONTENTS ........................i RADEMARKS ....................i OPYRIGHT NFORMATION ..........i ISCLAIMER OF ARRANTIES AND IMITATION OF IABILITIES ....................i ERVICES AND UPPORT ......................ii AFETY NFORMATION ......................ii AFETY ESSAGES ....................... ii AFETY NSTRUCTIONS INTRODUCTION ........................1 ..................1 EARNING VIA XPERT... -
Page 6: Introduction

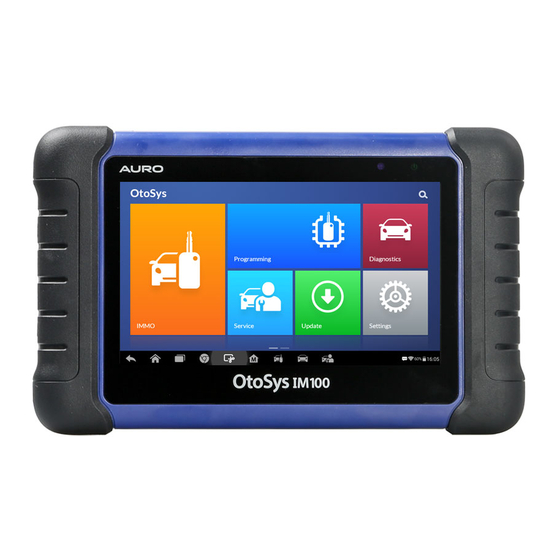

Introduction This manual introduces how to conduct 2008 Audi A4 key learning with Auro OtoSys IM100 Expert Mode. User can make selections step by step to locate the IMMO part. Procedures before getting started: Connect the IM100 tablet to the test vehicle via the included main cable. - Page 7 Figure 2 Sample OtoSys Screen Tap Audi on the vehicle menu, then the Function Select screen displays. Select Expert Mode. Connect the IM100 tablet to WiFi. NOTE You can click on the pen icon near the top-right corner to record the operation data. If you encounter any difficulties, click on the pen icon again to send us the data and problems, so that our engineers could help.
- Page 8 Figure 4 Sample Function Select Screen Tap Instrument K-Line > Audi A4 BOSCH RB8 CRYPTO 2004+. The Function Menu displays. Figure 5 Sample Function Menu Tap Read IMMO data to read the vehicle anti-theft information. Then tap OK to continue.
- Page 9 Figure 6 Sample Vehicle Anti-theft Information Screen Tap Make dealer key in the function menu and follow the instructions to put the Blank Key in the key slot of the UP200. Tap OK to continue. The screen displays “Make dealer key success” when it is successfully completed. NOTE Only one dealer key can be made at one session.
- Page 10 Figure 8 Sample Information Screen Figure 9 Sample Information Screen Tap Key Learning on the Function Menu. Input the number of keys that need to be learned and follow the onscreen instructions to continue. NOTE The number should be the sum of existing working keys brought with you and the new keys you need.
- Page 11 Figure 10 Sample Function Menu Screen Figure 11 Sample Input Key Number Screen Figure 12 Sample Information Screen...
- Page 12 Turn the ignition off and insert the keys that need to be learned one by one and turn ignition back on for about 2 seconds. The screen displays “Key learning completed” in the end, tap OK to complete the process. Figure 13 Sample Information Screen Figure 14 Sample Information Screen NOTE...
