EDILGRAPPA 230DE T10 Use And Maintenance Instructions

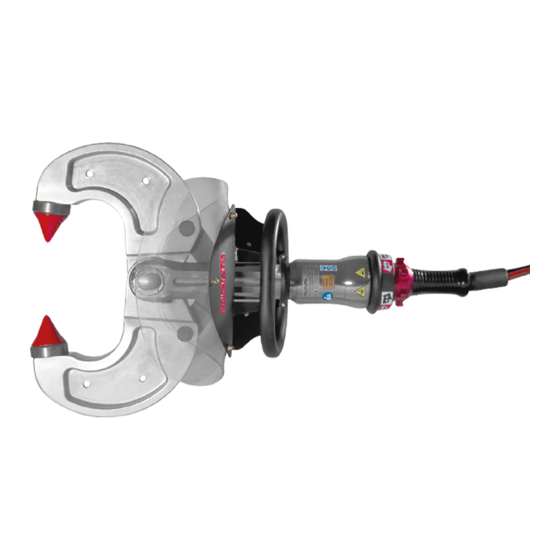

Concrete crusher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2
MANUAL
CONCRETE CRUSHER 230DE T10
USE AND MAINTENANCE
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 230DE T10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EDILGRAPPA 230DE T10

Summary of Contents for EDILGRAPPA 230DE T10

  • Page 1 MANUAL CONCRETE CRUSHER 230DE T10 USE AND MAINTENANCE INSTRUCTIONS...
  • Page 3 HYDRAULIC TOOLS ITEM CONCRETE CRUSHER 230DE T10 1.50.2237 NOTE FOR THE USER: THE USE OF THIS MACHINE IS ALLOWED PROVIDED IT IS CONNECTED TO A 2006/42/EC HYDRAULIC POWER UNIT COMPLIANT WITH THE DIRECTIVE AND WITH LEGISLATION IN FORCE AND IS SUITABLE FOR THE TECHNICAL FEATURES...

  • Page 4: Table Of Contents

    INDEX 0 SAFETY AND DANGER STICKERS - CE PLATE ..............5 0.01 LIST OF ACCESSORIES SUPPLIED WITH THE TOOL ........ 6 1 TECHNICAL FEATURES ....................7 1.01DESCRIPTION ...................... 7 1.02 TECHNICAL FEATURES ..................7 2 DELIVERY AND HANDLING ..................8 2.01 HANDLING, TRANSPORT AND LIFTING ............

  • Page 5: Safety And Danger Stickers - Ce Plate

    SAFETY AND DANGER STICKERS - CE PLATE CAUTION!! FIRST READ PART 1 OF THE MANUAL REGARDING THE GENERAL AND SAFETY REGULATIONS! Position of plate and safety and danger stickers on the machine...

  • Page 6: List Of Accessories Supplied With The Tool

    Observe the warnings on the plates and stickers. Failure to do so could lead to injury or death. Make sure the plates and stickers are attached and legible. If not, apply them or request the maker for replacements. 0.01 LIST OF ACCESSORIES SUPPLIED WITH THE TOOL ...

  • Page 7: Technical Features

    1 TECHNICAL FEATURES 1.01DESCRIPTION The machine mainly consists of a stem actuator (piston) activated by pressurised oil delivered by a hydraulic power unit. Figure 1 shows the main parts of the equipment, in particular Cylinder; Jaws; Tips: Handle; Mechanically activated grip; Twin hose with quick couplings;...

  • Page 8: Delivery And Handling

    In the event of damage, send a written complaint to the forwarder within 8 days of receipt. Promptly inform Edilgrappa s.r.l. if major damage, caused during transport, is found upon receipt, or if any parts are missing. It is also necessary to check the delivered materials against the detailed...

  • Page 9: Handling, Transport And Lifting

    2.01 HANDLING, TRANSPORT AND LIFTING The machine handling can be easily performed by gripping the machine itself by its special grip and handle. Handling for long distances:  Fix the crusher onto a pallet and handle it with the aid of a forklift truck or a pallet truck in order to load it onto the means of transport (truck, train, etc...).

  • Page 10: Hydraulic Connection

    3.02 HYDRAULIC CONNECTION To connect the crusher to the hydraulic power unit insert the quick coupling hoses (see below) into the special attachments on the power unit. After connecting the hoses, activate the crusher 5-6 times and check for any oil leaks. CAUTION Residual risk of burns: hydraulic oil, hoses and fittings can reach very high temperatures with or without the cylinder applied.
  • Page 11 Fig. 2 DISCONNECTION: For disconnecting quick couplings, proceed as follows (for references see fig. 2A):  Make sure there is no residual pressure in the hydraulic circuit; otherwise, discharge the pressure according to the instructions of the power unit manufacturer contained in the relevant Use and maintenance manual. ...
  • Page 12 Fig. 2A CAUTION After disconnecting the hoses, apply the anti-dust plugs to prevent impurities from entering and protect the quick couplings.

  • Page 13: Use

    4 USE Controlled demolition crushers are designed to demolish concrete or brick walls depending on the specific piece of equipment used for the dimensions indicated in the technical characteristics, minimising noise, dust, vibrations and/or percussions. ² The CRUSHER 230-DE T10 demolishes concrete walls (R=325 kg/cm ) with the maximum dimensions indicated in the technical specifications.
  • Page 14 Move it in the opposite direction “OPEN” to open the jaws and return to the original position (see fig. 4). Make sure the actuation flange stops in the neutral position. This position can be recognised by the alignment of the reference sign on the actuation flange with the reference sign on the handle (see ref.

  • Page 15: Routine Maintenance

    5 ROUTINE MAINTENANCE All maintenance, inspection and cleaning interventions on the machine must be performed with the machine disconnected from the hydraulic power unit and cold (see the person in charge in the maintenance intervals table); Maintenance operations must be performed in a suitable place according to current safety regulations;...

  • Page 16: Cleaning The Machine

     In case of doubts during the maintenance interventions, to order spare parts or for complex maintenance work, contact your authorised retailer. 5.01 CLEANING THE MACHINE The cleaning operations must be performed using a dry cloth or compressed air. For plastic surfaces the use of a cloth slightly dampened with water is allowed.

  • Page 17: Problems And Remedies

    6 PROBLEMS AND REMEDIES The aim of this paragraph is to provide the user with the solutions to the problems (faults) which occur most frequently. Do not perform any maintenance or repair interventions which could compromise the safety of the machine. The remedies marked by the letter P require the intervention of authorised personnel.

  • Page 18: Storage And Re-Commissioning

    7 STORAGE AND RE-COMMISSIONING 7.01 STORAGE In case of long periods of inactivity, proceed as follows: Store the equipment in a clean and dry place accessible only to authorised personnel. Thoroughly clean the tool; Lubricate it with a thin layer of oil. 7.02 RE-COMMISSIONING Before re-commissioning the machine after a long period of inactivity, perform the following checks:...

  • Page 19: Spare Parts And Accessories Catalogue

    9 SPARE PARTS AND ACCESSORIES CATALOGUE 9.01 ORDER INSTRUCTIONS For technical assistance and spare parts also after the warranty period, inform the manufacturer of the identification data shown on the nameplate and the serial number printed on the crusher body. Orders for spare parts must be accompanied by the following information: Type of equipment Serial number...
  • Page 20 Function: Demolition of concrete items with a maximum thickness of 230 Type: Crusher Model: 230DE T10 Commercial name: CONCRETE CRUSHER 230DE T10 Serial number: ________________ Year of construction: ________________ DECLARES THAT THE ABOVE-MENTIONED EQUIPMENT IS COMPLIANT WITH THE FOLLOWING DIRECTIVES: Machinery Directive 2006/42/EC (Proc.
  • Page 21 NOTES...
  • Page 24 MACHINES AND EQUIPMENT FOR THE BUILDING TRADE, INDUSTRY AND RESCUE 31030 BORSO DEL GRAPPA (TV) - ITALY - Via Callesello, 4 Tel. 0423 910122 – Fax 0423 542122 E-mail: cut@edilgrappa.com http: //www.edilgrappa.com...
