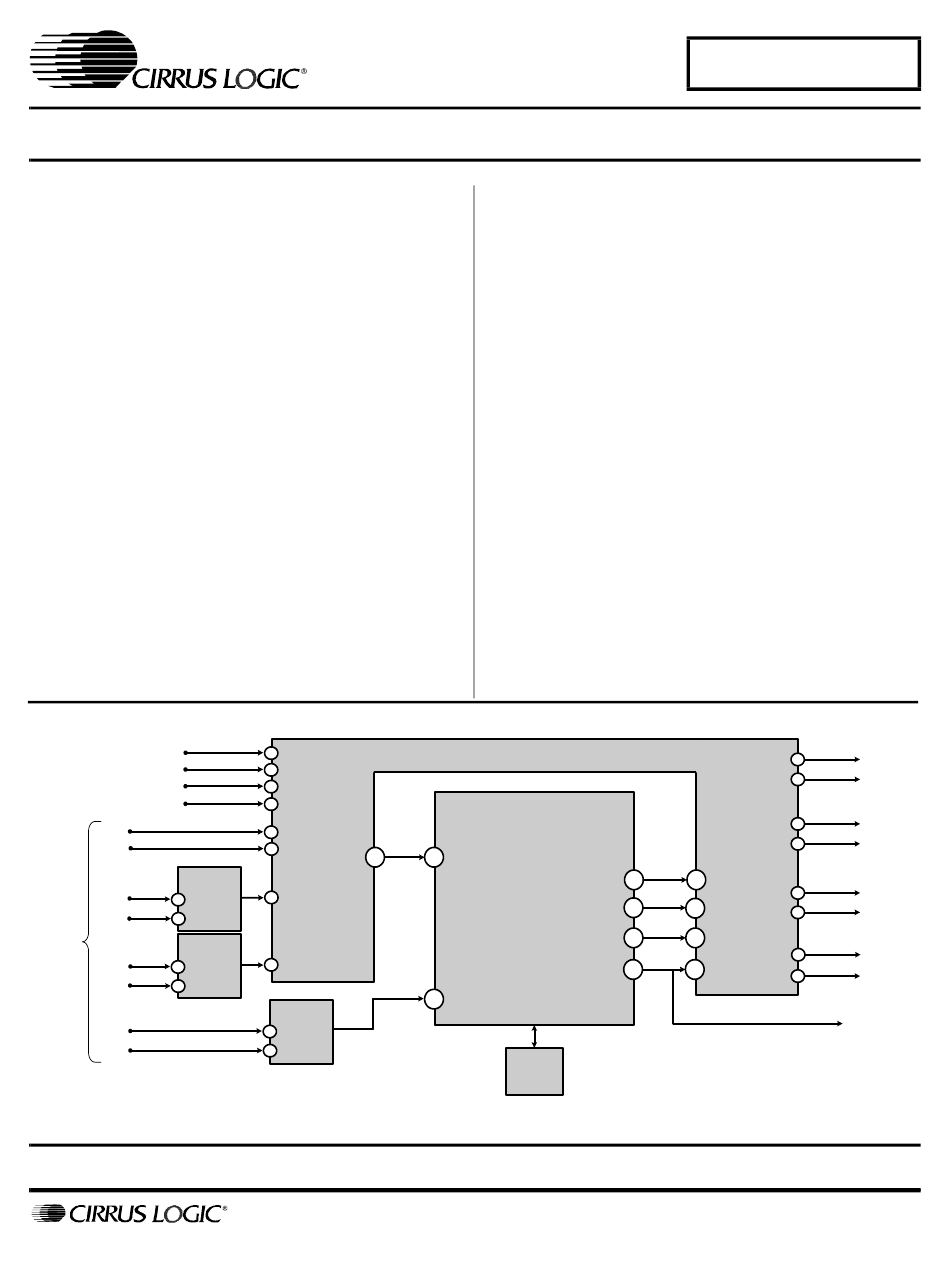

Reference Design for the CS49300 and CS42528
Features
Supports 4 digital S/PDIF
(IEC60958/IEC61937) inputs
8 Discrete analog inputs using the CS42528
+ 3 external CS5351 ADCs for 8 analog
channels of input at 48 kHz and 96 kHz
2 Channel upsampling supported
8 Discrete analog outputs from the CS42528
2 Digital S/PDIF (IEC60958/IEC61937)
outputs using the CS42528 Mux and
XMT958 transmitter on the CS49300
On board SRAM for AAC 5.1 discrete
channel decoding
In system programmable Flash, capable of
holding 16 DSP programs
4 x
SPDIF
L
R
CS5351
Ls
AIN
Rs
8 x
CS5351
ANALOG
C
AIN
Sub
SBL
SBR
Preliminary Product Information
http://www.cirrus.com
RXP0
RXP1
RXP2
RXP3
AIN
SAI
SDOUT
Ext ADC
In
SDOUT
CS5351
SDOUT
AIN
Description
The CRD42528 is a reference design for the CS49300
DSP family and the CS42528 CODEC. It supports up to
8 channels of analog input at 48 and 96 kHz, or
2 channels of analog input at 192 kHz. One of four
digital S/PDIF inputs may be selected. Additionally, up
to 2 channels of digital S/PDIF output and 8 channels of
analog output at up to 192 kHz are supported. The on
board SRAM is included to allow for AAC 5.1 discrete
channel decoding, and on-board flash memory is
included to allow in-system programming of up to
16 DSP images. The DSP supports the following
algorithms, including (but not limited to) AAC, Dolby
Digital (AC-3), Dolby Digital EX, DTS, DTS-ES, DTS
Neo:6, Cirrus Original Surround (including COS 6.1),
SRS CircleSurround, SRS TruSurround, Pro Logic II,
MPEG Multichannel (including EX), and HDCD.
The control interface to the CRD42528 is the UDSP
System Platform. All control and data I/O is connected
to headers, which allows the CRD42528 to be used
easily in a end system or as a reference design. A larger
block diagram is shown on the next page.
ORDERING INFORMATION
CRD42528
CS42528
CS493XX-IBA
(or CS492XX)
CDI
DAI
EMAD
External
SRAM/Flash
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Copyright  Cirrus Logic, Inc. 2003
(All Rights Reserved)
CRD42528
Reference Design
AOUT1
AOUT2
AOUT3
AOUT4
AUDATA0
CX_SDIN1
AOUT5
AUDATA1
CX_SDIN2
AOUT6
CX_SDIN3
AUDATA2
AOUT7
CX_SDIN4
AUDATA3
AOUT8
L
R
Ls
Rs
C
Sub
SBL / Lt
SBR / Rt
IEC60958
MAY' 03
DS586RD2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS49300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cirrus Logic CS49300

  • Page 1 EMAD IEC60958 SDOUT External SRAM/Flash This document contains information for a new product. Preliminary Product Information Cirrus Logic reserves the right to modify this product without notice. MAY’ 03 Copyright  Cirrus Logic, Inc. 2003 DS586RD2 http://www.cirrus.com (All Rights Reserved)
  • Page 2: Figure 1. Block Diagram Of The Crd42528

    CS42528 RXP0 AOUT1 RXP1 AOUT2 RXP2 SPDIF RXP3 CS493XX-IBA AOUT3 (or CS492XX) AOUT4 CS5351 AUDATA0 CX_SDIN1 AOUT5 SDOUT AUDATA1 CX_SDIN2 AOUT6 Ext ADC CX_SDIN3 AUDATA2 CS5351 ANALOG AOUT7 SBL / Lt SDOUT CX_SDIN4 AUDATA3 SBR / Rt AOUT8 CS5351 EMAD IEC60958 SDOUT External...
  • Page 3: Table Of Contents

    ATTORNEYS' FEES AND COSTS, THAT MAY RESULT FROM OR ARISE IN CONNECTIO N WITH THESE USES. Cirrus Logic, Cirrus, and the Cirrus Logic logo designs are trademarks of Cirrus Logic, Inc. All other brand and product names in this docum ent may be trademarks or service marks of their respective owners.
  • Page 4 Figure 5. Clock and Data Connections for S/PDIF (IEC61937 / IEC60958) Input ......11 Figure 6. Control and Data I/O ...................... 16 Figure 7. DSP..........................17 Figure 8. External Memory ......................18 Figure 9. CoDec ..........................19 Figure 10. External A/D Converters ....................20 Figure 11.
  • Page 5: Quick Start

    7) Open a DOS window and navigate to the 2) Connect the supplied parallel port cable to J46 C:\CS49300\CRD42528\Configs directory. on the UDSP MainBoard (marked P PORT) 8) Type in “setpld -r 99” on the DOS prompt.
  • Page 6 Various batch files Digital EX and DTS-ES) is available from your for the commonly used applications have been local Cirrus Logic, Inc. Field Applications En- supplied with the software. These batch files gineer. can be run from the DOS prompt like the Caution:Use caution while editing and making “analog_in_96kHz.bat”...
  • Page 7: Design Description

    DSP (either via host boot or autoboot). CS42528’s SAI port. In this way, the DSP gets the Please see the CS49300 datasheet for more details L, R, Ls, Rs, C, and Sub channels into it’s CDI port. on I C address checking.
  • Page 8: Assembly Options For Ease Of Manufacture

    Do Not Number of Mode Populate Populate Analog Input Do Not Channels Populate Populate R98, R99, R13, R14, R10, R12, R18, R100, 2 (L, R) R148, R149, U18, U33, U2, R16, R143 R144,R168, R150 Ls, Rs, C, Sub, R166 SBL and SBR Input Filters R13, R14, R98, R99,...
  • Page 9: Memory Options

    Figure There are many available applications that can run on the CS49300 family DSP. DSP applications re- quire a 32k-byte page in an external ROM, Flash, or other non-volatile storage. Some applications, called Internal Boot Assisted (IBA) codes, consist of a few hundred bytes of download firmware.
  • Page 10: Figure 4. Data And Clock Connections For 8 Channel Analog Input And Output

    CX Clocks (at 64 Fs SCLK, LRCLK=Fs) and data 4 Channels 2 Channels CS42528 ADCIN SAI Clocks(CS42528) / CDI Clocks(CS49300) at 128 Fs SCLK, LRCLK=Fs SAI Port 6 Channels SAI Data(CS42528) / CDI Data(CS49300) L / R Analog In CX Clocks(CS42528) / DAI Clocks(CS49300) at...
  • Page 11: Figure 5. Clock And Data Connections For S/Pdif (Iec61937 / Iec60958) Input

    CS49300 CS42528 SAI Clocks(CS42528) / CDI Clocks(CS49300) at 128 Fs SCLK, LRCLK=Fs 2 Channels SAI Port Compressed SAI Data(CS42528) / CDI Data(CS49300) S/PDIF (IEC61937 / IEC60958) CX Clocks(CS42528) / DAI Clocks(CS49300) at 64 Fs SCLK, LRCLK=Fs CX Port 8 Channels...
  • Page 12: Appendix A: Installation Of Board Control Software

    APPENDIX A: INSTALLATION OF BOARD CONTROL SOFTWARE ® ® The UDSP PC driver utility set comes in two Installation on Microsoft Windows 95 ® ® versions. The Direct Hardware version will , ME and other direct hardware capa- communicate directly with the PC’s parallel port to ®...
  • Page 13: Appendix B: Crd42528.Ini

    APPENDIX B: CRD42528.INI # Horizontal Fields: [part] [I2Caddr] [SPIaddr] [SPI CSn] [reset(bit to drop in PLD addr 0x01)] [INTREQ_NUM] [Print Format] #[Parallel word length] [Parallel CSn] #[Read_Type] # Vertical Fields: #board - first non-comment, non-blank line #parts - other lines # note: reset can only take on values 01,02 # Default is CS4930 interface # INTREQ_NUM is the bit position within the INT register in the PLD...
  • Page 14: Appendix C: Board Control Software

    APPENDIX C: BOARD CONTROL SOFTWARE There is a suite of programs used to control the communication mode by default, and that is also UDSP from a PC DOS command line. the default mode for the software. These software tools are designed to so that they The usage of each program will vary, depending on can be scripted using the MS-DOS batch language.
  • Page 15 URD.exe - Program used to read back responses from a target device. If a DSP-type device is selected and the INTREQ pin is not low when URD.exe is executed, the program will wait until INTREQ drops. Press the ‘Enter’ key to exit the read wait loop. Usage: urd [-dZZZZ..] [-mY] [-pXXX] [-v] [-h] -d = device ZZZZ = device designator, eg dspab, dspc, 8415a, etc.
  • Page 16: Appendix D: Schematics

    APPENDIX D: SCHEMATICS Figure 6. Control and Data I/O...
  • Page 17: Figure 7. Dsp

    Figure 7. DSP...
  • Page 18: Figure 8. External Memory

    Figure 8. External Memory...
  • Page 19: Figure 9. Codec

    Figure 9. CoDec...
  • Page 20: Figure 10. External A/D Converters

    Figure 10. External A/D Converters...
  • Page 21: Figure 11. L/R Input Filters

    Figure 11. L/R Input Filters...
  • Page 22: Figure 12. Ls/Rs Input Filters

    Figure 12. Ls/Rs Input Filters...
  • Page 23: Figure 13. C/Sub Input Filters

    Figure 13. C/Sub Input Filters...
  • Page 24: Figure 14. Sbl/Sbr Input Filters

    Figure 14. SBL/SBR Input Filters...
  • Page 25: Figure 15. L/R Output Filters

    Figure 15. L/R Output Filters...
  • Page 26: Figure 16. Ls/Rs Output Filters

    Figure 16. Ls/Rs Output Filters...
  • Page 27: Figure 17. C/Sub Output Filters

    Figure 17. C/Sub Output Filters...
  • Page 28: Figure 18. Sbl/Sbr Output Filters

    Figure 18. SBL/SBR Output Filters...
  • Page 29: Appendix E: Layout Plots (Ground Plane Vias Are Flooded)

    APPENDIX E: LAYOUT PLOTS (GROUND PLANE VIAS ARE FLOODED) Figure 19. Top Layer...
  • Page 30: Figure 20. Bottom Layer

    Figure 20. Bottom Layer...
  • Page 31: Figure 21. Assembly Drawing

    Figure 21. Assembly Drawing...
  • Page 32: Appendix F: Bill Of Materials - Crd42528

    APPENDIX F: BILL OF MATERIALS - CRD42528 Item Reference Part Number Manufacturer Description Notes 5361A_SDAT 5361B_SDAT 5002 KEYSTONE TESTPOINT, SINGLE CX_LRCK CX_SCLK POST CX_SDIN1 CX_SDIN2 CX_SDIN3 CX_SDIN4 CX_SDOUT INT OMCK RMCK RST- SAI_LRCK SAI_SCLK SAI_SDOUT TP1 TP2 TP3 TP4 C1 C6 C34 C37 C44 C52 ECE-V1CA220SR PANASONIC CAP, 22uF, ELEC, VS...
  • Page 33 Item Reference Part Number Manufacturer Description Notes C1206C225K8RAC KEMET CAP, 2.2uF, X7R, 1206, 10V, 10%. C0805C221J5RAC KEMET CAP, 220PF, X7R, 0805, 50V, 5% C0805C103K5RAC KEMET CAP, 0.01UF, X7R, 0805, 50V, 10% C20 C56 C72 C89 C111 C0805C471J5GAC KEMET CAP, 470PF, COG, 0805, C117 C126 C140 C147 C156 50V, 5% ECE-VOJA470WR...
  • Page 34 Item Reference Part Number Manufacturer Description Notes J2 J3 87089-4016 MOLEX STAKE HEADER, 20X2, Install on second- 2MM PITCH ary side 87089-1417 MOLEX STAKE HEADER, 7X2, Install on second- 2MM PITCH ary side L1 L2 BLM21P300 MURATA FBEAD,0805,30- 100MHz,3AMPS Q2 Q3 Q4 Q5 Q8 Q11 Q12 2SC3326 TOSHIBA TRANSISTOR, NPN, EPI-...
  • Page 35 Item Reference Part Number Manufacturer Description Notes R11 R145 R151 R152 R153 CRCW0805103J VISHAY RES, 10K, 0805, 1/10W, R158 R159 R162 R164 5%. 200ppm R15 R34 R43 R52 R61 R70 CRCW08051651F DALE RES, 1.65K, 0805, 1/10W, R82 R91 1%. 100ppm R17 R19 R20 R76 R129 ERJ-6GEYJ330V PANASONIC...
  • Page 36 GERED D-TYPE FLIP- FLOPS WITH 3-STATE OUTPUTS, TSSOP20-173 SN74LVC245APW TEXAS INSTRU- IC, OCTAL BUS TRANS- MENTS INC CEIVER WITH 3-STATE OUTPUTS, TSSOP20-173 CS4252 CIRRUS LOGIC IC, ELVIS, QFP64, 10X10mm, 0.5mm PITCH CS493302-CL CIRRUS LOGIC IC, MULTI-STANDARD AUDIO DECODER, PLCC44 AT29LV040A-25JC ATMEL...
  • Page 37: Appendix G: Udsp Schematics

    APPENDIX G: UDSP SCHEMATICS AIO[16..1] PHONO JACK RA AIO11 AIO1 PHONO JACK RA AIO2 AIO1 AIO3 AIO4 AIO5 AIO6 MICROCONTROLLER 5V_MOSI CSn0 AIO7 5V_MOSI CSn0 5V_MISO CSn1 AIO8 5V_MISO CSn1 5V_SCK CSn2 AIO9 5V_SCK CSn2 CSn3 AIO10 PHONO JACK RA CSn3 AIO12 2V_MOSI...
  • Page 38: Figure 23. Udsp - Digital Audio Port

    22 RPACK8 pg(4) DAP_SDOUT[8..1] DAP_SDOUT1 DAP_SDOUT1_B DAP_SDOUT2 DAP_SDOUT2_B DAP_SDOUT3 DAP_SDOUT3_B DAP_SDOUT4 DAP_SDOUT4_B DAP_SDOUT5 DAP_SDOUT5_B DAP_SDOUT6 DAP_SDOUT6_B DAP_SDOUT7 DAP_SDOUT7_B DAP_SDOUT8 DAP_SDOUT8_B +5VD 0.1uf 74ACT541 +3.3V +2.5V HEADER 3X2 DAP VL SEL pg(4) DAP_MCLK pg(4) DAP_LRCLK pg(4) DAP_SCLK DAP_SDOUT1_B DAP_SDOUT2_B DAP_SDOUT3_B DAP_SDOUT4_B DAP_SDOUT5_B DAP_SDOUT6_B DAP_SDOUT7_B...
  • Page 39: Figure 24. Udsp - Headphone Amplifier

    pg(1) AIO[10..1] AIO1 AIO2 AIO3 AIO4 1uf/50 100uf/16 AIO5 +5VD HEADPHONE JACK AIO6 AIO7 AIO8 AIO9 VIN1 VOUT1 AIO10 1uf/50 VIN2 VOUT2 4.7k 100uf/16 HEADER 10X2 BYPASS CLOCK SHUTDWN UP/DWN 1uf/50 0.1uf LM4811 +5VD +5VD ENCODER Figure 24. UDSP - Headphone Amplifier...
  • Page 40: Figure 25. Udsp - Microcontroller

    +3.3V +3.3V +3.3V 5V_CSn 7 2V_CSn 7 5V_CSn 6 2V_CSn 6 HEADER 3X1 5V_CSn 5 2V_CSn 5 10k RPACK9 5V_CSn 4 2V_CSn 4 2V_CSn 3 +5VD 5V_CSn 3 2V_CSn 2 5V_CSn 2 5V_CSn 1 2V_CSn 1 5V_MOSI 5V_CSn 0 2V_CSn 0 GREEN LED GREEN LED GREEN LED...
  • Page 41: Figure 26. Udsp - Power

    +15V TP85 TP86 +3.3V LM39401T-3.3 +15VBUS VOUT 10uf/16 0.1uf 100uf/16 ZMM5248B 0.1uf GREEN LED 500 POT 10uf/16 ZMM5248B 0.1uf 100uf/16 GREEN LED -15VBUS +3.3V +2.5V HEADER 2X2 -15V VL SEL TP88 TP89 TP90 TP91 TP92 TP93 TP94 TP95 TP96 TP97 TP98 TP99 TP100...
  • Page 42: Figure 27. Udsp - Parellel Port Interface

    1k RPACK5 1k RPACK5 1k RPACK5 +5VD +5VD +5VD TP65 PP_D[7..0] pg(4) PP_D0 X_D0 PP_D1 X_D1 PP_D2 X_D2 X_nSTROBE 2.2k PP_STROBEn pg(4) X_D3 PP_D3 nAUTOFEED 2.2k PP_CTRL0 pg(4) X_D4 PP_D4 nINIT 2.2k PP_CTRL1 pg(4) PP_D5 X_D5 nSELECTIN 2.2k PP_CTRL2 pg(4) X_D6 PP_D6 X_D7...
  • Page 43: Figure 28. Udsp - Rs232 Interface

    TP72 TP73 TP74 TP75 RX_IN RXD pg(4) R1IN R1OUT RTS_IN RTS pg(4) R2IN R2OUT TX_OUT DB9F-RA pg(4) T1IN T1OUT CTS_OUT (CD_O) pg(4) TP76 T2IN T2OUT SHORT (DSR_O) TP77 TX_OUT (TX) TP78 RTS_IN BEAD (RTS_I) TP79 RX_IN (RX) +5VD TP80 CTS_OUT 1uf/16C (CTS_O) TP81...
  • Page 44: Figure 29. Udsp - Rs422 Interface

    DATA1- CLK2+ CLK2- RI1- DATA1+ DATA1+ RI1+ RS422_DATA1 pg(4) DATA1- CLK1+ CLK2- DO1- RS422_CLK2 pg(4) CLK1- DO1+ CLK1- RI2- RS422_CLK1 pg(4) RI2+ DB9F-RA +5VD CLK2+ DO2+ DO2- CLK1+ 1uf/16C DS8922A Figure 29. UDSP - RS422 Interface...
  • Page 45: Figure 30. Udsp - S/Pdif I/O

    SPDIF_TX1 RX_PWR PHONO JACK RA +5VD SPDIF_RXP0 SPDIF_RXP0 pg(1) 0.1uf 0.1uf 8.20k TORX-173 TOTX-173 SPDIF_RX1 pg(1,4) PHONO JACK RA pg(1,4) SPDIF_TX1 RX_PWR 0.1uf SPDIF_RXN0 pg(1) 74ACT08 93.1 HEADER 3X1 0.1uf 67129600 TORX-173 SPDIF_RX2 pg(1,4) SPDIF_TX2 +5VD RX_PWR 0.1uf 8.20k 0.1uf TOTX-173 TORX-173 SPDIF_RX3 pg(1,4)
  • Page 46: Appendix H: Bill Of Materials - Udsp

    APPENDIX H: BILL OF MATERIALS - UDSP Item Reference MFG_PN DESCRIPTION C1 C2 C3 C4 C5 C6 C7 C8 C9 C11 C13 C14 C15 C16 C17 C22 C23 C24 C25 C26 C27 C28 C29 C30 C31 C32 C33 C39 C40 C42 C44 C47 C51 C53 C60 C61 C62 C63 C64 C65 C66 C67 C68 C69 C70 C71 C72 C73 C74 C75 C76 C77...
  • Page 47 Item Reference MFG_PN DESCRIPTION 111-0104-001 E.F.JOHNSON BINDING POST GREEN BPOST 111-0102-001 E.F.JOHNSON BINDING POST RED BPOST "1-1.5 X.25'TIN X.25"" JX28 JX30 JX32 JX34 TYPE E" SQUIRES SDS-50J CUI STACK CONNECTOR CIRCULAR DIN5M J36 J47 TSW-103-07-G-D SAMTEC HEADER MALE 0.1 IN HDR3X2 TSW-102-07-G-D SAMTEC HEADER MALE 0.1 IN HDR2X2...
  • Page 48 Item Reference MFG_PN DESCRIPTION R18 R19 R21 R22 R28 R31 R32 R33 R35 R36 R37 R41 R42 R43 R82 R83 R87 R88 R89 R90 ERJ-8ENF1002 PANASONIC RES THICK FILM 10K 1/8W 1% 1206 R20 R52 R53 R54 R55 ERJ-8GEYJ330 PANASONIC RES THICK FILM 33 1/8W 5% 1206 R23 R24 R25 R34 R39 R40 R48 R49 R50 R51...
  • Page 49 Item Reference MFG_PN DESCRIPTION IC OSCILLATOR 12.2880MHZ 50PPM CX21AF-12.2880MHZ CAL CRYSTAL OSC14 8134-HC-5P2 AUGAT S0CKET PIN P0P-INSM IC VOLTAGE DETECTOR OD 4.4-4.7V MN13821T PANASONIC SC59A EPF10K30AQC240-1 ALTERA IC FPGA -4 PQFP240 MC68HC908GP32CFB MOTOROLA IC MICROCONTROLLER 32K PQFP44 EPC2LC20 ALTERA IC CONFIG EEPROM PLCC20 540-99-020-17-40000 MILL-MAX S0CKET PLCC-20 SMT...
