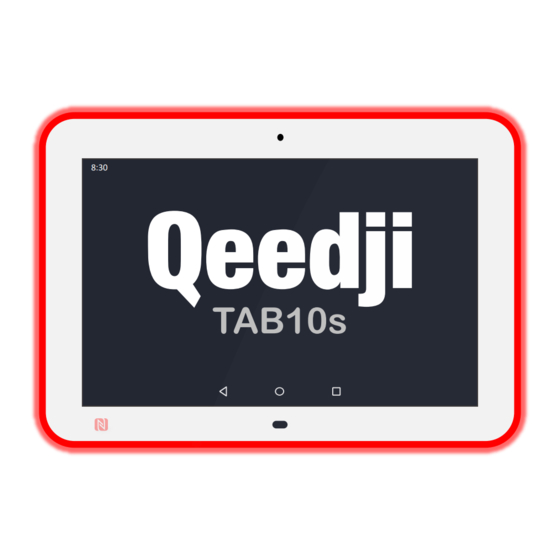

  • Page 1 User manual 001C TAB10s 9.10.10 8:30 TAB10s...
  • Page 2 Product informa on Product design and specifica ons are subject to change at any me and `Qeedji` reserves the right to modify them without no ce. This includes the hardware, the embedded so ware and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may differ slightly from those described in this manual, depending on the developments of the various suppliers.

  • Page 3: Table Of Contents

    Surround light behaviour at power-up Connectors pin-out Procedure to access to the back connectors 2 - Configura on Configura on with the se ngs applica on Qeedji System service APK installa on or upgrade 2.3.1 Configura on by script 2.3.2 AOSP firmware upgrade...

  • Page 4: Introduc On

    ◬ sufficient power supply. In case you had to remove the micro SD card, ensure first that the TAB10s is powered off before removing or inser ng the micro SD card. In case of bad handling, the ◬ micro SD card replacement would not be covered by the warranty.

  • Page 5: Labelling

    (PSN), the MAC addresses. They are showing also: the power supply characteris cs, the manufacturer Web site, the conformity logo. Model: TAB10s PSN013520-00011 CD3 MAC WLAN: 00-1C-E6-02-4E-90 MAC WPAN: 1B-1E-A2-09-DA-B4 Input: www.qeedji.tech 5A rue Pierre Joseph Colin...

  • Page 6: Product Faces

    Product faces Device's front face Touch screen, Camera, Built-in NFC/RFID sensor, Presence sensor. Device's up face Surround light, Mono speaker, Hardware reset, Built-in microphone n°1, Built-in microphone n°2, Heat pipe. Do not cover the top of the heat pipe which is designed to evacuate naturally the heat of the device when it is running. Device's bo om face Surround light, USB-C connector,...
  • Page 7 Device's rear face Bevelled profile to welcome the moun ng bracket, POGO connector, Micro SD card connector with its micro SD card, Microphone DIP switch, Camera DIP switch, Holes to host screws heads to fix the moun ng bracket. 19 20...

  • Page 8: Device Dimensions

    Device dimensions 1.3.1...

  • Page 9: Device Fixture

    Device fixture 1.3.2 The TAB10s can be hung on the wall using a moun ng bracket (suppor ng or not the POGO interface). 4 mm 4 mm 4 mm 4 mm 84.6 mm 84.6 mm Dowel Double sided tape Glass wall...

  • Page 10: Drilling Pa Ern

    Drilling pa ern 1.3.3 In case you want to hang the TAB10s device on the wall, you can do it using the provided moun ng bracket. Follow the drilling pa ern to install it. 255 mm Screws (2x) 6 mm ≤ head Ø ≤ 9.5 mm h ≤...

  • Page 11: Power Supply

    This device is intended to work with an external power supply, not provided by default. The two ways to supply the device are: either through the USB-C connector, or through the POGO connector. Power supply references Depending on your your needs, you can order among several power supply unit references recommended by Qeedji. Commercial reference Feature Informa on ¹...

  • Page 12: Device Start-Up Step

    Step 3 (T~8s) Step 4 (T~22s) Step 5 (T~30s) The device is boo ng. Surround light red is flashing once: Qeedji splashscreen is displayed: Android splashscreen: Nominal mode: device powered. kernel ini aliza on is in progress. AOSP ini aliza on is in progress.

  • Page 13: Surround Light Behaviour At Power-Up

    SD card. If the problem persists, contact support@qeedji.tech. ¹ Try with another suitable power supply unit. If the problem persists despite of an appropriate power-supply unit, contact support@qeedji.tech. ² Remove the moun ng bracket from the device, or remove the device from the moun ng bracket, and check that your micro SD card is properly inserted in the device.

  • Page 14: Connectors Pin-Out

    ☛ The USB-C connector is suppor ng Ethernet over USB. ¹ The TAB10s device is a USB sink device by default, in order to be supplied by an external power source device. It implements data-role swap, in order to be able to become the data host, and hence, to support ethernet-to-usb external bridges while being supplied by this bridge.
  • Page 15 Dipswitches for microphone and camera For confiden ality purpose, the TAB10s has two switches at the back of the product allowing to ac vate or inac vate respec vely the microphone and the camera peripherals. When the DIP switch is facing the crossed microphone, the microphone peripheral is inac vated.
  • Page 16 Step 3: If the spring of the SD card connector is responding properly, helped with a pen, push the micro SD card towards the connector un l hearing a clic. The 16 GB micro SD card, containing the AOSP 9 for TAB10s device, is provided by default and is already installed in the product.

  • Page 17: Procedure To Access To The Back Connectors

    Procedure to access to the back connectors Do follow this procedure to get access to: the camera hardware DIP switch, the microphone hardware DIP switch, the micro SD card connector, the POGO connector. Procedure when the device is supplied by the USB-C connector: unplug the USB-C cable from the device, un ghten the two screws at the bo om of the product, remove the moun ng bracket from the device.

  • Page 18: Configura On With The Se Ngs Applica On

    Configura on with the se ngs applica on Like any Android tablet, the TAB10s can be configured manually thnaks to the applica on. Settings WLAN configura on To configure your WLAN interface, in the Se ngs menu, choose the Network and internet (Wifi, data usage, hotspot) menu.

  • Page 19: Apk

    The TAB10s is intended to work with one or several custom Android APK. The third party APK are not provided. The TAB10s is embedding AOSP 9 based on the AOSP SDK 28. To develop your third party APK, provides a...

  • Page 20: Qeedji System Service

    Qeedji System service To support APK deployment, AOSP firmware upgrade and TAB10s device configura on, the TAB10s embeds the service which is launched automa cally as soon as Qeedji System the AOSP is running. It supports: APK installa on thanks to a file:...

  • Page 21: Apk Installa On Or Upgrade

    APK is fully compa ble with AOSP 9 and suitable for TAB10s (peripherals, …), the APK requiring rights would need a cer ficate delivered by Qeedji to be allowed to be executed on the TAB10s. For further informa on, refer to the TAB10s...
  • Page 22 Unplug the USB storage device. This message should be displayed for few seconds, the me for the AOSP to install the APK. 8:10 Information Installing the my_application.apk file ☛ In case several APK are available on the USB storage device, the installing message appears for each new APK to install. When the APK installa on is completed, this message should be displayed for 10 seconds.
  • Page 23 This error message is displayed for 10 seconds when the APK is corrupted or when the USB storage device has been removed when the copy was s ll in progress. Try again. If the problem persists, you can contact support@qeedji.tech.

  • Page 24: Configura On By Script

    TAB10s needs to have a suitable power supply equipment allowing to support TAB10s configura on by the USB-C connector. Copy the configura on script at the root directory of an USB storage device and insert it on the USB-C connector of the TAB10s device (or on the third party equipment connected to the USB-C connector).
  • Page 25 When the USB storage device is unplugged this message is displayed for less than 5 seconds. 8:05 Waiting Installing the 000000000000.js configuration script This message is displayed un l the device is reboo ng automa cally once. 8:06 Waiting Rebooting...
  • Page 26 Error while the 000000000000.js configuration script copying This error message is displayed for 10 seconds when the configura on script has a Javascript syntax error. Double check that the configura on script content is consistent for the TAB10s device. 8:21 Error Error while the 000000000000.js configuration script installing...
  • Page 27 Device configura on by server TFTP and server DHCP with code 66 The TAB10s can be configured thanks to a configura on script hosted on a TFTP server + DHCP server (code 66). Prerequisites: the LAN or the WLAN interface is configured in DHCP mode, a TFTP server and a DHCP server are properly configured, are working properly and are available on the network.

  • Page 28: Aosp Firmware Upgrade

    The AOSP firmware version upgrade can be done by pu ng a archive on a USB storage device then by inser ng it in the TAB10s USB-C connector, or through the third party .zip equipment connected to the USB-C connector.
  • Page 29 This message is then display un l the USB storage device is unplugged. 8:14 Information You can unplug the external USB storage device to install the firmware Unplug the USB storage device. This message is then displayed showing that the firmware is being unzipped. 8:15 Waiting Unzipping the firmware aosp-tab10-setup-9.
  • Page 30 One of these messages could occur when the AOSP firmware is corrupted or when the USB storage device has been removed when the copy was s ll in progress. If required, download again the AOSP firmware from the Qeedji Web site and try again. If the problem persists, contact support@qeedji.tech. 8:26 Error Error while firmware aosp-tab10-setup-9.YY.ZZ.zip unzipping...

  • Page 31: Factory Recovery

    Factory recovery The factory recovery consists in recovering the OS and data like it was at the factory. Consequently, the different APK installed by the user and the TAB10s configura on data will be lost. So, it is highly recommended to save all the required se ngs to be able to reconfigure your TAB10s a erwards.
  • Page 32 TAB10s to lock the device on the wall. In case the device is powered by the USB-C connector: install again the moun ng bracket on the product, plug again the USB-C power supply.

  • Page 33: Technical Specifica Ons

    ²the maximum current is 2.1A, so you should select an external power supply accordingly. recommends the accessory, as it is Qeedji EXC.ETH.USBC fully qualified with TAB10s. For standard USB power supply adaptor, select a 5V/3A capable device. USB Data Informa on Through USB-C connector USB 2.0 Through POGO connector USB 2.0...
  • Page 34 Audio output Informa on Mono speaker 0.7W Fanless Opera ng system AOSP (Android Open Source Project) for TAB10s Opera ng temperature Storage temperature 0°C to +40°C / 32°F to 104°F -20°C to +60°C / -4°F to 140° Opera ng humidity Storage humidity <...

  • Page 35: Built-In Rfid Reader

    Built-in RFID reader The device tab10s has a badge reader allowing to recognize the badges suppor ng the RFID/NFC technology. Modula on Data rate Tested Type Brand (Manufacturer) Applicable standard Supported frequency (kbps) configura on 13.56 MHz Mifare Classic 1K/4K (NXP)

  • Page 36: Antenna Return Loss

    Antenna return loss This is the return loss diagram for the WIFI/Bluetooth antenna:...

  • Page 37: Conformi Es

    Qeedji is not responsible for any changes or modifica ons not expressly approved by the party responsible for compliance. such modifica ons could void the user’s authority to operate the equipment.

  • Page 38: Contacts

    For further informa on, please do not hesitate to contact us: by phone at +33 (0)2 23 20 01 62, by e-mail: Technical support: support@qeedji.tech, Sales department: sales@qeedji.tech. Refer to the Website for FAQ, applica on notes, and so ware downloads: Qeedji h p://www.qeedji.tech/...

  • Page 39: Appendix 1: Qualified References For Third Party Hub

    Appendix 1: Qualified references for third party hub USB Type-C USB Type-C Commercial reference Type USB-A PD Output RJ45 bridge Ethernet to USB PD Input DRD (Dual-Role-Data) QACQOC Hub USB H01C-Gray TTRIP-LITE Hub USB + RJ45 U460-003-3AG-C PD: Power Delivery If you want to find other reference by your own, the hub need to be compliant, 5V/3A.

  • Page 40: Appendix 2: Iso Image Burning With Balenaetcher

    Appendix 2: ISO image burning with BalenaEtcher BalenaEtcher filename Version OS Windows Size Download link balenaEtcher-Portable-1.5.102.exe 1.5.102 x86, x64 115 MB BalenaEtcher Web site A er having installed so ware, execute it with rights: BalenaEtcher administrator Click on the bu on and select the file Select image aosp-tab10-setup-xx.yy.zz.iso Press on the...

  • Page 41: Appendix 3: Tftp And Dhcp Server Configura On

    The TAB10s network interfaces must be configured to obtain their IP address by the DHCP server. downloading opera on (specific or general) is realized with a dialog step with the DHCP server (during the device boo ng). The Qeedji device TFTP configuration by script configures first its network parameters obtained by...
