- Page 1 2490/GENESIS Introduction FULL SIZE MANUAL AVAIALBLE TO DOWNLOAD AND PRINT AT WWW.AUTOGATE.COM MODEL VPG2490 1 ...
- Page 2 VPG2490 OPERATOR The VPG2490 is AutoGate’s new UL 325 Rev 7 Listed Ver cal Pivot Gate Operator. The VPG2490 em- ploys a 90°, (Right Angle Drive) gearmotor, and a newly designed 24 VDC controller (Genesis Board) and u lizes a new Limit/Posi on Sensor (LPS) to detect gate posi on. The frame for this model is 2” taller than the previous model to allow for clearance between the windbracing and the end panel of the operator cab- inet when the gate is fully open. This allows the addi on of “OPEN EDGE” contact bump strips to be ...
- Page 3 2490 BELTS (cont.) The following are the recommended belt tension adjustments: To obtain the measurements place a long straight edge across the span as shown by the do ed line and press down on the belt with a small force scale or finger p at midspan between the contact points of the belt and sheaves. The primary 'MOTOR' drive adjustment is an average of the 3 belts. Adjust to .25" deflec on with 6 to 7 lbs. of force. Also, when adjus ng the 'MOTOR' drive belt tension, make sure to keep the motor moun ng as- sembly square, either using a tape measure or the notches in the moun ng slides. When properly aligned ...

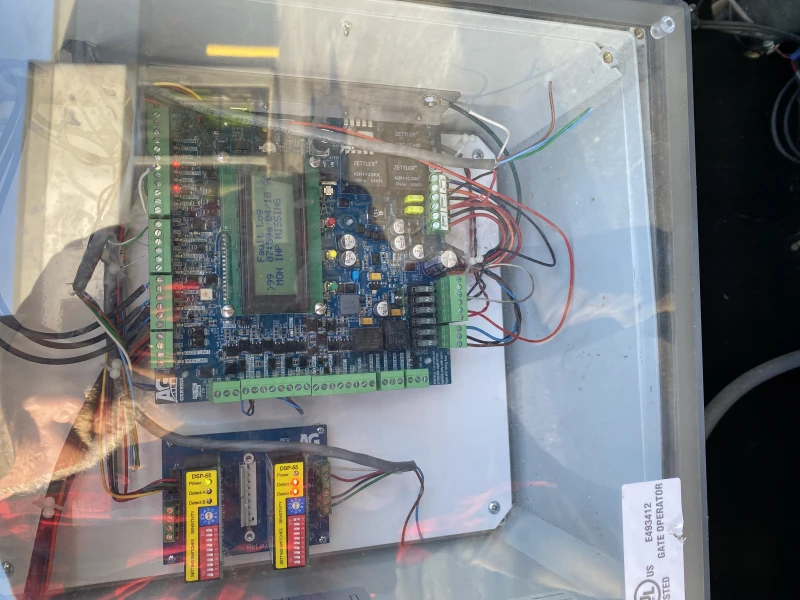

- Page 4 Genesis Controller AutoGate is introducing the “GENESIS” control board. Genesis is a 24 Volt DC board capable of controlling mo- tors rated up to 20 Amps. The board has a 4 line, 20 characters per line display for informa on and program- ming. The Genesis board operates on DC power. Our standard system will be supplied with a 24 to 28-volt DC / 18.8- amp power supply and the Power Supply se ng will be “NORMAL”. This will power all func ons of the gate. There is an internal ba ery charger/maintainer circuit on the Genesis board. The system will require two (2) 12-volt ba eries wired in series or a single 24-volt ...
- Page 5 GENESIS CONTROLLER (cont.) The Genesis board is programmed to monitor the input power in all 3 scenarios. In normal opera on, using the regular power supply, if the AC power to the supply or the power supply itself fails, the RED LED indi- cator light on the driveway operator end panel will flash. If the ‘solar’ panels or the ‘charge’ supply fail to charge the ba eries for more than 24 hours, again the indicator LED will flash, and a warning screen will show on the 4-line display indica ng that there is a problem with the solar panels, wiring, or that there is an issue with the AC power to the charging power supply or the power supply itself. If either the ‘NORMAL” or the “CHARGE” power supply have a no output condi on, first try turning off ...
- Page 6 P11/Pg. 4 P10/Pg. 12 P9/Pg. 11 Note: is NOT USED on the VPG2490 model. The VPG2490 uses a Limit Posi on Sensor (LPS). would only be used if you were to install the GENESIS board in an older operator with limit switches.
- Page 7 OPEN & CLOSE monitored inputs can be deac vated. This will require a special passcode to allow the servicing dealer 24-hour access to programming that can bypass the UL Rev. 6 code. To get the pass code, a phone call to AutoGate with the gate serial number or AG # and the 8 -character code displayed on the access screen. The AutoGate representa ve will read back a 5-character code that will need to be entered on the display. Again, this will allow 24-hour access to this special programming func on. A er that, if there would ever be a reason to access the special programming func ons, a new ...
- Page 8 MONITORED DEVICE CONNECTIONS POINTS P4 & P5 When ac vated, the gate will stop, (in less than 2 seconds), and then reverse and go to a full close Monitored Open Edge secured posi on. Gate will remain closed un l it receives an “INTENDED” INPUT (Keypad/Reader/ Push Bu on/Free Exit) or the board is manually reset (Not from an Entrapment input). When ac vated, the gate will stop, (in less than 2 seconds), and then reverse and go to a full close Monitored Open Beam secured posi on. Gate will remain closed un l it receives an “INTENDED” INPUT (Keypad/Reader/ Push Bu on/Free Exit) or the board is manually reset (Not from an Entrapment input). Choice of Open or Close direc on by Menu, choice of Edge or Beam and then 10K or 2 wire by Menu. Monitored Programmable Input 1 & 2 (Refer to PROGRAMMABLE INPUT FUNCTIONAL descrip ons for required ac on. When ac vated the first ...
- Page 9 In addi on to the entrapment sensor inputs there are opera onal inputs for vehicle detec on, communica on with another gate or similar device as well as push bu ons for control of various modes of opera on. FUNCTION DURING INPUT NAME FUNCTION AFTER MOMENTARY TRIGGER CONTINUOUS TRIGGER While at open limit, hold open, ignore once off of the open limit switch. (Not com- Shadow Loop Hold Open mon on Ver cal Pivot Gate) Opens gate as Open1, but when signal is removed, gate is given command to close. FE/Back (Free Exit/ Starts opening movement from any (Close command over ridden by any other open or Reverse/Interrupt command or Back Away) posi on ...
- Page 10 Four States OFF: No faults FAST Blink: Low ba ery voltage DOUBLE PULSE Blink: Loss of AC power SLOW Blink: Any other fault Warning Light priority for the signals are: 1 - Low ba ery 2 - Loss of AC 3 - Any other fault Ac ve for full cycle (ON‐OFF menu selectable). Programmable for pre-movement Mo on Alarm opening (0-5 seconds menu selectable). Programmable for pre-movement closing (0- 5 seconds menu selectable). UL325 Alarm Ac ve for condi ons related to UL325 specifica ons Programmable/Selectable: Magne c lock op on - Ac ve when the gate is closed. Lock Solenoid Interlock op on - Momentary ac va on to open the bolt that mechanically ...
- Page 11 AUX Relays A & B: Are programmable for opera on based on gate ac on or posi on. Both relays OPTIONS: OFF Pulse on OPEN Limit: 2-second Relay Ac va on Pulse on CLOSE Limit: 2-second Relay Ac va on Hold on OPEN Limit: Latches Relay ON during OPEN Limit AUXILIARY RELAYS A & B Hold on CLOSE Limit: Latches Relay ON during CLOSE Limit Pulse on Motor OPEN: 2-second Pulse when gate starts to move OPEN Pulse on Motor CLOSE: 2-second Pulse when gate starts to CLOSE Hold on Motor OPEN: Latches Relay on when gate is OPENING Hold on Motor CLOSE: Latches Relay ON when gate is CLOSING The Genesis board has (2) 24VDC outputs and (2) 12VDC outputs to power external devices. Each is fused at 2 Amps. 24VDC ACCESSORY Power (2) Fused at 2 Amps total 12VDC ACCESSORY Power (2) Fused at 2 Amps total 11 ...
- Page 12 SHIELDED 18 ga. wire (3 required, 1-spare) and set the following board parameters: P/S: Set for Primary /Secondary communica- >Dual Gate Mode: on. Gates need to communicate with each other to work properly. Your gate is equipped with a LIMIT/POSITION SENSOR. It will be properly set when it leaves the factory. If you need to adjust it, refer to the instruc ons below. If you need to replace, contact AutoGate. ADJUSTING THE LIMIT/POSITION SENSOR >Op:4500 Ramp:4000 WARNING! This screen requires a PASSCODE to access. Gate 1 1. In programming mode, Set your cursor to the GATE (line 2) and enter (>Gate). Using the Jog knob you can slightly adjust the OPEN or CLOSE posi on by turn- ing it le or right. 2. Once you have readjusted your gate posi on, “enter” again to back out of the ...
-
Page 13: Recommended Maintenance
MAINTENANCE The basic electrical and mechanical systems require only minimum rou ne maintenance. The following items should be checked and serviced periodically depending on amount of use. Each item below has suppor ng illustra ons and/ or instruc ons in this manual. Contact AutoGate for any ques ons or issues. Maintenance is important to any gate system and can affect safety, warranty, quality opera on, and life‐cycle of the system. ITEM RECOMMENDED MAINTENANCE Grease Linkage Assembly (“LUBRIPLATE ‘R’ LOW TEMP” Grease) 10,000 cycles or 6 months Grease all bearings: two (2) Operator Arm, four (4) Bullwheel Sha s 10,000 cycles or 6 months Grease Chain Tension Bolt and Lube Chain & lightly coat springs 10,000 cycles or 6 months (Use a non-evapora ng cable and chain spray) ... - Page 14 Changing the belts on an AutoGate Ver cal Pivot operator is easy by following the step by step procedure outlined below. As al- ways, we are only a phone call away should you need assistance at 800-944-4283. 1. Remove the (4) Tek Screws on the Top Panel using a 5/16” nut driver, remove and set aside. 2. Remove the STIFFENER PLATE (#1) from the POISITION SENSOR bracket. This allows a space to remove belts. 3. Release the MOTOR DRIVE BELT (#2) tension by loosening the (4) 3/8” CARRIAGE BOLT nuts securing the GEAR MOTOR bracket (#3) to the SIDE SLIDE plates (#4) with a 9/16” wrench. Now using a 9/16” wrench, back off the (2) Gear Motor FORCING screws (#5) so that only 1” remains through the coupling nut. 4. Slide the GEAR MOTOR assembly to create slack in the belts. 5. On the center of the pulleys. Loosen the FLANGE BEARING bolts (#6) about one turn that secure the sha bearings using a 15/16” wrench. ...
- Page 15 3. Remove any upper “T” bolts completely and loosen after any spring change. Refer to balancing instructions the slide assembly screws. www.AutoGate.com or the instructions on Page 16 4. Loosen the top adjusting nut of the slide assembly. Thread the nut up to within four (4”) inches of the top of slide mechanism.
- Page 16 BALANCING 16 ...
Need help?
Do you have a question about the VPG2490 and is the answer not in the manual?
Questions and answers
I’m putting in a safety loop for a VPG-2490/LS and I need to know where to run my wires to on the circuit board
For a safety loop on the AutoGate VPG2490/LS, run the wires to port P14, which is the Loop Rack Accessory Wiring harness port used with the LR-3 Loop Rack board.
