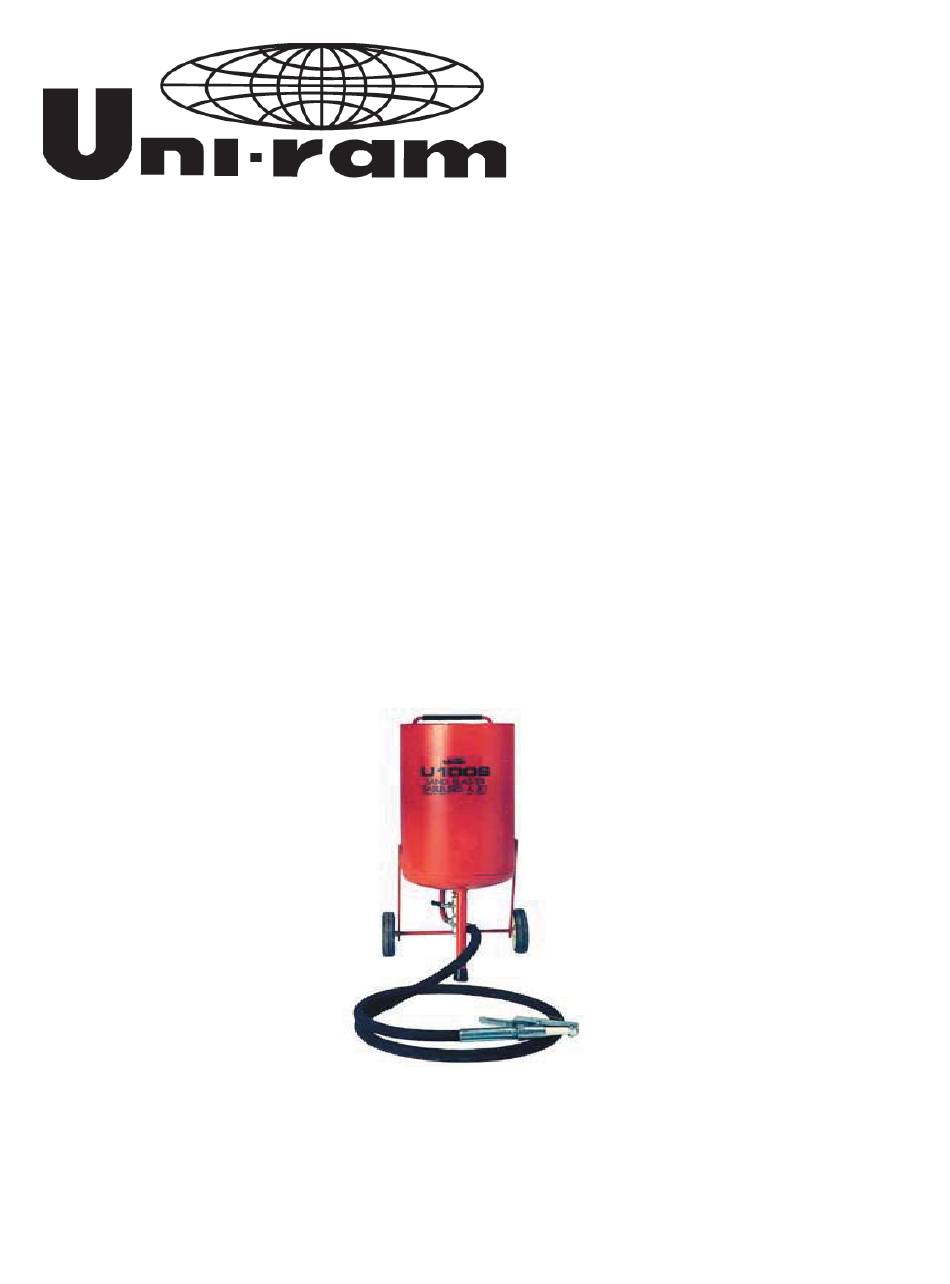

- Page 1 USER MANUAL PRESSURE SAND BLASTERS MODELS U100-0 U103-0 U100-S U103-S UNI-RAM CORPORATION • ONTARIO • CANADA Revised 2006-02...
-
Page 2: Table Of Contents
MANUAL - SANDBLASTERS - U100-U103 Revised 2006-02 CONTENTS INTRODUCTION ........................... 3 CAUTIONS ............................3 PREPARATION............................4 OPERATING INSTRUCTIONS ......................4-5 SEAL BLOCK ADJUSTMENT ........................ 6 SAFETY SHUT OFF CONTROL ......................6 FEATURES, SPECIFICATIONS AND BREAKDOWN ................7 KEY PARTS ............................8 REPLACEMENT HOSES, NOZZLES, HOODS AND ASSEMBLIES ............. -
Page 3: Introduction
Revised 2006-02 INTRODUCTION Uni-ram holds many patents on designs used in its innovative products. Every machine is rigorously tested for compliance with stringent Quality Assurance standards. Follow the straight forward Operat- ing Procedures closely in order to operate this machine safely and effectively. Ensure that this manual is readily available to the operator at all times. -
Page 4: Preparation
MANUAL - SANDBLASTERS - U100-U103 Revised 2006-02 PREPARATION IMPORTANT: OPERATOR SHOULD WEAR PROTECTIVE CLOTHING Note: Item numbers given below refer to the parts listing on page 4. 1. On removal of sandblaster from carton, check for any transportation damage and make sure all parts and accessories are included. - Page 5 MANUAL - SANDBLASTERS - U100-U103 Revised 2006-02 OPERATING INSTRUCTIONS (continued) 4. OPERATING TIPS: a) Always operate with hose and control “wide open”. Adjustment for suitable abrasive fl ow should be made independently using the Sand Flow Control Valve (Item 11). b) Make sure you match the right combination of abrasive type and mesh size, nozzle size and air pres- sure to the particular job at hand.
-
Page 6: Seal Block Adjustment
MANUAL - SANDBLASTERS - U100-U103 Revised 2006-02 SEAL BLOCK ADJUSTMENT: 1. Proper adjustment is important to ensure effi cent operation and prevent excessive wear of the Seal Block.To accomodate size variations in the manufacturing of ceramic nozzles, elongated adjustment holes are provided for seating the Seal Block. -
Page 7: Features, Specifications And Breakdown
MANUAL - SANDBLASTERS - U100-U103 Revised 2006-02 Uni-ram Pressure Sand Blasters are portable, rugged, effi cient tools for removing dirt, rust, paint and other materials from all kinds of surfaces. FEATURES, SPECIFICATIONS AND BREAKDOWN • SUITABLE FOR USE WITH MANY ABRASIVES INCLUDING: SILICA SAND, GLASS BEADS, METAL SHOT, ALUMINUM OXIDE, NUT SHELLS, BAKING SODA •... -
Page 8: Key Parts
MANUAL - SANDBLASTERS - U100-U103 Revised 2006-02 KEY PARTS U100-0 & U100-S U103-0 & U103-S NOTE: Not all parts shown are user serviceable. Contact Uni-ram Customer Service before ordering. -
Page 9: Replacement Hoses, Nozzles, Hoods And Assemblies
QUICK NOZZLE END ON/OFF NONE 1/2" STEEL CONTROL MODEL U100-0/S** U103-0 *Also called "Safety Blast Hand Control", "dead man switch" or "squeezer gun". **For U100-S model, add U5000 Safety Shut Off ITEM PART NO. DESCRIPTION 10-260 Ceramic Nozzles (see below) -
Page 10: Warranty
The items listed below under “Conditions of Warranty” as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on-site. - Page 11 INSIDE BACK COVER...
