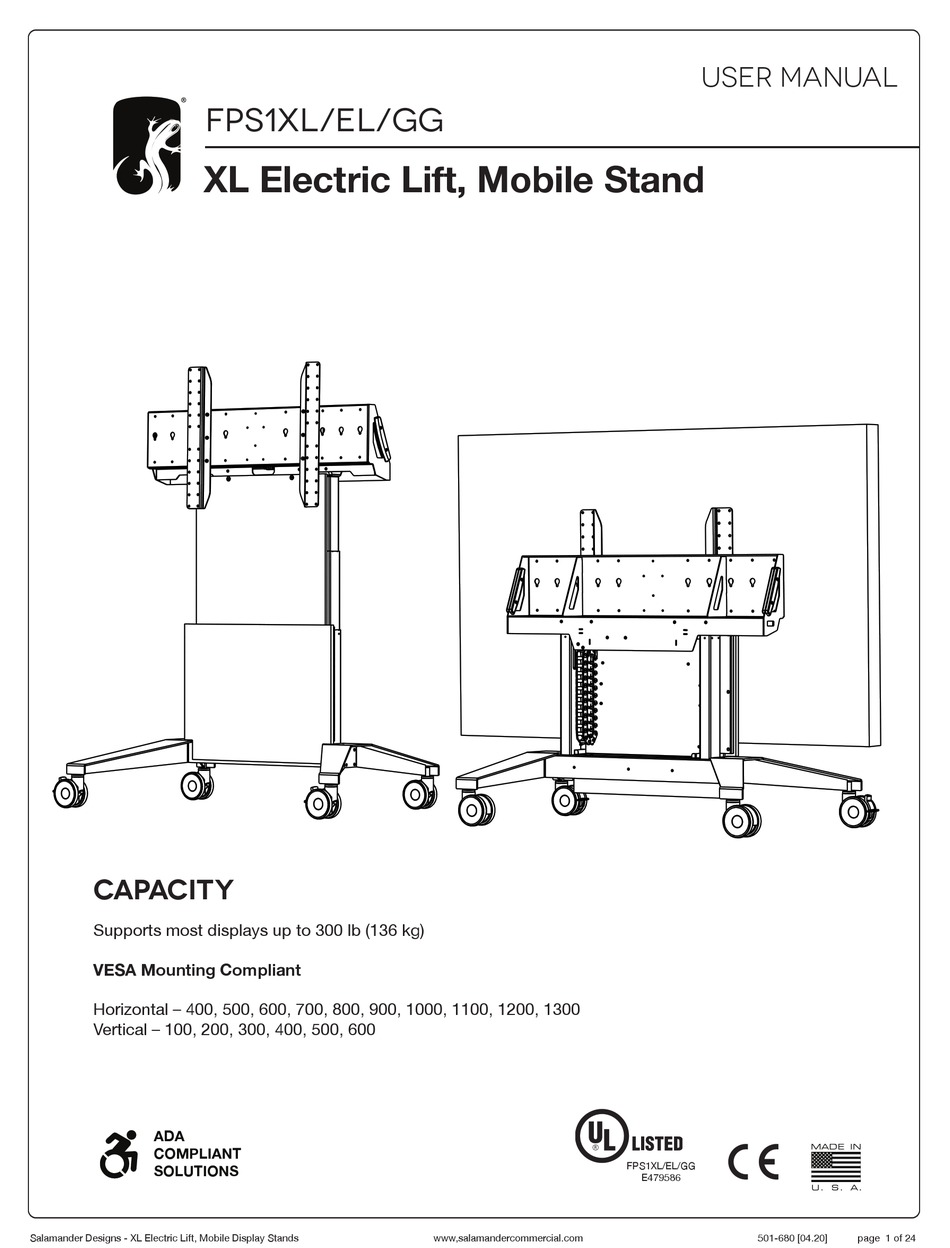

fps1XL/el/gg
XL Electric Lift, Mobile Stand
CAPACITY
Supports most displays up to 300 lb (136 kg)
VESA Mounting Compliant
Horizontal – 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300
Vertical – 100, 200, 300, 400, 500, 600
ADA
COMPLIANT
SOLUTIONS
Salamander Designs - XL Electric Lift, Mobile Display Stands
www,salamandercommercial.com
user manuAl
FPS1XL/EL/GG
E479586
501-680 [04.20]
page 1 of 24
Advertisement
Table of Contents
Summary of Contents for Salamander Designs XL Series
- Page 1 Horizontal – 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300 Vertical – 100, 200, 300, 400, 500, 600 COMPLIANT FPS1XL/EL/GG SOLUTIONS E479586 Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com 501-680 [04.20] page 1 of 24...
- Page 2 3/16” Hex wrench - long arm 400-080 5/32” Hex wrench 301-720 301-715 301-700 301-735 30 400-070 1/8” Hex wrench 305-062/GT Display Interface Brackets -700 301-735 302-281 300-485 Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com 501-680 [04.20] page 2 of 24...
-
Page 3: Important Safety Instructions
Return the device to a service center for examination and repair. Electrical Specifications: Input: 90V - 240V ~, 48 Hz - 63HZ Operation: 10% Max 2min./18min. Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com 501-680 [04.20] page 3 of 24... - Page 4 • There are no user-serviceable components within this device. Removal of the cover from this device may present a shock hazard, and void the warranty. Accessories and Spare Parts Please contact your nearest Salamander Designs dealer or www.salamandercommercial.com FPS1XL/EL/GG E479586 Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com...
- Page 5 ASSEMBLY UNBOX & INSTALL LEGS Fold box sides down flat Prop base of unit up on cardboard supports Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com 501-680 [04.20] page 5 of 24...
- Page 6 There are 6 “I” screws per leg. The fifth screw is installed on the top of the leg as shown above. Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com 501-680 [04.20] page 6 of 24...
-
Page 7: Display Installation
display installation Attach Brackets to Display Check depth of screw threads in display before inserting screws. Inserting a screw that is longer than the hole could result in damage to display. Depth can be confirmed by inserting hex wrench into hole and marking its length then confirming this length is FPS1XL_EL Instruction 4-7-20 Attach Display Brackets sufficient by comparing it to the screw you are using. - Page 8 This will act as an alignment screw for the next step. Two people are needed to install the display on the stand. Position alignment screw into the “key hole” slot as shown and continue holding display. Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com 501-680 [04.20]...
-
Page 9: Connect Power
Immediately use (4) “H” screws to affix the mounting brackets to the cart-side mechanism as shown. Tighten all screws firmly. Connect Power Insert power cord into supply as shown in illustration below: Salamander Designs - XL Electric Lift, Mobile Display Stands www,salamandercommercial.com 501-680 [04.20] page 9 of 24... -
Page 10: Operation: Remote Control
LIMITED LIFETIME WARRANTY Salamander Designs Ltd. Limited Lifetime Warranty on Furniture and Seating products are guaranteed to be free from defects in design, material and workmanship, given normal use and proper care in a normal single shift Commercial environment, with the exceptions noted below. Salamander will repair or replace, at its discretion without charge to the original purchaser, any product or part thereof which fails as the result of such defects during the warranty period.
