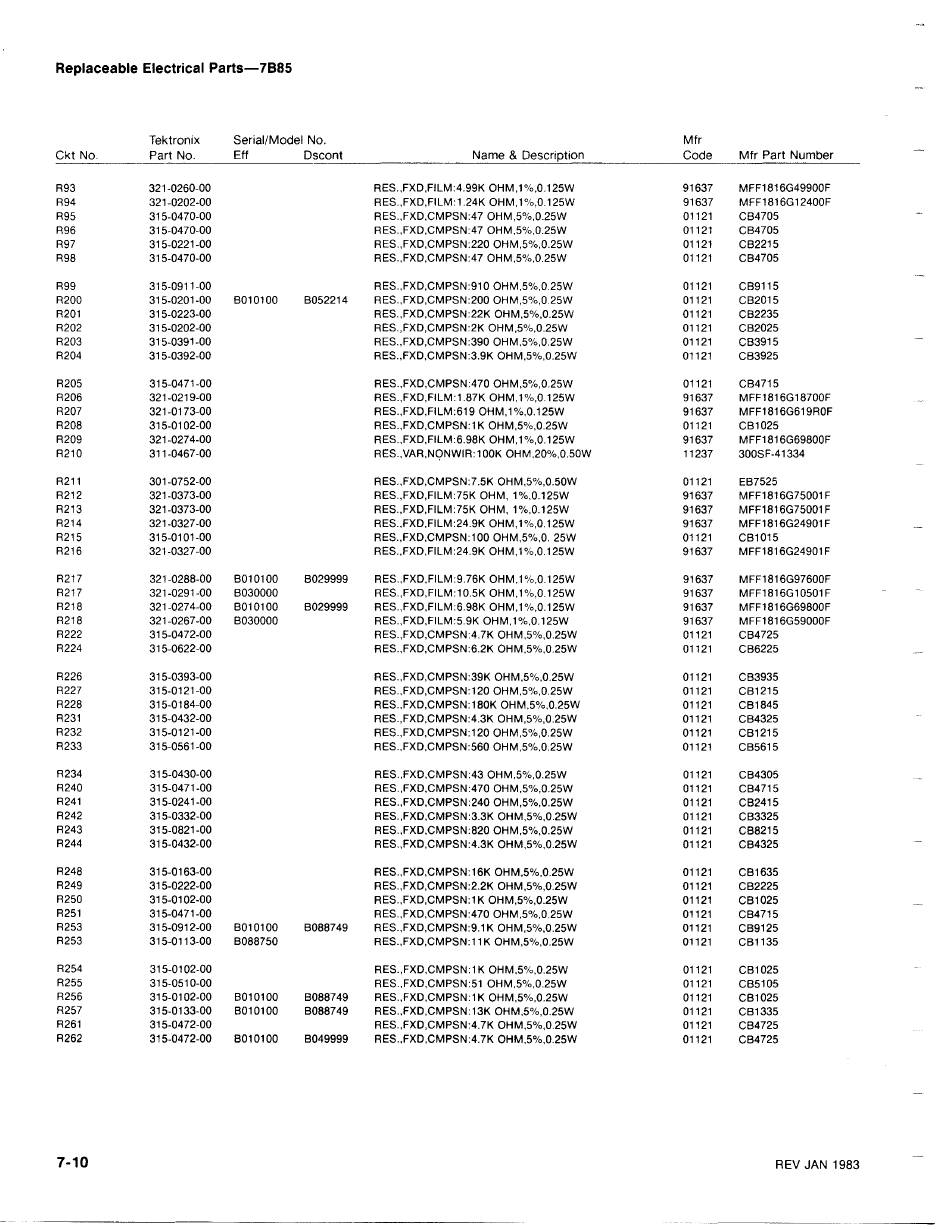

Tektronix 7B85 Instruction Manual page 105

Replaceable Electrical Parts-7BSS
Tektronix Serial/Model No. Mfr
Ckt No. Part No. Eft Dscont Name
&
Description Code Mfr Part Number
R93 321-0260-00
RES .. FXD.FILM:4.99K OHM,l%,O.125W 91637 MFF1816G49900F
R94 321-0202-00 RES.,FXD,FILM:1.24K OHM,l%,O.125W 91637 MFF1816G12400F
R95 31 5-0470-00 RES.,FXD,CMPSN:470HM,5%,O.25W 01121 CB4705
R96 31 5-0470-00 RES.,FXD,CMPSN:47 OHM,5%,O.25W 01121 CB4705
R97 315-0221-00 RES.,FXD,CMPSN:220 OHM,5%,O.25W 01121 CB2215
R98
31 5-0470-00
RES.,FXD,CMPSN:47 OHM,5%,O.25W 01121
CB4705
R99
315-0911-00
RES.,FXD,CMPSN:910 OHM,5%,O.25W
01121 CB9115
R200 315-0201-00 B010100 B052214 RES.,FXD,CMPSN:200 OHM,5%,O.25W 01121 CB2015
R201
315-0223-00
RES.,FXD,CMPSN:22K OHM,5%,O.25W
01121 CB2235
R202 315-0202-00 RES.,FXD,CMPSN:2K OHM,5%,O.25W 01121 CB2025
R203 315-0391-00 RES .. FXD,CMPSN:390 OHM,5%,O.25W 01121
CB3915
R204 315-0392-00 RES.,FXD,CMPSN:3.9K OHM,5%,O.25W 01121 CB3925
R205 315-0471-00 RES.,FXD,CMPSN:470 OHM,5%,O.25W 01121 CB4715
R206 321-0219-00 RES.,FXD,FILM:1.87K OHM,l%,O.125W 91637 MFF1816G18700F
R207 321-0173-00 RES.,FXD,FILM:619 OHM,l %,O.125W 91637 MFF1816G619ROF
R208 315-0102-00 RES.,FXD,CMPSN:1 K OHM,5%,O.25W 01121 CB1025
R209 321-0274-00 RES.,FXD,FILM:6.98K OHM,l %,O.125W 91637 MFF1816G69800F
R210 311-0467-00 RES.,VAR,NQNWIR:100K OHM,20%,O.50W 11237 300SF-41334
R211 301-0752-00 RES.,FXD,CMPSN:7.5K OHM,5%,O.50W 01121 EB7525
R212
321-0373-00 RES.,FXD,FILM:75K OHM, 1%,O.125W 91637 MFF1816G75001 F
R213 321-0373-00 RES.,FXD,FILM:75K OHM, 1%,O.125W 91637 MFF1816G75001 F
R214
321-0327-00 RES.,FXD,FILM:24.9K OHM,l %,O.125W 91637 MFF1816G24901 F
R215
315-0101-00 RES.,FXD,CMPSN:100 OHM,5%,O. 25W 01121 CB1015
R216
321-0327 -00
RES.,FXD,FILM:24.9K OHM,l%,O.125W
91637 MFF1816G24901 F
R217 321-0288-00 B010100
B029999
RES.,FXD,FILM:9.76K OHM,l %,O.125W
91637
MFF1816G97600F
R217 321-0291 -00 B030000 RES.,FXD,FILM:10.5K OHM,l%,O.125W 91637 MFF1816G1 0501 F
R218 321 -0274-00 B010100 B029999 RES.,FXD,FILM:6.98K OHM,l %,O.125W
91637
MFF1816G69800F
R218 321-0267-00 B030000 RES.,FXD,FILM:5.9K OHM,l %,O.125W 91637 MFF1816G59000F
R222 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,O.25W 01121 CB4725
R224 315-0622-00 RES.,FXD,CMPSN:6.2K OHM,5%,O.25W 01121 CB6225
R226 315-0393-00 RES.,FXD,CMPSN:39K OHM,5%,O.25W 01121 CB3935
R227 315-0121-00 RES.,FXD,CMPSN: 120 OHM,5%,O.25W 01121 CB1215
R228
315-0184-00 RES.,FXD,CMPSN:180K OHM,5%,O.25W 01121 CB1845
R231 315-0432-00 RES.,FXD,CMPSN:4.3K OHM,5%,O.25W 01121 CB4325
R232
315-0121-00 RES.,FXD,CMPSN:120 OHM,5%,O.25W 01121 CB1215
R233 315-0561-00
RES.,FXD,CMPSN:560 OHM,5%,O.25W 01121 CB5615
R234 315-0430-00 RES.,FXD,CMPSN:430HM,5%,O.25W
01121 CB4305
R240 315-0471-00
RES.,FXD,CMPSN:470 OHM,5%,O.25W 01121 CB4715
R241 315-0241-00 RES.,FXD,CMPSN:240 OHM,5%,O.25W
01121 CB2415
R242 315-0332-00
RES.,FXD,CMPSN:3.3K OHM,5%,O.25W 01121 CB3325
R243 315-0821-00 RES.,FXD,CMPSN:820 OHM,5%,O.25W
01121 CB8215
R244 315-0432-00 RES.,FXD,CMPSN:4.3K OHM,5%,O.25W 01121 CB4325
R248
315-0163-00 RES.,FXD,CMPSN:16K OHM,5%,O.25W 01121 CB1635
R249
315-0222-00 RES.,FXD,CMPSN:2.2K OHM,5%,O.25W
01121
CB2225
R250
315-0102-00 RES.,FXD,CMPSN:1K OHM,5%,O.25W 01121
CB1025
R251
315-0471-00 RES.,FXD,CMPSN:470 OHM,5%,O.25W 01121 CB4715
R253
315-0912-00 B010100 B088749 RES.,FXD,CMPSN:9.1 K OHM,5%,O.25W 01121 CB9125
R253 315-0113-00 B088750
RES.,FXD,CMPSN: 11 K OHM,5%,O.25W 01121 CBl135
R254 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,O.25W 01121 CB1025
R255 315-0510-00 RES.,FXD,CMPSN:51 OHM,5%,O.25W
01121 CB5105
R256
315-0102-00 B010100 B088749 RES.,FXD,CMPSN:1 K OHM,5%,O.25W
01121 CB1025
R257
315-0133-00 B010100 B088749 RES.,FXD,CMPSN:13K OHM,5%,O.25W 01121
CB1335
R261
315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,O.25W
01121 CB4725
R262
315-0472-00 B010100 B049999 RES.,FXD,CMPSN:4.7K OHM,5%,O.25W 01121
CB4725
7-10
REV JAN 1983
