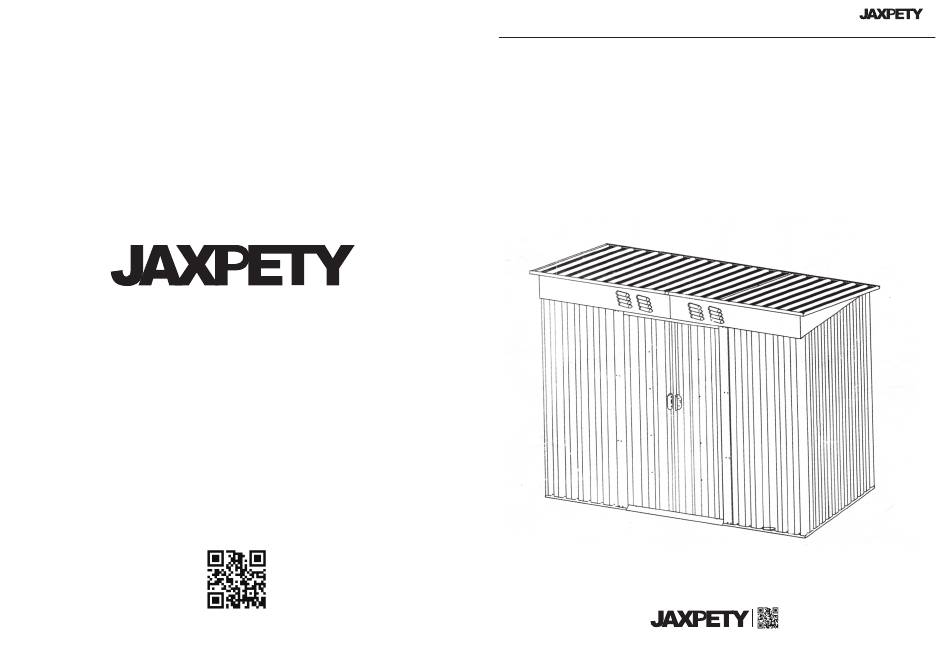

- Page 1 User Manual Instruction for Assembly 4' * 6' Metal Shed Scan ! To find more surprise!
- Page 2 www.jaxpety.com...
- Page 3 You need PART Qty. PART Qty. 2 persons are needed Take 24 hours Tools required 2 2 / （Not included in the product package） 2 2 / 2 2 / 2 2 / 2 2 / 24hours 2 2 /...
- Page 4 PRODUCT ASSEMBLY PRODUCT ASSEMBLY Check the package contents before getting started ! PART Qty. PART Qty.
- Page 5 PRODUCT ASSEMBLY PRODUCT ASSEMBLY Place the top angle bars (9),(10L) and (10R) on the top of Insert the 2 pieces of (G2). Top slider into the Sliding channel(7) and (8). wall panels as showing. Line up the holes with wall panels See blow up.
- Page 6 PRODUCT ASSEMBLY PRODUCT ASSEMBLY Place 2 piece of the Gable panel (12R) and (21R) each, on the top of Place the left door column (25L) and (25R) on the top of the slide channel (6) and side top bar (9). Align the holes and secure basebar (3L) and (3R), Insert into the wall panel, Secare them(F1) Screws from inside.
- Page 7 PRODUCT ASSEMBLY PRODUCT ASSEMBLY Assemble the roof flashing(15)and (17) with roof panels. Place the roof panels (P7) on the top of Gable bolts are fixed with gaskets and nuts Securethem with (F1) panels and roof supports, Line up the boles and then place 4 piece of top corner (GC) on the roof secure with(F1) bolt and nut with washers.
- Page 8 PRODUCT ASSEMBLY PRODUCT ASSEMBLY Assemble the door bar (20) to the door panels (D1) and Fix 2 pieces of the door handle (D2) with (D2) and fix them withbar (27)(28)(29)(30)(31). door panels from inside with (F2) bolt and Then assemble the bottom slider(GD) to the door bar (20) at both bottom edges.
- Page 9 PRODUCT ASSEMBLY PRODUCT ASSEMBLY Slide the door panel assembly into the base bar(3L). Make sure the bottom slider (GD) should slide inside the base bar(3L), Then fixthe door panel top to the top slider(G2) with (F3) screws. See figures below.
