- Page 1 GF Piping Systems Hycleen Automation System User Guide Version 2.5...
-
Page 3: Table Of Contents
Contents 1 About this document 1.1 Follow the instruction manual 1.2 Symbols used in this manual 2 System Overview 2.1 Sample system 2.2 Operating principle 3 Installation 3.1 Changing components in a configured system 3.2 Valves 3.3 Master 3.3.1 Mounting the master on the wall 3.3.2 Connecting the master to the valves via cables 3.4 Uni Controllers 3.4.1 Mounting Uni controllers... - Page 4 4.4.5 Advanced settings 4.5 Temperature 4.6 Flow 4.7 Actuator Automation 4.7.1 Trigger 4.8 Automatic Maintenance Process 4.9 Manual operation 4.9.1 Valve 4.9.2 Valves 4.9.3 Actuators 4.10 Settings 4.10.1 Country 4.10.2 Object 4.10.3 Valves 4.10.4 External sensors 4.10.5 Actuators 4.10.6 Reset 4.10.7 Backup 4.10.8 Alarms 4.10.9 Update...
-
Page 5: About This Document
1 About this document 1 About this document 1.1 Follow the instruction manual The instruction manual is part of the product and an important element within the safety concept. Read and observe instruction manual. Always have instruction manual available by the product. Give instruction manual to all subsequent users of the product. -
Page 7: System Overview

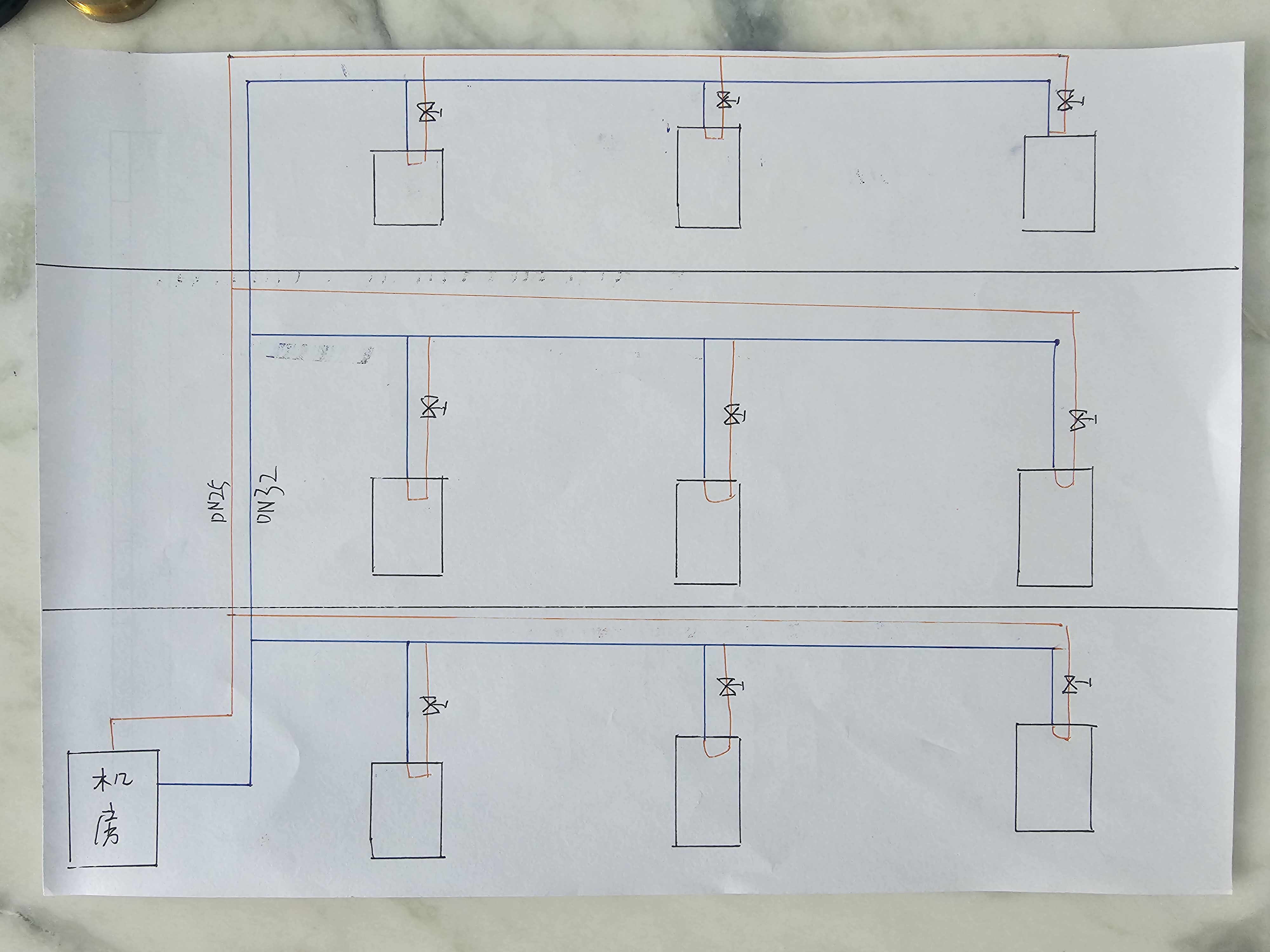

2 System Overview 2 System Overview 2.1 Sample system The sample system shows a water supply with 3 cold water pipes and 5 hot water circulations. 1 Valve LegioTherm K Sensor cable 2 Cold water pipe 10 Flow sensor 3 Water heater 11 Return line (hot water) 4 Temperature sensor 12 Power supply and communication cable... -
Page 8: Operating Principle
2 System Overview 2.2 Operating principle The hot water and cold water circulations contain valves of the types LegioTherm K and LegioTherm 2T. The latter serve hydraulic balancing (circulation system). Both circulations can be flushed. The flush water runs into a drain. The LegioTherm valves are equipped with a temperature sensor. -
Page 9: Installation
3 Installation 3 Installation 3.1 Changing components in a configured system Applications are reset when changing the hardware components! When changing hardware components in an already configured system (e.g. when instal- ling an additional external sensor), all applications are reset to the factory settings. The valve parameters remain unchanged. -
Page 10: Valves
3 Installation 3.2 Valves The insulation of the valves must be removed for cabling the valves. To remove the insulation, carefully pull apart both parts (1, 2). Make sure that the tem- perature sensor cable is not detached or damaged. Put the insulation aside for later assembly. -
Page 11: Master
3 Installation 3.3 Master 3.3.1 Mounting the master on the wall The housing of the master is attached to the wall using 4 eyelets (1). Drill 4 dowel holes with a diameter of 6 mm into the wall according to dimensional dra- wing and insert the supplied dowels (2). -
Page 12: Connecting The Master To The Valves Via Cables
3 Installation 3.3.2 Connecting the master to the valves via cables The connecting cables include 2 lines for the voltage supply and 2 signal lines. The two cable ends are equipped with the same female plug-in connectors. They are secured to prevent rota- tion and their M12 knurled screws ensure a reliable hold, even in harsh environments. - Page 13 3 Installation Connecting the master Connect one of the plugs of the connecting cable to the left M12 connection (1) of the master and fasten the knurled screw. After that the M12 (2) connection can also be used, for example, (1) for one side of the building, and (2) for the other side. Close the open M12 connection on the last valve with a protection cap (8).
- Page 14 3 Installation Connecting a valve Faulty assembly can cause malfunctions! Carrying out cabling with the power supply switched on could cause damage to the electronic components! Make sure that the master is not supplied with power while cabling! Connect the other plug (2) of the connecting cable to one of the two M12 plugs (3) of the valve and fasten with a knurled screw.
- Page 15 3 Installation Where required: Connect sensor(s) to the valve Faulty assembly can cause malfunctions! Carrying out cabling with the power supply switched on could cause damage to the electronic components! Make sure that the master is not supplied with power while cabling! Connect plug (5) of the sensor to the sensor connection (4).
-
Page 16: Uni Controllers
3 Installation 3.4 Uni Controllers If Uni controllers are installed in the system, the following applies: (Number of LegioTherm valves) + (2 x number of Uni controllers) ≤ 50. Examples: Installed LegioTherm valves additional Uni controllers possible The Uni controller is fully mapped via the BACnet interface, in the REST API interface only the 4-20mA inputs of the Hycleen AS-sensors are processed. -
Page 17: Cabling Uni Controllers
3 Installation 3.4.2 Cabling Uni controllers Faulty assembly can cause malfunctions! Carrying out cabling with the power supply switched on could cause damage to the elec- tronic components! Make sure that neither the master nor Powerbox(es) are supplied with voltage while cabling! The Uni controller offers the following connections: (1) Relay output 24V/230V... - Page 18 3 Installation Relay output 24/230V and connection 4-20mA IN/OUT These connections allow the control of actuators such as, e.g. electric actuators with or without position feedback (5). Actuators connected here can be controlled via the app- lication Actuator Automation. Connect the cable relay 24/230V (3) or 4-20mA IN/OUT (4) of the actuator to the respec- tive connection (1) or (2).
-
Page 19: Additional Components
3 Installation 3.5 Additional components 3.5.1 Extending the connecting cable Use the connector (6) for connecting two connecting cables in series. 3.5.2 Mounting the Powerbox In the case of cable lengths longer than 300 m, switch a Powerbox between two connecting cables. - Page 20 3 Installation Connect the plug of the first connecting cable from the master to one of the M12 plug IN (3) of the Powerbox and fasten with a knurled screw. Connect the plug of the second connecting cable to the next controller to the M12 plug OUT (4) of the Powerbox and fasten with a knurled screw.
-
Page 21: Mounting External Temperature Sensors
3 Installation 3.5.3 Mounting external temperature sensors The external temperature sensor (3, 9952.000, PT1000) is delivered with a converter (2, out- put 4 - 20 mA) and connecting cable (1). Screw the temperature sensor (3) with its screw-in thread AG ¼" to the desired point of the installation. - Page 22 3 Installation With this variation, only the pipe section (6) is installed to an appropriate point of the installation. Position the converter (2) in the included insulation (7). The external temperature sensor is connected to the controller of a valve (flush or cali- bration valve) or Uni controller, for this purpose connect the connection valve (1) to the M8 connection (8).
-
Page 23: Installing The Run Off Monitoring System
3 Installation 3.5.4 Installing the run off monitoring system The run off monitoring system (1) detects whether the water in the run off exceeds the maxi- mum level determined by the installation height of the sensor. It is connected to the controller of a valve (flush or calibration valve) or Uni controller, for this purpose connect the connection valve (1) to the M8 connection (8). -
Page 24: Installing An Uninterruptible Power Supply
3 Installation 3.5.6 Installing an uninterruptible power supply An uninterruptible power supply (UPS) ensures that the connected valves are put into a secure state in case of power failure. The notification "Power Fail Mode", appears on the master, the flush valves are closed and all hydraulic balancing valves are moved to the set leakage volume. The output performance capacity of the UPS must be at least 195 watt. -
Page 25: Connecting The Master Relay 24/230 V
3 Installation 3.5.7 Connecting the master relay 24/230 V The plug connection (8) offers 1 relay 24V and 1 relay 230V each with a potential-free swit- ching contact (changeover contact). Observe the following PIN allocation for this: Relay 24V 1 NO (normal open with relay OFF) 2 C (relay common) 3 NC (normal closed with relay OFF) Relay 230V... -
Page 27: Working With The Master
4 Working with the master 4 Working with the master The master allows the control and steering of all connected components. It is protected from unauthorized access by a password: 137. The available functions depend on the current configuration. A sample configuration is described here. - Page 28 4 Working with the master If some of the components were not recorded correctly, press button (1) to close the dia- log, switch the master off, check that all components are connected correctly, and then switch the master on again. If all valves were recorded correctly, confirm the dialog positively with button (2). The master overview appears.
-
Page 29: Home/Main Menu
4 Working with the master The master is ready. The active applications are marked with a green circle. The applications currently running are marked with an animated blue circle. In area (1), all configured applications can be opened and parameterized. 4.2 Home/main menu Area (1) includes icons for all active applications. -
Page 30: Flush
4 Working with the master 4.3 Flush The flush of a line requires a valve that flows outwardly into a sufficiently large drain. The corresponding valves close completely. For safety reasons, only 1 flush valve is open during flush processes. The flush performance depends on the opening angle of the valve and the water pres- sure:... - Page 31 4 Working with the master The recorded components are first displayed. Select valve entry in area (1) in order to adapt the name of the valve - a virtual keyboard appears for this purpose. Enter the required text for the name of the valve via the virtual keyboard (1). Abort keyboard dialog with x (2) in order not to make any adaptation or activate the key- board entry with the checkmark (3).
-
Page 32: General Procedure
4 Working with the master 4.3.1 General procedure Define title, process and protocol successively: Pressing the fields in area (1) opens the corresponding dialog. Activate data using button (2). 4.3.2 Title The light-colored fields indicate parameters that cannot be adjusted, such as the type. The number of a component is assigned automatically, for example, beginning with the line at the left socket of the master, see Installation. - Page 33 4 Working with the master Adjust the desired date. Abort keyboard dialog with x (2) in order not to make any adjustment or activate the adjustment with the checkmark (3). If the necessary adjustments have been made in the area (1), activate data using button (3) or abort dialog using button (2).
-
Page 34: Process
4 Working with the master 4.3.3 Process Select trigger in the area (1): Time, Temperature or Usage. Once everything has been defined, activate the data using button (3) Abort dialog using button (2) if necessary. The selection options in the area (1) adapt to the selection of the trigger. Here for tem- perature: Define the other parameters in the area (1). -
Page 35: Trigger = Temperature
4 Working with the master 4.3.3.1 Trigger = Temperature The process is started for each individual valve depending on the temperature. Process sequence for cold water (Range = cold) The process is started if the water temperature exceeds the Temperature (default setting: 20 °C). - Page 36 4 Working with the master Process sequence for hot water (Range = hot) The process is started if the water temperature falls below the Temperature (default setting: 50 °C). The lines are now flushed with hot water. The Stop criterion (1) for the flush process is selectable: Either a defined Duration (default setting: 1 min), a Temperature to be exceeded (default setting: 55 °C), or a specific Volume for each flush valve.
-
Page 37: Trigger = Time
4 Working with the master 4.3.3.2 Trigger = Time The flush process is started time-dependent and then implemented for all flush valves in sequence, starting with the first flush valve. The process is started when the set Start time (default setting: 00:00 o'clock) is reached. The Stop criterion (1) for the flush process is selectable: Either a defined duration (default setting: 1 min), or a specific volume for each flush valve (2). - Page 38 4 Working with the master In the case of weekly execution, e.g. Mondays and Wednesdays every week, set the desired weekday, in the example here On weekday Monday and Wed- nesday: Under Every x weeks, set whether execution should take place weekly (x = 1, default settings) or less frequently (x >...
-
Page 39: Trigger = Usage
4 Working with the master 4.3.3.3 Trigger = Usage The prerequisite for this trigger is that each flush valve is connected to the respective flow sensor. The process is started for each individual valve depending on its usage. After each interval, the difference between the consumed water and the set target replacement Volume is flushed. -
Page 40: Protocols
4 Working with the master 4.3.4 Protocols Select frequency (1) of the protocols. Activate the selection with checkmark (4) or discard with x (3). The data recording takes place in line with selected recording rate (2). If the tem- perature difference between the recording points is ≤ 0.5 °C, no value is stored. During a flush process the temperature data is recorded every 2 seconds. -
Page 41: Advanced Settings
4 Working with the master 4.3.5 Advanced settings Allows alteration of the blocking time after a valve adjustment. The valve carries out the next adjustment at the earliest after the expiration of the blocking time. If the necessary adjustments have been made in the area (1), activate data using button (3) or abort dialog using button (2). -
Page 42: Hydraulic Balancing
4 Working with the master 4.4 Hydraulic balancing Hydraulic balancing requires a circulation line. The corresponding valves do not close completely but only up to an adjustable leakage rate (minimum flow, Kvmin). The max- imum opening angle (maximum flow Kvmax) of each valve can also be adjusted. Selecting the application icon for hydraulic balancing opens this dialog, which first dis- plays the recorded components: Select valve entry in the area (1) to adapt the name, leakage rate, and maximum... - Page 43 4 Working with the master Allocation of flow (liters/h) to the opening angle (leakage rate):...
-
Page 44: General Procedure
4 Working with the master The light-colored fields display parameters, which cannot be adjusted. The number of a component is continuously assigned automatically, beginning with the line at the left socket of the master. Button x (2) closes the respective dialog without making any changes. Leakage rate (Kvmin, default setting 15%) and maximum opening angle (Kvmax, default setting 70%) can be adjusted. -
Page 45: Title
4 Working with the master 4.4.2 Title Enter meta data for the protocol in the area (1) (virtual keyboards): title, short title (labeling of App icon), date, author. Activate data using button (3) or abort dialog using button (2). 4.4.3 Process Process type in the area (1) is temperature The other fields change depending on this selection. -
Page 46: Type = Temperature
4 Working with the master 4.4.3.1 Type = Temperature The process is started upon reaching a specific temperature. Process sequence for hot water (Range = hot) If the hot water becomes colder than T hydr. balanc. (here: 57 °C, still thermally safe against legionella), then the process starts and opens the valve. - Page 47 4 Working with the master Risk of injury from hot water and components! Danger of burning and scalding during thermal disinfection! Make sure not to touch the components of the hot water circulation and the drain water during thermal disinfection. Please note that the components and the drained water require some time to cool down after the rinsing process.
- Page 48 4 Working with the master Process sequence for cold water (Range = cold) If the cold water becomes warmer than T hydr. balanc. (here: 25 °C), then the process starts and opens the valve. The resulting cold water circulation lowers the temperature.
-
Page 49: Type = Temperature Static
4 Working with the master 4.4.3.2 Type = Temperature static The process is started daily at a specific Start time. The start time must be selected in such a way that the process of static hydraulic balancing takes place at a time when no water is with- drawn, i.e. - Page 50 4 Working with the master Process sequence for hot water (Range = hot) At the set Start time the first valve regulates its flow to the set T hydr. balanc., in the shown example to 57 °C. Then the second valve regulates its flow, followed by the other valves, and finally the process is repeated until all valves reach T hydr.
-
Page 51: Type = Flow
4 Working with the master Process sequence for cold water (Range = cold) At the set Start time the first valve regulates its flow to the set T hydr. balanc., in the shown example to 15 °C. Then the second valve regulates its flow, followed by the other valves, and finally the pro- cess is repeated until the 4 hours have passed. - Page 52 4 Working with the master Process sequence First the respective valve must be selected under Flow rate. At the start of the Start time process, the opening angle (leakage rate) of each individual valve is set. During this, the valves sequentially adjust based on the flexible average flow of the past 24 hours and the set target valve Flow rate.
-
Page 53: Type = Fixed
4 Working with the master 4.4.3.4 Type = Fixed In this type, the opening angle set for the valve (leakage rate) is not changed. There are also no parameters to be adjusted. The system permanently maintains the opening angel set for each valve, for details of the setting see Leakage rate (>Settings >Valves). -
Page 54: Advanced Settings
4 Working with the master 4.4.5 Advanced settings Allows alteration of the blocking time after a valve adjustment. The valve carries out the next adjustment at the earliest after the expiration of the blocking time. If the necessary adjustments have been made in the area (1), activate data using button (3) or abort dialog using button (2). -
Page 55: Temperature
4 Working with the master 4.5 Temperature This function provides an overview of the temperatures of all internal and external temperature sensors. Here parameters can also be adjusted. Select button (1) to adjust valve parameters. Select button (2) to adjust the logging of temperature data or abort the dialog with button (3). -
Page 56: Flow
4 Working with the master 4.6 Flow This function provides an overview of the flow values of all external flow sensors. Here parameters can also be adjusted. Select button (1) to adjust valve parameters. Select button (2) to adjust the logging of flow data or abort the dialog with button (3). -
Page 57: Actuator Automation
4 Working with the master 4.7 Actuator Automation The application Actuator Automation offers many possibilities, from increased automation of drinking water installations and process safety up to the optimization of energy and hygiene. The central control via the master makes the automation simple, quick, and easy to monitor. Actuator automation allows the programming of actuators that are connected to the master relay interface or to Uni controllers, e.g electric actuators, water heaters, or circulation and dosage pumps. -
Page 58: Trigger
4 Working with the master Overview Area (2) shows the list of connected Uni controllers and master relays. Area (1) shows the settings of the selected relay or 4-20mA input/output. Button (3) saves the changes. Button (4) closes the dialog. 4.7.1 Trigger Actuators with a selected trigger are marked by a triangle (1). - Page 59 (audio or visual), which warns the users of the drinking water installation of increased temperatures during the TD. Flush. The trigger is the flush process of the Hycleen Automation System. At the start of a flush process the status switches to active and remains in place until the flush process...
- Page 60 4 Working with the master Maintenance. The trigger is the automatic maintenance process. If a main- tenance process is started, the status switches to active and remains in place until the maintenance is completed. The status then switches back to not active. This can be used, for example, to trigger a disinfection measure or a flush pro- cess during the maintenance process.
-
Page 61: Automatic Maintenance Process
4 Working with the master 4.8 Automatic Maintenance Process Once a week, the Maintenance application is actuated. It ensures long-term reliable operation of the valves during hydraulic alignment. A basic prob- lem of hydraulic regulator valves is the fact that during operation they are never shut fully or only during maintenance measures. -
Page 62: Manual Operation
4 Working with the master 4.9 Manual operation The following functions are possible here: (1) Manual activation of individual valves (2) Joint activation (opening/closing) of LegioTherm valves according to type: all hydraulic balancing valves (LegioTherm 2T) all flush valves (LegioTherm K) (3) Manual operation of the connected actuators Risk of damage to the flow sensors! Flow sensors potentially installed to flush valves can be damaged if the flow speed is too high (opening degree = 100%)! -
Page 63: Valve
4 Working with the master 4.9.1 Valve The dialog allows the service technician to adjust the valve position using the slider (3). Valve number (1), valve position (4) and temperature (2) at the sensor of the valve are dis- played. Button (5) closes the dialog. -
Page 64: Valves
4 Working with the master 4.9.2 Valves The dialog allows the service technician to manually open and close the selected valves (max. 5 valves at a time). During this, the valves open and close completely (opening degree 100 %/0 %). In flush valves this can lead to a high water output! Select the desired valve type (all, flush valves or hydraulic balancing valves). -
Page 65: Actuators
4 Working with the master 4.9.3 Actuators The dialog allows the service technician to manually adjust the actuators. Select the desired actuator (1). The selection takes place via the cabling to the master relay or Uni controller (relay or 4-20 mA). With a relay, the status is displayed in field (2), while the value is shown with an output 4-20 Button (3) closes the dialog. -
Page 66: Settings
4 Working with the master 4.10 Settings Area (1) contains functional elements for all configured adjustment options. Next to that, the current software version (2) is displayed. 4.10.1 Country The following settings can be adjusted in area (1): Date: Current date, selection dialog Time: Current time, selection dialog plus 24h or am/pm Date format: dd-MM-yyyy or yyyy-MM-dd System of units: Metric or Imperial... -
Page 67: Object
4 Working with the master 4.10.2 Object Data regarding the current property or building can be customized in area (1). View the entries for the concerned building in area (1) and adjust them if necessary (vir- tual keyboard). For this purpose, move the list in the area up or down as required. Button (2) closes the dialog without making any changes. - Page 68 4 Working with the master Area (1) normally displays the parameters that can be adjusted. "Cycles" indicates the movements of the selected valve. 1 cycle consists of 1 x opening and 1 x closing. The expected minimum service life of a valve motor is 100,000 cycles. Adjust the name of the valve and the pipe volume as required.
-
Page 69: External Sensors
4 Working with the master In the default setting, the "lamps on" checkmark is set, i.e. the LED illumination of all attached valves is switched on. To turn the LED illumination on/off, set/deactivate the checkmark. Activate changes with button (3). Button (2) closes the dialog without making any changes. -
Page 70: Actuators
4 Working with the master 4.10.5 Actuators The list in the area (2) displays one line for each actuator that is connected to the mas- ter. Area (1) displays the name of the Uni controller that activates the actuator. Move the list up or down as required. Select the actuator to display detailed information (3) of the Uni controller and actuator. -
Page 71: Backup
4 Working with the master 4.10.7 Backup With this function all protocol data and master settings are backed up and restored in case of undesired changes or problems. All running applications are stopped during the restoration pro- cess. The restoration is protected by a password: 42. Select button (1) to back up all process parameters, setting parameters, and protocol data. -
Page 72: Alarms
4 Working with the master 4.10.8 Alarms The list in area (1) displays the latest notifications. Button (2) closes the dialog. The sorting of the list can be adjusted in the columns of the header (3) : Press once = ascending, press twice = descending. 4.10.9 Update The update of the master with a new firmware is protected by a password: 42. -
Page 73: Export
4 Working with the master 4.10.10 Export This function allows the export of a system configuration protocol or a dump file. The system configuration protocol (commissioning protocol) includes all components connected to the sys- tem as well as the stored application settings. The dump file contains all log data for the system analysis with the commands carried out in the master and can provide information in case of an unexpected event. -
Page 74: Network
4 Working with the master 4.10.11 Network In area (1) you can adjust the network parameters of the master: IP config on Auto- matic makes sure that the IP address of the master is automatically retrieved. Otherwise (Manual) the entered IP address applies. As information (4), the MAC address of the master is displayed. - Page 75 4 Working with the master Notes for HTTPS certificates The RSA cryptographic system is supported by the .pem (privacy-enhanced mail) format. The certificate must be created according to the X.509 standard for the definition of formats for public key certificates. The certificate and the private key must be in the same file.
-
Page 76: Bluetooth
4 Working with the master 4.10.12 Bluetooth The Hycleen Automation System app is available as an Android and Apple version in the respective app stores. It allows status monitoring of valves via a smartphone. The connection is via the Bluetooth access of a valve controller (max. distance 10 m). -
Page 77: Modules
4 Working with the master 4.10.13 Modules By importing the associated license file(s) here, chargeable modules can be activated, such as REST API interface BACnet interface Master relay (free of charge after registration) Actuator Automation The required license file is expected on a USB stick. The parameterization of the BACnet interface takes place via Settings >... -
Page 78: Protocols
4 Working with the master 4.11 Protocols The list of available protocols is displayed in area (1). The sorting of the list can be adjusted in the columns of the header (2) : Press once = ascending, press twice = descending. Button (3) exports all protocols at once via USB (choice of PDF or XML). Selecting an entry in area (1) displays details of the selected protocol in a new dialog: Area (1) displays the meta data of the selected protocol. - Page 79 4 Working with the master Area (1) allows you to select the output format: PDF or XML. Button (2) closes the dialog. Button (3) exports the current protocol via USB. If button (3) is not active, no suitable USB stick is recognized. In this case make sure that the USB stick is correctly inserted and, if required, use a USB stick of another make.
- Page 80 4 Working with the master Exceeded limit temperatures (5) The table in the area (1) provides a clear summary of the temperature messages. Each time a limit temperature is violated, it is displayed in a separate line with details of the valve concerned. Here, you can quickly find out whether there were any critical con- ditions during the protocol period.
-
Page 81: Troubleshooting
In addition, frequently asked questions and problems regarding the Hycleen Automation System are stated together with recommended solutions. Address any additional questions to your contact person at GF Piping Systems or our technical customer service, tel.+ 41 61 975 23 77, e-mail: tkd.jrg.ps@georgfischer.com. -
Page 82: Error Messages
5 Troubleshooting 5.2 Error messages 10004: Power supply < 28V Measures: Check: cable length in line with the specification. 10005: TCP/IP error Measures: Check the cable connections. Check the IP addresses. 10013: PT 1000 Temperature sensor defective Measures: Replace PT 1000 temperature sensor. 10014: PT 1000 temperature sensor not connected Measures: Check the cable connection of the temperature sensor. -
Page 83: Error Management
5 Troubleshooting 5.3 Error management 5.3.1 Problems No LegioTherm valves or Uni controllers recognized Check: Components connected to the left cable output of the master, see Installation. Not all LegioTherm valves or Uni controllers recognized Measures: Check serial cabling. Check maximum number of system components: Number of LegioTherm valves + 2 x number of Uni controllers ≤... -
Page 84: Questions
5 Troubleshooting 5.3.2 Questions Are the settings of the master still in place after a power outage? The master retains all settings in case of a power outage. As soon as the power returns, the master restarts automatically, unless someone intervenes manually, and carries out the respective application according to the settings. -
