Aalto D3N
Installation Manual
Before operating the unit, please read this manual thoroughly and retain it for future reference.
Model No. 502-0x
You are cautioned that any changes or modifications not expressly approved in this manual could void your
authority to operate this equipment.

Description

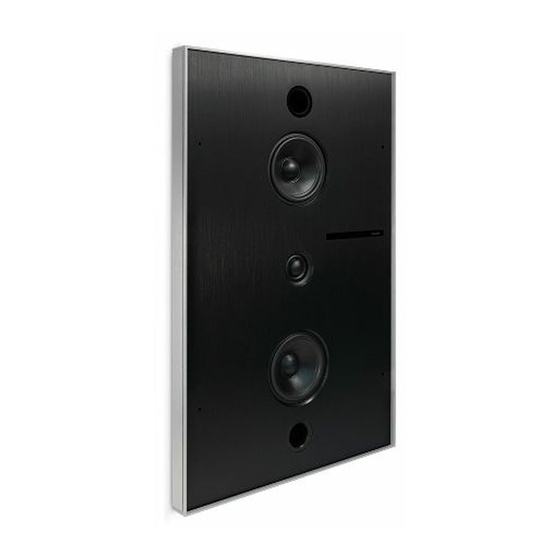

Aalto D3N is an active speaker with a thickness of 27 mm on the wall and 60 mm in the wall.
The speaker can connect an optical input and a Bluetooth audio device.
Aalto D3N can only be used in combination with S4.
The speakers are compatible with all D3 fabric covers (501-xxx not included).
1
2

LED feedback

The front panel has a feedback LED which indicates following statuses:
• Blue: standby mode
• White: speaker is active
• Blinking red: clipping detection

Dimensions

Speaker: 586 x 366 mm (height x width)
Depth in wall: 60 mm
Depth on wall: 27 mm
Wall opening: 565 x 345 mm (height x width)
Clear depth of min. 80 mm from the front of the wall surface - max. 30 mm wall thickness for clamping.
3
4
5

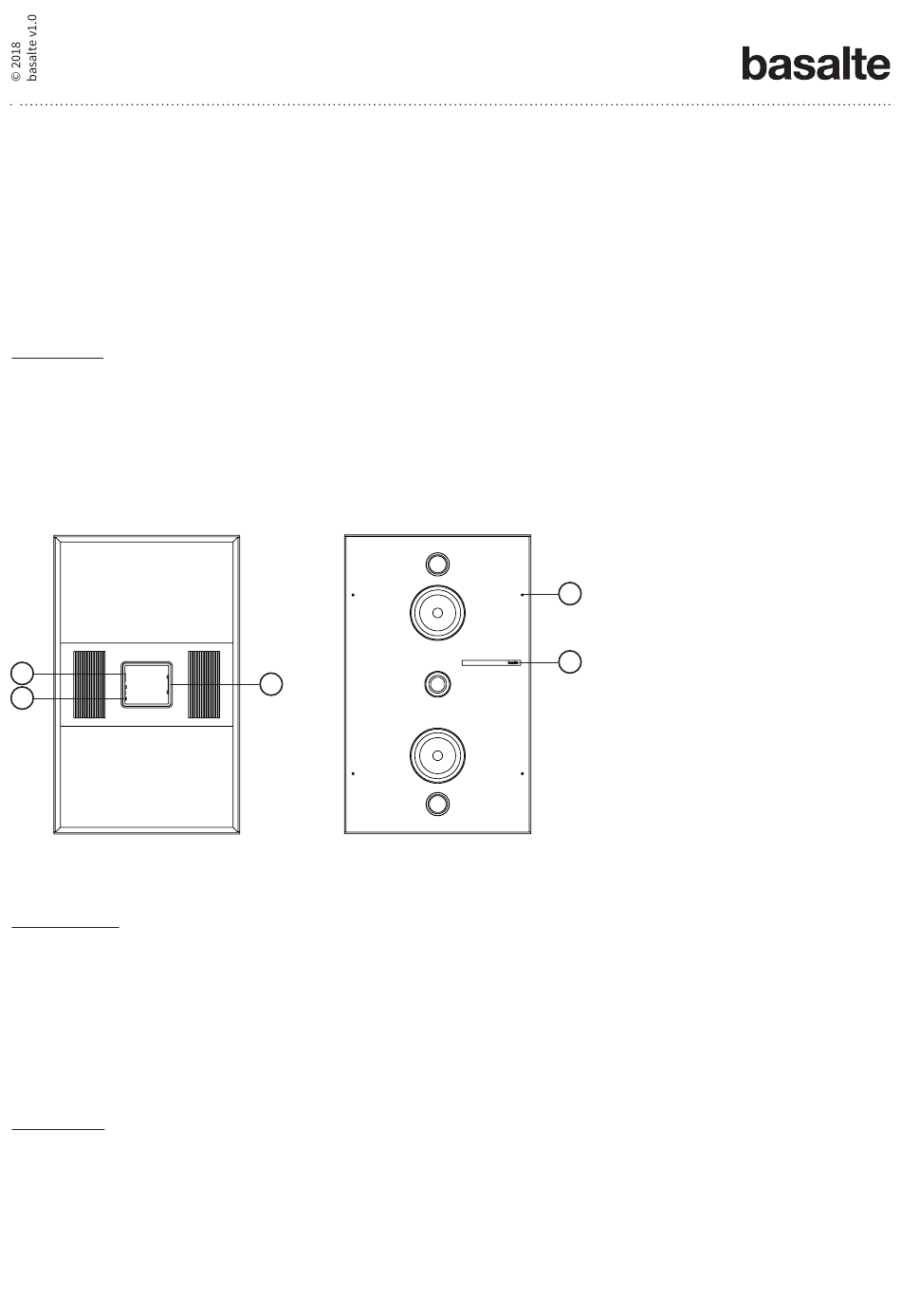

1 Audio network
2 Optical input
3 Power supply (230V AC)
4 Clamp screws (hex key 2.5 mm)
5 Status LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 502-0 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Basalte 502-0 Series

  • Page 1 Aalto D3N Installation Manual Before operating the unit, please read this manual thoroughly and retain it for future reference. Model No. 502-0x You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Description Aalto D3N is an active speaker with a thickness of 27 mm on the wall and 60 mm in the wall.
  • Page 2 3. Gently screw the 4 mounting screws clockwise to clamp the speaker in the wall. Do not use electric mounting tools. 4. Place the fabric cover on the speaker, the cover is hold magnetically in place. 5. Once correctly installed and powered, Basalte Studio configuration tool must be used to configure the D3 speaker. Wiring Audio network Connect Aalto to the dedicated audio network using Ethernet CAT5e cable.
