IV-5/M

Windows Intercommunication System

Simultaneous, automatic and duplex intercom system (hands free), with built-in antilarsen
device.
It is specially useful to be used in spoken communication where glazing separates people
communication from one side to another (in banks, prisons, train station, hospitals,
telephone booths, etc...)
EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM
Tel.: +34 934 772 854 / +34 609 914 787
IV-5/M System
Composition:

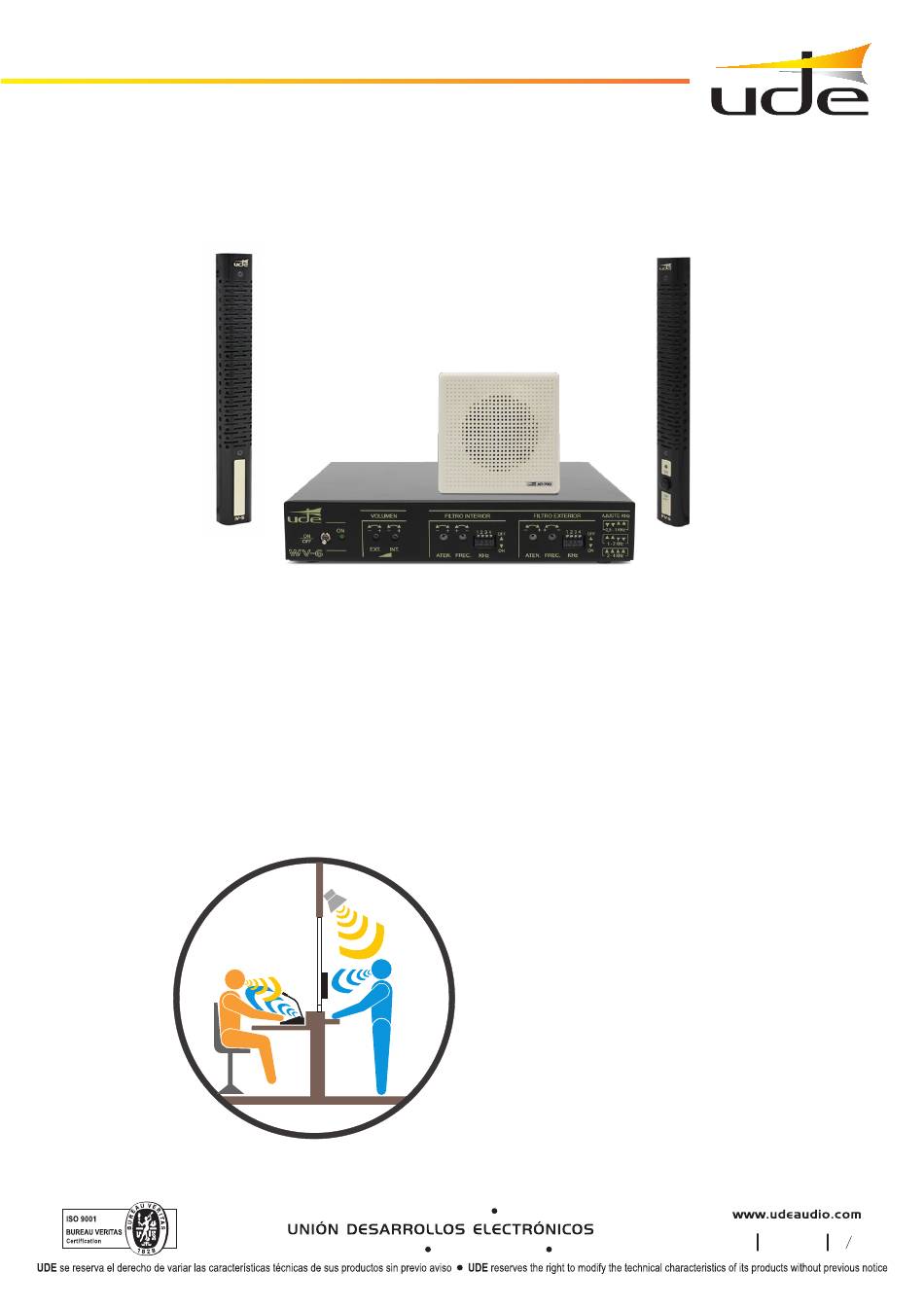

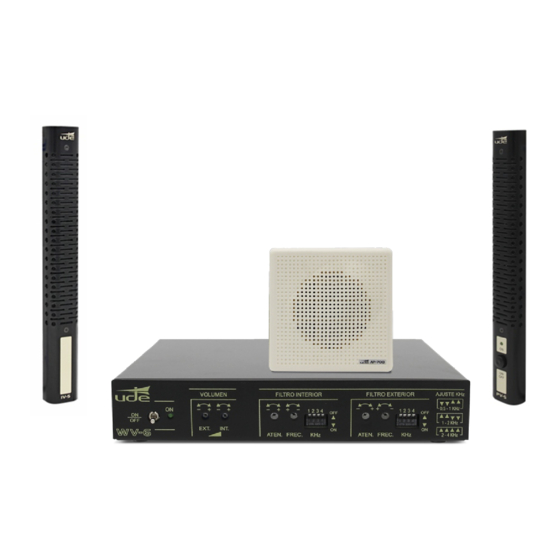

1 Inside microphone PV-5
1 Outside microphone IV-5
1 Main station WV-6
1 Supply WV-12
PUBLIC ADDRESS SYSTEMS
ude@udeaudio.com
BARCELONA - SPAIN
1
5
rev.1
610.328A
