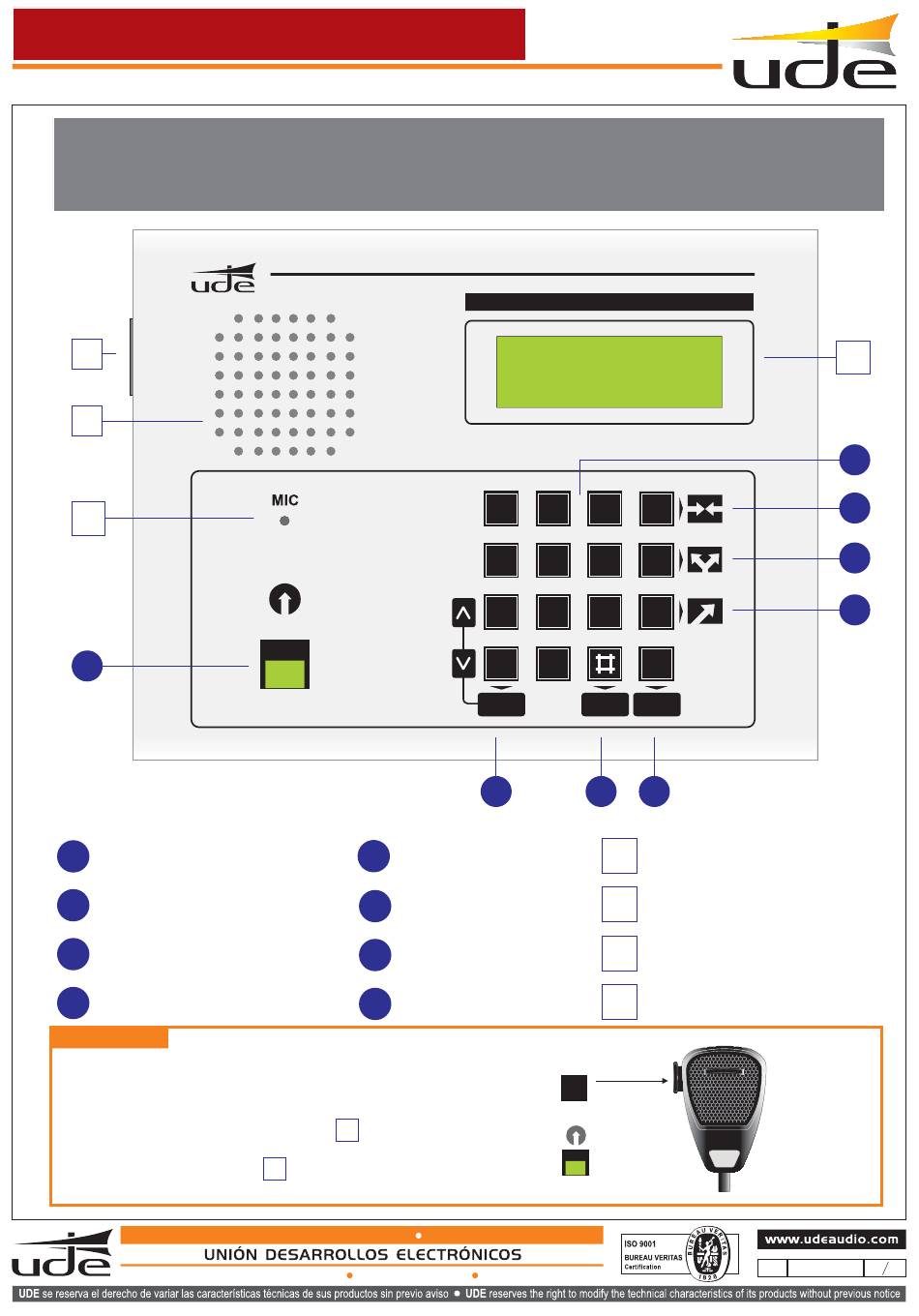

- Page 1 INTERCOM-200 System Centrale ID-200 I N TERCOM - ID CANCEL ENTER DISPLAY Alphanumeric keypard from 0 to 9 VALIDATION button XLR CONNECTOR (5c) INTERCOM button CANCEL button FOR EXTERNAL MICROPHONE SPEAKER SOUND button FUNCTION button MICROPHONE CLEAR button TALK / LISTEN button...
-
Page 2: Table Of Contents
INTERCOM-200 System SUMMARY CONFIGURATION Pag. 3 HOLD DISPLAY Pag. 3 INCOMING CALLS VIEW Pag. 4 CALL ANSWERING Pag. 4 DIRECT CALL TO ZONE Pag. 5 CALL BY NAME ZONE SELECTION Pag. 6 GENERAL CALL TO ALL ZONES Pag. 7 TONE SET / CALL VOLUME / SYSTEM TEST Pag. -
Page 3: Configuration
INTERCOM-200 System CONFIGURATION By the ID-200 UdeConf software you can change the following: Name of each area: By default are called zone 1, zone 2, ... But we can give the name we want to each zone by the letters and numbers, with a maximum of 19 characters. -
Page 4: Call Answering
INTERCOM-200 System CALL ANSWERING To respond in the order of the list, simply press the intercom button ENTER L l a m a d a : To select the call in a different order on arrival, move the pointer down or up using the z o n a 1 up / down buttons z o n a 1 6... -
Page 5: Direct Call To Zone
INTERCOM-200 System DIRECT CALL TO ZONE To select directly a zone, press the I D - 2 0 0 EXTENSION number on the ( v _ . _ ) alphanumeric keypad. P u p i t r e 1 ( 1 ) Press the corresponding number to the extension area you want to _ 1 0 3 z o n a :... -
Page 6: Call By Name Zone Selection
INTERCOM-200 System CALL BY NAME ZONE SELECTION Open the name menu assigned to I D - 2 0 0 each zone based ( v _ . _ ) P u p i t r e 1 ( 1 ) z o n a 1 Search for the calling area, by moving in the z o n a 2 menu the up or down buttons. -
Page 7: Tone Set / Call Volume / System Test
INTERCOM-200 System GENERAL CALL TO ALL ZONE To do this operation it requires an additional amplifier I D - 2 0 0 Press the button ( v _ . _ ) P u p i t r e 1 ( 1 ) CM-23 To speak press Release to listen... -
Page 8: Call Diversion To Another Zone Desk
INTERCOM-200 System CALL DIVERSION TO ANOTHER ZONE DESK I D - 2 0 0 Press the button ( v _ . _ ) P u p i t r e 1 ( 1 ) Select the "Diversion to desk" by S e l e c c i o n a r d e s v i o : A n u l a r d e s v i o D e s v i o a p u p i t r e... -
Page 9: Call Diversion To Telephone
INTERCOM-200 System CALL DIVERSION TO TELEPHONE To do this operation it requires an IW-18 interface. I D - 2 0 0 Press the button ( v _ . _ ) P u p i t r e 1 ( 1 ) Select the "Diversion to phone"... -
Page 10: Call Response By Telephone
INTERCOM-200 System CALL RESPONSE BY TELEPHONE To do this operation it requires an IW-18 interface. I D - 2 0 0 ( v _ . _ ) P u p i t r e 1 ( 1 ) A call is received on the SR-200 desk. Is indicated on the display, and automatically send to the phone L l a m a d a :...
