smartheart 01-571 Quick Start Manual

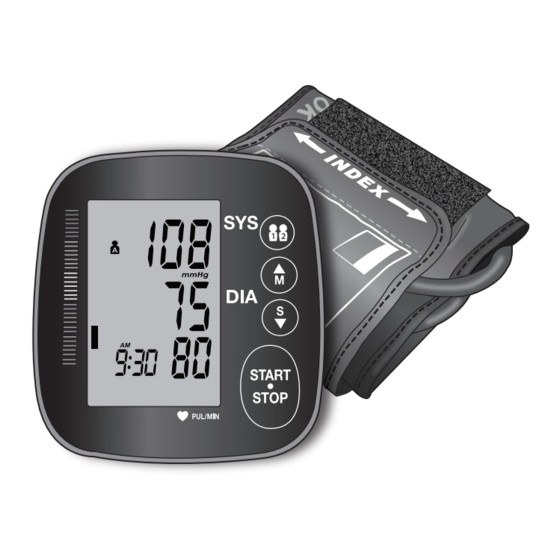

Blood Pressure Monitor
Model # 01-571
THIS QUICK START GUIDE IS INTENDED
AS A SUPPLEMENT TO THE INSTRUCTION
MANUAL. PLEASE READ THE COMPLETE
MANUAL PRIOR TO FIRST USE.
Before applying your blood pressure cuff, be sure you
have selected the appropriate size cuff:
Wide-Range Adult Cuff fits arm circumference
8.6"—16.5" (22—42 cm)
Additional cuffs are available for order on the included
order form or by calling 866-326-1313.
A 15 minute resting period is needed to stabilize the
body prior to taking a reading. No eating, drinking or
smoking while resting.
Applying the Arm Cuff
Remove any constrictive clothing or
jewelry that may interfere with cuff
placement. Wrap the cuff snugly
around your left arm. Position the
cuff's bottom edge approximately
0.5" ABOVE the elbow joint.
Position the air tubing over the
brachial artery (on the inside of
your arm). You should be able to
insert one finger between your arm
and cuff.
IF YOU HAVE ANY QUESTIONS OR ARE EXPERIENCING DIFFICULTIES, PLEASE CALL THE TOLL-FREE
CUSTOMER SERVICE HELP LINE FOR FURTHER ASSISTANCE AT 1-866-326-1313.
Taking Your Measurement
Please read the preceding portions of this manual prior to
taking your first reading.
Reminder, it is important to avoid smoking, eating, taking
medication, alcohol consumption or physical activity 30
minutes prior to taking a reading.
1. Position the monitor on
a flat, stable surface
with the digital display
in view. Insert the cuff
tubing connector into
the port on the left side
of your monitor. Rest
your elbow on a solid
surface with your palm
facing upward. Elevate
your arm so that the cuff
is at the same level as your heart,
Fig 1. Relax your left hand.
2. Press and release the START
STOP button to turn the unit on; the
unit will briefly flash a self-test, Fig
2.
3. The cuff will automatically inflate;
you will see the numbers increase
on the display screen and feel the
cuff inflate.
4. When the measurement is
complete, the cuff will automatically
deflate, then your blood pressure
measurement and pulse reading
results will show on the display
screen at the same time, Fig 3.
5. Consult the included Instruction
Manual for information on
interpreting your reading results.
6. Select START•STOP to turn the
~ 0.5"
unit off and conserve energy and
battery life.
Please Note:
• You can stop the inflation or deflation process of the
cuff at any time by pressing the START STOP
button.
• Many factors such as genetics, age, sex, altitude,
physical activity, anxiety, muscular development,
certain medications or even the time of day can
influence blood pressure.
• Blood pressure varies from moment to moment; even
readings taken after proper rest periods can vary.
Home blood pressure readings may vary as much as
10-20 points from ones taken at your doctor's office.
• Variations in your individual readings should only be
interpreted by your physician or trained health care
professional.
• We encourage you to consult with your physician
Fig. 1
to achieve the maximum benefit from your blood
pressure monitor.
Fig. 2
Fig. 3
#93-2095 11/16
©2016 Veridian Healthcare
