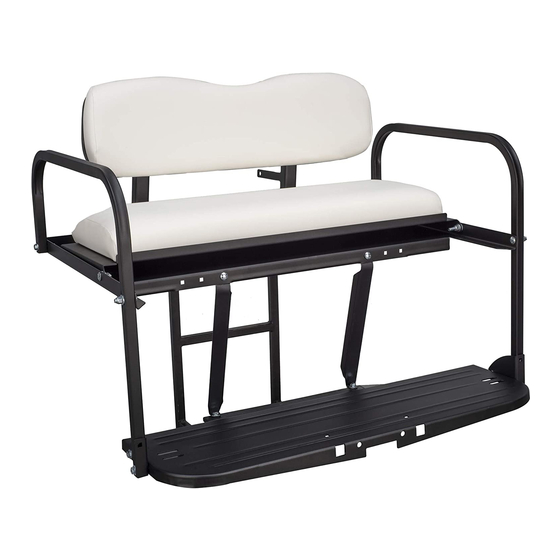

- Page 1 Rear Flip Seat Kit Yamaha Drive instruction manual 1-866-291-5244...
- Page 4 Installation 1. Unbolt supports. 2. Remove gutters and roof supports. 1. Unbolt Supports. 2. Remove gutters and roof supports. Save for re-use. Remove bolts connecting gutters to Remove bolts connecting roof supports Raise roof and remove gutters by Remove bolts connecting roof supports roof supports.
- Page 5 Installation 5. Install frame supports and access panel. 6. Install flip seat frame. 5. Install frame supports and access panel. 6. Install flip seat frame. re-install access panel using factory hardware. Remove existing bolts in bagwell. Bolt front supports to front horizontal frame Bolt rear supports to underside of Bolt front supports to outer side of Drill holes to 3/8”.
- Page 6 Installation Installation Installation 10. Install roof supports and seat cushion. 9. Install step plate. 9. Install step plate. 10. Re-install roof supports and seat cushion. Bolt step plate supports loosely Bolt step plate to side frames connect step plate supports to rear Bolt roof supports to front frame supports Bolt Seat cushion to front frame supports to step plate with 5/16”...
- Page 7 Installation 13. install flip-seat pad. Attach ip seat pad to underside of cargo panel with allen bolts(8). Secure seat pull in between pad and panel. Parts not shown in proportion.
