Bass Pro Shops 8 Rod Standing Rack - Owner's Manual

Thank you for purchasing a Bass Pro Shops rod/combo storage system. Throughout these assembly instruc-

tions, we have included helpful tips to make this assembly process easier.

NOTE: A Phillips screwdriver is necessary for the assembly of this item (not included).

Parts List

Upright Pieces – 2

Upper Notched Cross Piece – 1

Rod Support Cross Piece – 1

Bass Pro Shops Logo Cross Piece – 1

Screws – 12

Screw Receivers – 12

Screw Hole Plugs – 12

Wood Pegs – 4

Lower Notched Cross Piece – 1

Assembly Instructions

Compare your parts to the items in the diagram and parts listing. If you notice that a part is missing, there is

no need to return the rack. Please call 1-800-BASS-PRO for a free replacement. Please be ready to provide the

model number of the rack and the number or letter of the part from the parts listing to our customer service

representative.

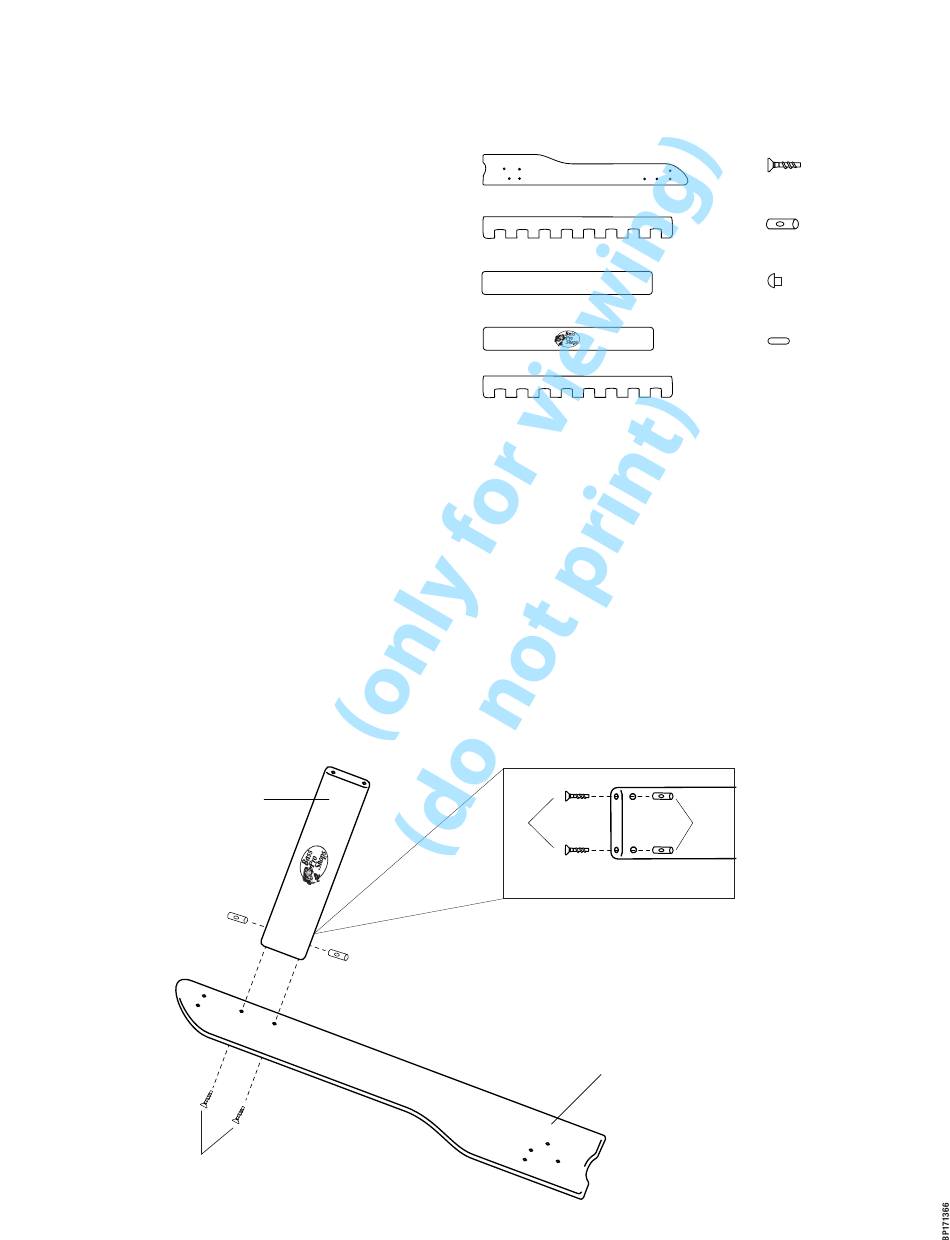

1. Locate an upright piece (A), the Bass Pro Shops logo cross piece (D), 2 screws (E), and 2 screw receivers (F).

Choose an upright piece to begin the assembly. Note that the screw holes on the upright piece are larger

on one side than the other. The larger holes should always be oriented to the outside of the unit. On the

side of part D opposite the logo there are 4 holes. Insert the 2 screw receivers into these holes with the

threaded opening of each part aligned with the holes exiting the end of the piece. Find the 2 correct

corresponding holes on the upright piece, indicated in the image. Make sure the logo faces outward to

the contoured side of the upright piece. Insert 2 screws through the holes on the upright, then into the

end holes of part D so that the screws can be threaded into the screw receivers. Use the screwdriver to

tighten both screws snugly.

back view

Summary of Contents for Bass Pro Shops 8 Rod Standing Rack

Page 1 1. Locate an upright piece (A), the Bass Pro Shops logo cross piece (D), 2 screws (E), and 2 screw receivers (F). Choose an upright piece to begin the assembly. Note that the screw holes on the upright piece are larger on one side than the other.
Page 2 2. Locate the upper notched cross piece (B), 1 screw (E), 1 wood peg (H), and 1 screw receiver (F). Using the same upright piece from step 1, orient part B so that the notches are facing away from the logo and the screw receiver holes are on the bottom side.
Page 3 3. Locate the lower notched cross piece (I), 1 screw (E), 1 wood peg (H), and 1 screw receiver (F). Using the same upright piece from step 1, orient part I so that the notches are facing toward the logo and the screw receiver holes are on the bottom side.
Page 4 4. Locate the rod support cross piece (C), 2 screws (E), and 2 screw receivers (F). Using the same upright piece from step 1, orient part C so the side with no holes is angled outward away from the logo and the 4 screw receiver holes are on the back side.
Page 5 5. Note -Step 5 may be easier with the assistance of another person. Lay the partially assembled unit down on the already connected upright piece. Rest the second, unattached upright piece on top of all of the connected cross pieces so that it is parallel with the rst upright piece. Begin aligning the upright holes with the matching holes on the cross pieces.
Page 6 6. Locate the screw hole plugs (G). Insert these pieces into each of the exposed screw holes on the outside faces of both upright pieces.
Page 7 à la clientèle. 1. Repérez une des pièces verticales (A), la pièce transversale au logo Bass Pro Shops (D), 2 vis (E) et 2 récepteurs de vis (F). Choisissez une pièce verticale pour commencer l’assemblage. Remarquez que les trous pour les vis de la pièce verticale sont plus grands d’un côté...
Page 8 2. Repérez la pièce transversale encochée du haut (B), 1 vis (E), 1 cheville en bois (H) et 1 récepteur de vis (F). En utilisant la même pièce verticale qu’à l’étape 1, orientez la pièce B de manière à ce que les encoches soient tournées à...
Page 9 3. Repérez la pièce transversale encochée du bas (I), 1 vis (E), 1 cheville en bois (H), et un récepteur de vis (F). En utilisant la même pièce verticale qu’à l’étape 1, orientez la pièce I de manière à ce que les encoches fassent face au logo et les trous des récepteurs de vis soient en dessous.
Page 10 4. Repérez la pièce transversale de support de cannes (C), 2 vis (E), et 2 récepteurs de vis (F). En utilisant la même pièce verticale qu’à l’étape 1, orientez la pièce C de manière à ce que le côté sans trou soit en biais vers le bas éloigné...
Page 11 5. Remarque – Cette étape sera peut-être plus facile à réaliser avec l’aide d’une autre personne. Posez l’unité partiellement assemblée sur la pièce verticale déjà connectée. Posez la deuxième pièce verticale détachée sur toutes les pièces transversales connectées de manière à ce qu’elle soit parallèle à la première pièce verticale.
Page 12 6. Trouvez tous les bouchons de trous de vis (G). Insérez-les dans chacun des trous avec des vis exposées sur l’extérieur des deux pièces verticales.
