Assembly
Step 2:
Y V
D

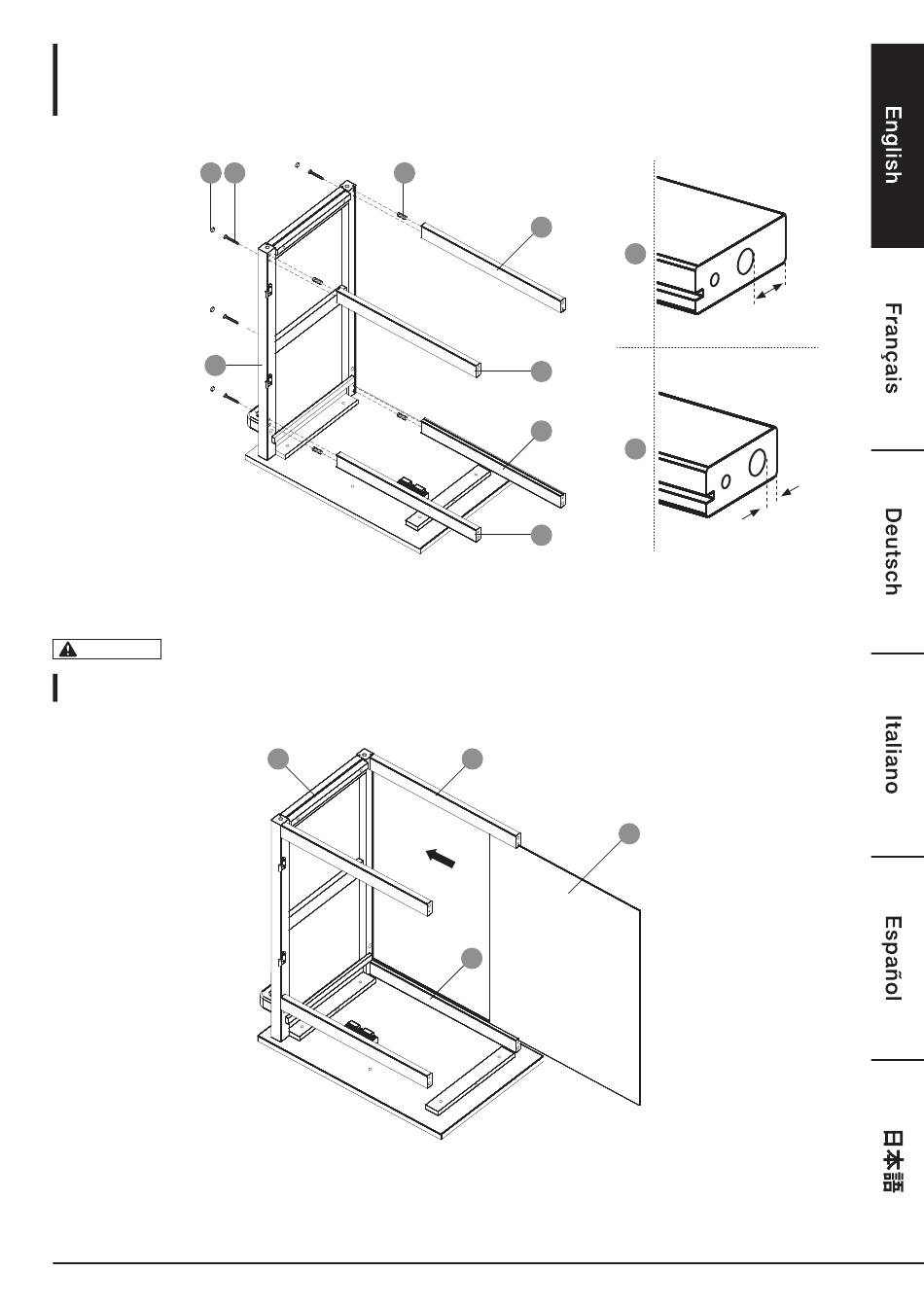

• Attach the lower back cross bar (I1), the lower front cross bar (J), the upper back cross bar (I2) and the upper front
cross bar (K) to the right panel (D). Secure each connection with 1 screw (V) and 1 short wood dowel (R).
Insert the screw covers (Y) after assembly step 4.
NOTICE
Step 3:
• Slide the back panel (G) into the grooves of the lower back cross bar (I1), upper back cross bar (I2) and the right
panel (D).
R
D
I1
I1
J
I2
I2
K
I1
G
I2
5
