Summary of Contents for Geyser GEYSER SYSTEMS HOT PORTABLE SHOWER & CLEANING SYSTEM

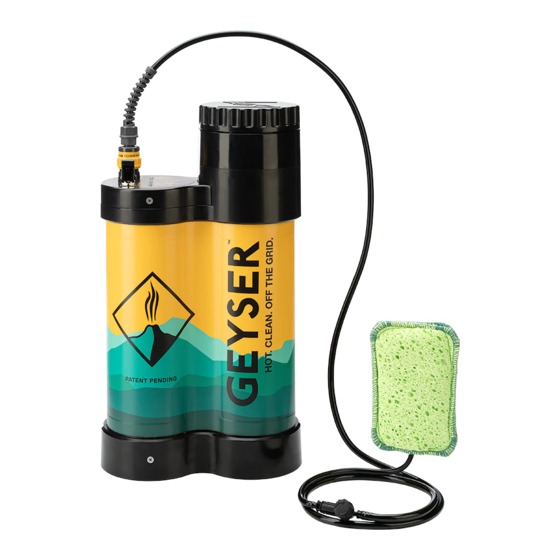

- Page 1 GEYSER SYSTEMS HOT PORTABLE SHOWER & CLEANING SYSTEM...
-
Page 3: Table Of Contents
TROUBLESHOOTING ................MAINTENANCE & CARE ................ LIMITED WARRANTY ................PARTS LIST 1. Geyser 2. 16 ft 12V Power Cord 3. 5 ft Hose Line 4. 1 ft Yellow Replaceable Scrub * Additional replacement scrubs (green, yellow, pink) can be purchased from an authorized retailer. -
Page 4: Warnings
• Do not allow children to use heating system or pour boiling water without adult supervision. • Immediately unplug the power cable or flip switch to “OFF” if the Geyser is empty and the red “HEATING WATER” light is on. -
Page 5: Operating Precautions
Only use potable water. Other liquids damages the pump and voids warranty. • Do not add soap directly into the water container. • Do not use to cook meals or warm bags (ie: baby breast milk) inside the Geyser. • Do not drink from scrub, hose line, or water container. •... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Attaching Scrub To Hose Line 1. Make sure control valve at the end of the hose is in the off position (clockwise). 2. Align the arrows of the scrub connector to the end of the control valve. 3. Push together until the two arrows meet. Twist the end of the control valve quarter turn counterclockwise until locked. - Page 7 Detaching Scrub From Hose Line 1. Turn Geyser off before detaching hose line. 4. Pull apart the scrub and control valve. 2. Twist the end of the control valve quarter 5. Place scrub in reusable storage bag to turn clockwise until unlocked.
- Page 8 Preparing The Geyser System 9. Unplug the power cable immediately if the Geyser is empty and the red “HEATING WATER” light is on. 1. Place Geyser on a flat, non-slip surface. 2. Turn the vehicle’s engine on. 10. Insert and press the gray end of the 3.
- Page 9 15. There are two options for heating water. For the faster heat time using an external gas stove, goto step 16. For heating with the Geyser’s heating system, goto step 24. For a cold shower, goto step 34. Heating Water With External Heating Stove: 16.
- Page 10 Heating Water With 32. Confirm that the red “95 F” light is on and Internal Heating System the “HEATING WATER” light is off. 33. Confirm the “PUMP OFF TOO HOT” light is off. 24. Pour water into the water container. Fill below the black portion inside and near the top of the water container.
- Page 11 45. The blue “LOW WATER WHEN BLINKING” light forewarns when the Geyser is low on water. 46. The Geyser is out of water when the pump starts gurgling. 47. After the pump starts gurgling, continue running the pump for 15 seconds with the control valve open.
- Page 12 Note: It may take over 30 seconds after adding cold water for the thermostat sensor to enable pump operation. 51. Detach hose by sliding down the yellow sides of hose connector. 52. Unplug Geyser and power cord. 53. Follow maintenance and care steps in recommendations (page 14).
-
Page 13: Specifications
SPECIFICATIONS Geyser System with Model Internal Heating System 1 Minute At Highest Flow Washing Time 15 Minutes At Lowest Flow Rate Modes Pump, Off, Heat Electrical Requirements Voltage Requirements 12V DC 2.5 - 3.1 Amps* Pumping Current Requirements 9.8 Amps** Heating Current Requirements 0.8°... -
Page 14: Troubleshooting
“95 F” temperature light or the Dump all hot water out and add “PUMP OFF TOO HOT” light cold water. doesn’t turn off Geyser doesn’t power on Check the LED light at power cord’s plug is on. Check power cord is connected to the Geyser. -
Page 15: Maintenance & Care
The Geyser is under warranty for 1 year from the date of purchase, excluding scrub or accessories. Geyser Systems will repair or replace the Geyser free of charge if returned with proof of purchase and proven to be defective within the warranty period. Customers are responsible for charges when shipping product to Geyser Systems. - Page 16 WARNING - PROP 65 This product contains a chemical known to the State of California to cause cancer...
