Summary of Contents for WAGO 750-642

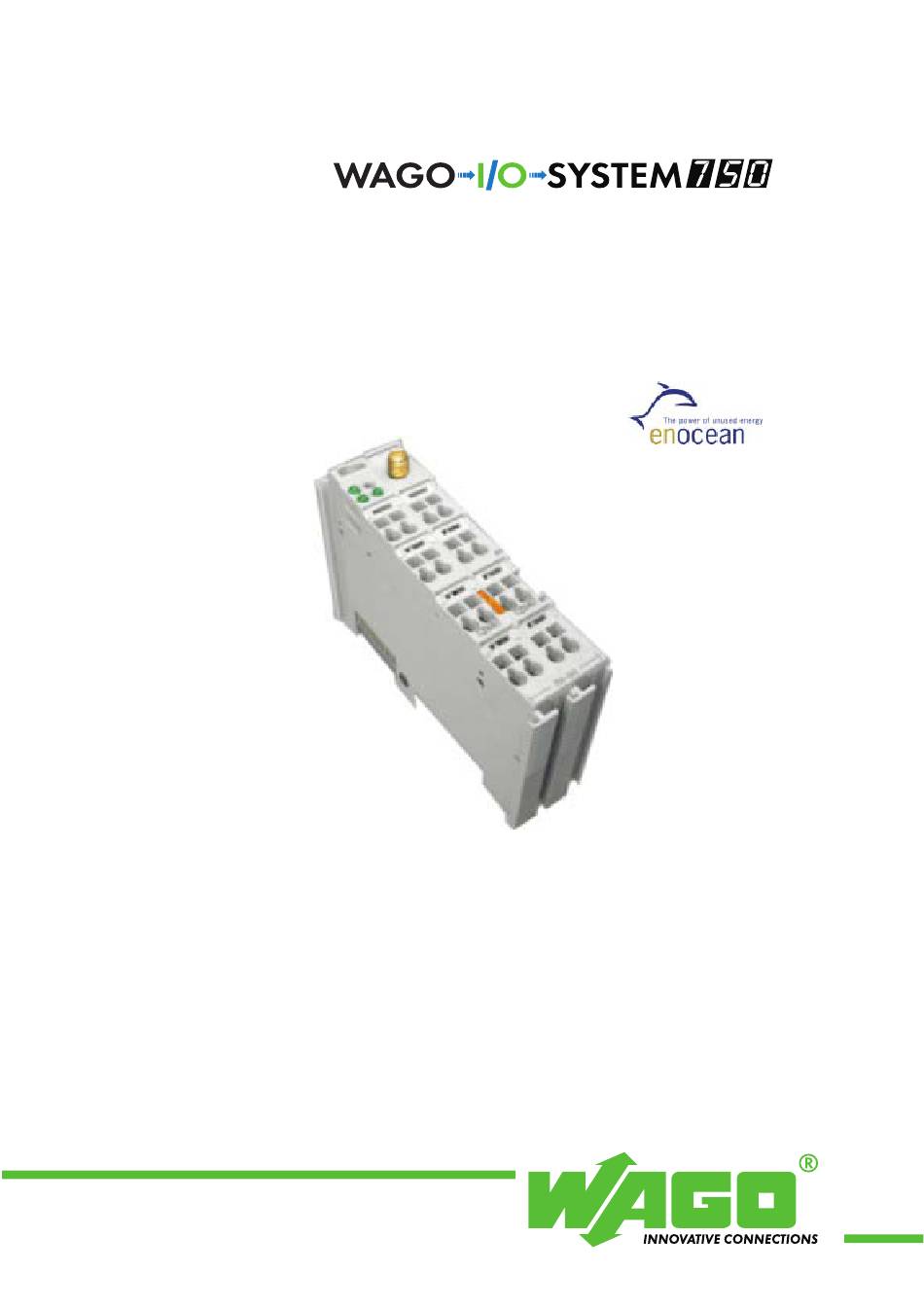

- Page 1 Fieldbus Independent I/O Modules EnOcean Radio Receiver 750-642 Manual Version 1.0.2...
- Page 2 • General Copyright © 2006 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...
-
Page 3: Table Of Contents
Symbols ....................5 Number Notation..................5 Safety Notes ..................... 6 Scope ......................6 2 I/O Modules ....................7 Special Modules ..................7 2.1.1 750-642 [EnOcean Radio Receiver]............ 7 2.1.1.1 View....................7 2.1.1.2 Description..................8 2.1.1.3 Display Elements ................10 2.1.1.4 Schematic Diagram............... -
Page 4: Important Comments
WAGO Kontakttechnik GmbH & Co. KG declines all liability resulting from improper action and damage to WAGO products and third party products due to non-observance of the information contained in this manual. -
Page 5: Symbols
Routines or advice for efficient use of the device and software optimization. More information References on additional literature, manuals, data sheets and INTERNET pages 1.3 Number Notation Number Code Example Note Decimal normal notation Hexadecimal 0x64 C notation Binary '100' Within ', '0110.0100' Nibble separated with dots WAGO-I/O-SYSTEM 750 I/O Modules... -
Page 6: Safety Notes
Do not use any contact spray. The spray may impair the functioning of the contact area. The WAGO-I/O-SYSTEM 750 and its components are an open system. It must only be assembled in housings, cabinets or in electrical operation rooms. Access must only be given via a key or tool to authorized qualified personnel. -
Page 7: O Modules
2.1 Special Modules 2.1.1 750-642 [EnOcean Radio Receiver] EnOcean Radio Receiver Attention Accessories required: WAGO RF-ANTENNA 868MHz/SMA, Item-No.: 758-910 (not included in delivery)! 2.1.1.1 View Antenna socket (SMA) Data contacts 750-642 Fig. 2.1.1-1: EnOcean Radio Receiver 750-642 g064200e WAGO-I/O-SYSTEM 750 I/O Modules... -
Page 8: Description
The module receives the radio transmitter data via an antenna with a carrier frequency of 868.3 MHz situated outside the enclosure. For this an antenna equipped with an SMA plug (WAGO RF ANTENNA 868 MHz/SMA, Item-no.: 758-910) is connecting to the SMA socket fitted to the module. - Page 9 IF and PRIO plug-ins. The module is directly supported by the controllers of the WAGO-I/O-SYSTEM 750. Where a coupler is used, the use of a primary controller is necessary for control of the module. This module can be used with all couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, -323, -324 and -327).
-
Page 10: Display Elements
10 • 750-642 [EnOcean Radio Receiver] Display Elements Fig. 2.1.1-2: Operating principle of the EnOcean Radio Receiver module g064217e 2.1.1.3 Display Elements Designation State Function No operational readiness or the internal data bus communication is interrupted Function green Operational readiness and trouble-free internal... -
Page 11: Technical Data
750-642 [EnOcean Radio Receiver] • 11 Technical Data 2.1.1.5 Technical Data Module Specific Data Current consumption < 80mA (internal) Voltage supply via system voltage DC/DC Isolation 500 V antenna connection/system Bit width 1x 24 Bit in / out (3 Byte Data) - Page 12 Miniature WSB quick marking system More Information Detailed references to the approvals are listed in the document "Overview Approvals WAGO-I/O-SYSTEM 750", which you can find on the CD ROM ELECTRONICC Tools and Docs (Item-No.: 0888-0412) or in the internet under: www.wago.com...
-
Page 13: Process Data
(in exactly the same way as the WAGO RS 232 interface module, part no.: 750-650). Up to 3 input bytes are employed for transfer of the received data. Since the transmit channel of the interface is not used, the 3 bytes for output data are unused. - Page 14 Process Data Function Blocks for WAGO-I/O-PRO Function block Description FbEnocean_Receive Used to communicate with the radio module via WAGO fieldbus controllers 750-8xx FbEnocean_Show_ID_By_ Used to identify the transmitter ID of PTM radio sensors Button FbEnocean_Show_ID_By_Click Used to identify the transmitter ID of radio sensors...
-
Page 15: For Coupler Application With Primary Controller
A detailed description of the method of operation of the internal interface can be found in the manual for the RS 232 C serial interface (item-no. 750-650). This is available on the Internet at: www.wago.com. Attention In opposite to the description in the manual for the RS 232 C serial interface (item-no. - Page 16 16 • 750-642 [EnOcean Radio Receiver] Process Data EnOcean Telegram Bit 7 Bit 0 SYNC_BYTE 1 (A5 Hex) SYNC_BYTE 0 (5A Hex) H_SEQ LENGTH DATA_BYTE 3 DATA_BYTE 2 DATA_BYTE 1 DATA_BYTE 0 ID_BYTE 3 ID_BYTE 2 ID_BYTE 1 ID_BYTE 0...
- Page 17 750-642 [EnOcean Radio Receiver] • 17 Process Data STATUS Field Description a) if ORG = 5 (Telegram from a Piezo Transmitter Module (PTM): Bit 7 Bit 0 Reserved RP_COUNTER Reserved (2 bit) For future use (1 bit) T21=0 ! PTM switch module of type 1,...
- Page 18 18 • 750-642 [EnOcean Radio Receiver] Process Data DATA_BYTE 3..0 Field Description a) if ORG = 5 and NU = 1 (N-message from a Piezo Transmitter Module (PTM): DATA_BYTE2..0 always = 0 DATA_BYTE3 as follows: Bit 7 Bit 0 SRID...
-
Page 19: Notes On Application
750-642 [EnOcean Radio Receiver] • 19 Notes on Application d) if ORG = 7 (4 Byte Data telegram from a Solar Transmitter Module (STM): DATA_BYTE3 Value of third sensor analog input DATA_BYTE2 Value of second sensor analog input DATA_BYTE1 Value of first sensor analog input... -
Page 20: Notes On Installation
1) Use only suitable antennas. Recommended is the WAGO RF-ANTENNA 868MHz/SMA. Attention The WAGO RF-ANTENNA 868MHz/SMA is not included in delivery of the radio receiver module! It is to order as accessories under the Item-No.: 758-910. 2) The antenna is to be mounted on a plate measuring at least 9.8 x 9.8 inches (25 x 25 cm). - Page 21 750-642 [EnOcean Radio Receiver] • 21 Notes on Installation Restriction of the Transmission Range Restriction of the transmission range can also be due to: • Hollow lightweight walls with insulating wool on metal foil, • suspended ceilings with panels made of metal or carbon fiber, •...
-
Page 22: Installation In Case Of Mechanical Stress (Vibration, Shock)
22 • 750-642 [EnOcean Radio Receiver] Installation in Case of mechanical Stress (Vibration, Shock) 2.1.1.9 Installation in Case of mechanical Stress (Vibration, Shock) Attention Mechanical stress such as vibration or shock may cause wire breakage. For that reason, appropriate action needs to be taken to fix the antenna cable. -
Page 23: Further Performance Features
750-642 [EnOcean Radio Receiver] • 23 Further Performance Features 2.1.1.11 Further Performance Features In addition to the outstanding special features of EnOcean radio technology such as freedom from maintenance and flexibility, EnOcean offers further characteristic performance features: • Unique for systems with many sensors EnOcean 99.9... -
Page 24: Ec Certificate Of Conformity
24 • 750-642 [EnOcean Radio Receiver] EC Certificate of Conformity 2.1.1.12 EC Certificate of Conformity 2.1.1.12.1 English WAGO-I/O-SYSTEM 750 I/O Modules... -
Page 25: German
750-642 [EnOcean Radio Receiver] • 25 EC Certificate of Conformity 2.1.1.12.2 German WAGO-I/O-SYSTEM 750 I/O Modules... -
Page 26: French
26 • 750-642 [EnOcean Radio Receiver] EC Certificate of Conformity 2.1.1.12.3 French WAGO-I/O-SYSTEM 750 I/O Modules... - Page 27 750-642 [EnOcean Radio Receiver] • 27 EC Certificate of Conformity WAGO-I/O-SYSTEM 750 I/O Modules...
- Page 28 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • G-32385 Minden Hansastraße 27 • G-32423 Minden Phone: 05 71/8 87 – 0 Fax: 05 71/8 87 – 1 69 E-Mail: info@wago.com Internet: http://www.wago.com...
