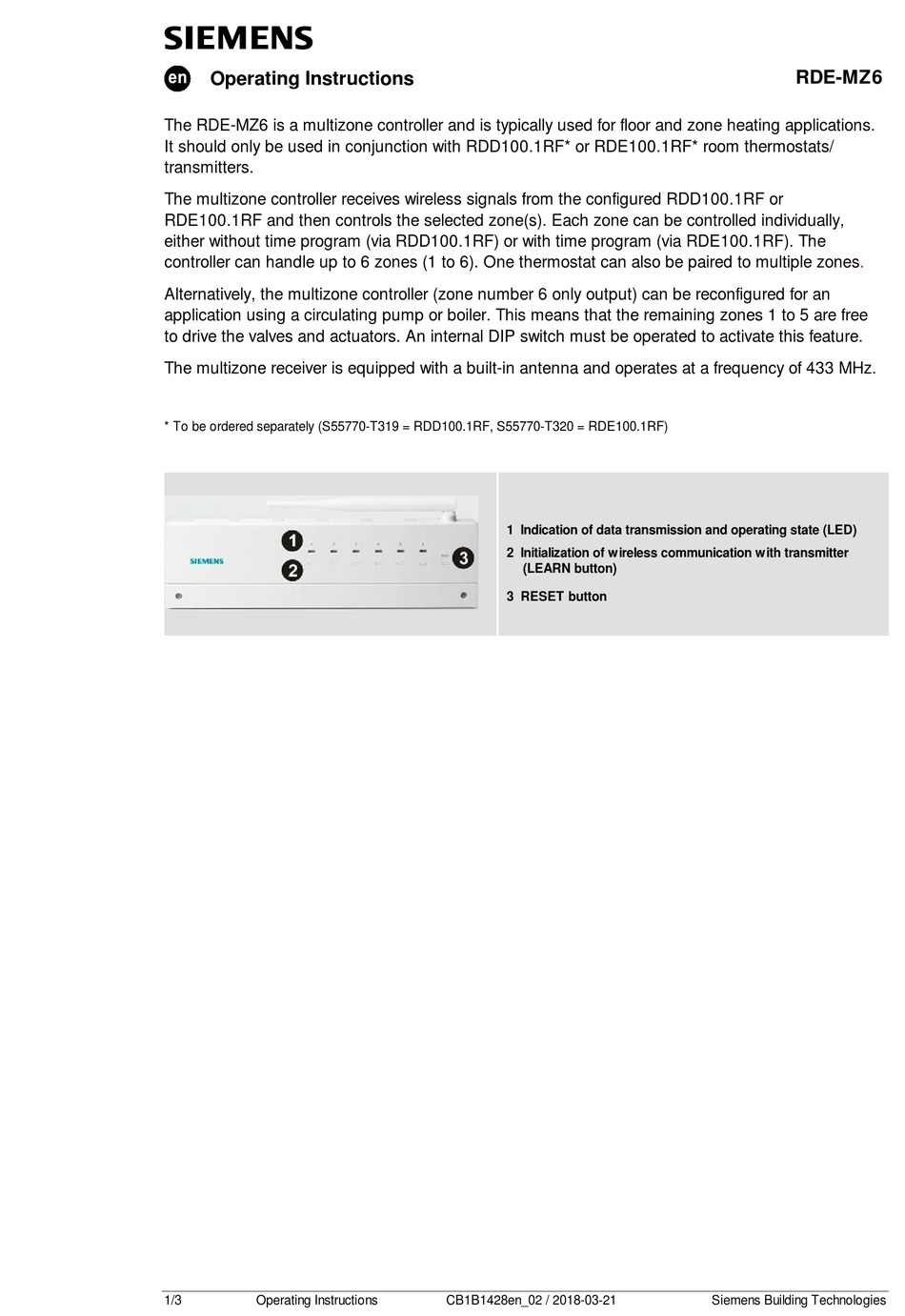

Siemens RDE-MZ6 Operating Instructions

s
Operating Instructions
The RDE-MZ6 is a multizone controller and is typically used for floor and zone heating applications.
It should only be used in conjunction with RDD100.1RF* or RDE100.1RF* room thermostats/
transmitters.
The multizone controller receives wireless signals from the configured RDD100.1RF or
RDE100.1RF and then controls the selected zone(s). Each zone can be controlled individually,
either without time program (via RDD100.1RF) or with time program (via RDE100.1RF). The
controller can handle up to 6 zones (1 to 6). One thermostat can also be paired to multiple
Alternatively, the multizone controller (zone number 6 only output) can be reconfigured for an
application using a circulating pump or boiler. This means that the remaining zones 1 to 5 are free
to drive the valves and actuators. An internal DIP switch must be operated to activate this feature.
The multizone receiver is equipped with a built-in antenna and operates at a frequency of 433 MHz.
* To be ordered separately (S55770-T319 = RDD100.1RF, S55770-T320 = RDE100.1RF)
1/3 Operating Instructions
1 Indication of data transmission and operating state (LED)
2 Initialization of wireless communication with transmitter
(LEARN button)
3 RESET button
