Spartan Tool 100 Installation Instructions

The Air Switch Conversion Kit is intended to update your older Spartan Tool Model 100 to the
current electrical design of Spartan Tool sewer cleaning machines. The new design uses a
switch actuated by an air bulb to keep electrical connections away from wet floors. The kit

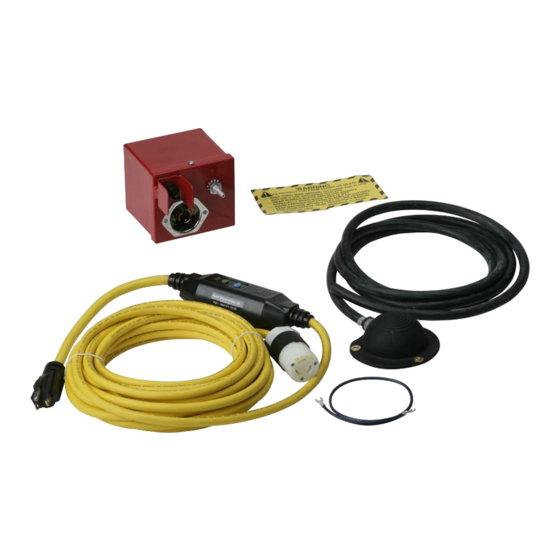

includes an outlet box assembly with switches, a new power cord, an air bulb actuator with
hose and a motor ground wire. Though this is a relatively simple change, it is important to
follow installation instructions provided below for safe operation. This kit will not eliminate
shorts or other problems in a faulty electric motor. If you machine is presently has a short or
current leak, the motor should be "hi-pot" and leakage current tested at a local electrical
repair shop and replaced or repaired, if necessary. In all cases, motor testing is recommended
for the safest machine upgrade.
We have also included in this kit a safety decal to be applied to the machine frame for a
continual reminder of the importance of correct operation and a detailed instruction booklet
to be reviewed by all operators on a regular basis.
