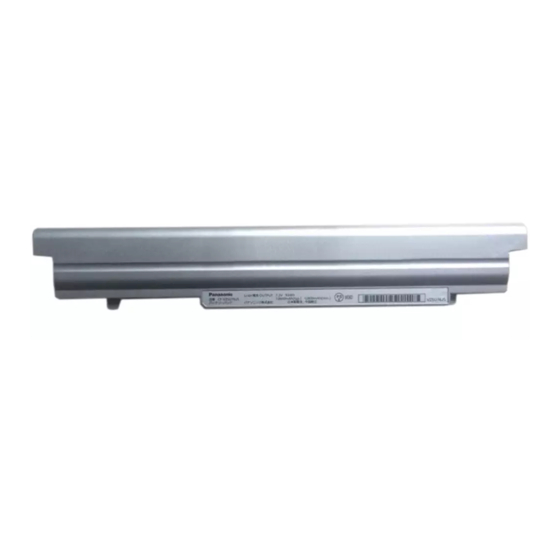

Panasonic CF-VZSU75R Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

Battery Pack (L) / 电池 (L) / 電池 (L) /
배터리 팩 (L) / ชุ ด แบตเตอรี ่ (L) / Pack Baterai (L)
Model No./ 型号 / 型號 / 모델 No /  หมายเลขรุ ่ น  / No. Model :
Printed in Japan
ENGLISH
The  battery  pack  is  designed  for  supplying  power  to  the 
Panasonic  computer  series.  The  battery  pack  is  not  charged 
when it is first purchased. Be sure to charge it before using it for 
the first time.
l  Before  using  the  battery  pack,  read  this  Operating  Instruc-
tions  and  the  relevant  portions  of  the  computer's  Operating 
Instructions and Reference Manual carefully.
For  use  with  I.T.E.  Listed  Notebook  Computer,  Panasonic, 
Model CF-SX2. (The statement based on UL standards.)
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
Warning
• Be Absolutely Sure to Use the Battery Pack With the
Specified Product
  If it is used with a product other than the one for which it 
was designed, electrolyte leakage, generation of heat, ig-
nition or rupture may result.
• Do Not Charge the Battery Using Methods Other Than
Those Specified
  If  the  battery  is  not  charged  using  one  of  the  specified 
*1
methods
, electrolyte leakage, generation of heat, ignition 
or rupture may result.
*1
  Refer to the manual of your product or battery charger.
• Do Not Throw the Battery Pack Into a Fire or Expose
It to Excessive Heat
  Generation of heat, ignition or rupture may result.
• Avoid Extreme Heat (Near the Fire, In Direct Sunlight,
for Example)
  Electrolyte leakage, generation of heat, ignition or rupture 
may result.
• Do Not Insert Sharp Objects Into the Battery Pack,
Disassemble, or Modify It
  Electrolyte leakage, generation of heat, ignition or rupture 
may result.
• Do Not Apply Shocks to the Battery Pack by Dropping
It, Applying Strong Pressure to It, etc.
Electrolyte leakage, generation of heat, ignition or rupture 
may result.
•  If strong shocks have been applied to the battery pack 
or it is visibly damaged, stop using the battery pack im-
mediately.
• Do Not Short the Positive (+) and Negative (-) Con-
tacts
  Generation of heat, ignition or rupture may result.
•  Do  not  place  the  battery  pack  together  with  articles 
such as necklaces or hairpins when carrying or storing.
• When the Battery Pack Has Deteriorated, Replace It
with a New One
  Continued  use  of  a  damaged  battery  pack  may  result  in 
heat generation, ignition or battery rupture.
OPERATING INSTRUCTIONS / 使用说明书 / 操作指示 /
사용설명서 / คำ � แนะนำ � ในก�รปฏิ บ ั ต ิ ง �น /PETUNJUK PENGOPERASIAN
CF-VZSU76R
52-M-1
58-E-1
Battery Pack (S) / 电池 (S) / 電池 (S) /
배터리 팩 (S) / ชุ ด แบตเตอรี ่ (S) / Pack Baterai (S)
Model No./ 型号 / 型號 / 모델 No /  หมายเลขรุ ่ น  / No. Model :
How to Replace and Charge the Battery Pack
The battery pack is not charged when it is first purchased. Be 
sure to charge  it before using for the first time.
Refer  to  the  computer's  Reference  Manual  or  the  Operating 
Instructions.
1. Turn off the computer.
2. W hile sliding the left and right latches (A) to the
unlocked position
parallel with the computer.
A
3. S lide the battery pack in parallel with the arrow direction
and attach it so that the left and right projections (B) on
the battery pack match the dents (C) of the computer.
B
B
C
4. Connect the AC adaptor to the computer.
The battery charging starts automatically.
● Charging time and operating time vary according to the state 
of the computer's power supply and the temperature.
● The  battery  pack  may  become  warm  during  charging  or 
normal use. This is completely normal.
Specifications
Model No.
CF-VZSU76R
Type
Li-ion
V
Voltage
7.2 
Capacity
Typical 13600 mAh /
Minimum 12800 mAh
Dimensions
Approx. 292 mm x 
(W x H x D)
20.6 mm x 49.5 mm
{Approx. 11.5" x 0.8" 
x 1.9"}
Weight
Approx. 430 g
{Approx. 0.9 lb}
Refer to the Operating Instructions about the charging time/
operating time.
CF-VZSU75R
DFQW5695ZA  SS0912-0
, push out the battery pack in
CF-VZSU75R
Typical  6800  mAh  /
Minimum 6400 mAh
Approx. 270 mm x 
20.6 mm x 30.5 mm
{Approx. 10.6" x 0.8" 
x 1.2"}
Approx. 220 g
{Approx. 0.5 lb}
