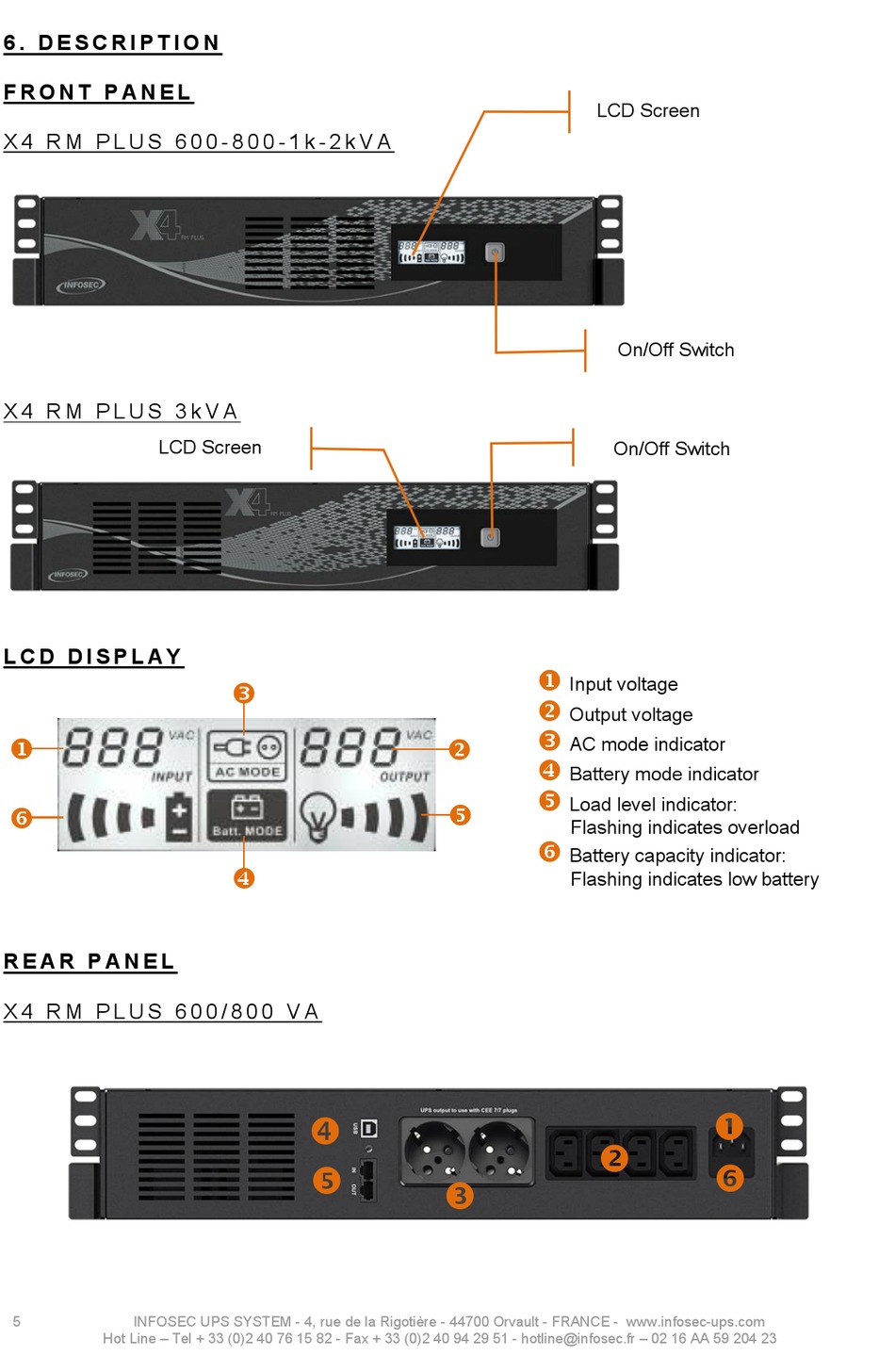

6 . D E S C R I P T I O N
F R O N T P A N E L
X 4 R M P L U S 6 0 0 - 8 0 0 - 1 k - 2 k V A
X 4 R M P L U S 3 k V A
LCD Screen
L C D D I S P L A Y


R E A R P A N E L
X 4 R M P L U S 6 0 0 / 8 0 0 V A
5 INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 02 16 AA 59 204 23



 

LCD Screen

Input voltage

Output voltage

AC mode indicator


Battery mode indicator

Load level indicator:

Flashing indicates overload

Battery capacity indicator:
Flashing indicates low battery




On/Off Switch
On/Off Switch




