Star Tent
Assembly Instructions

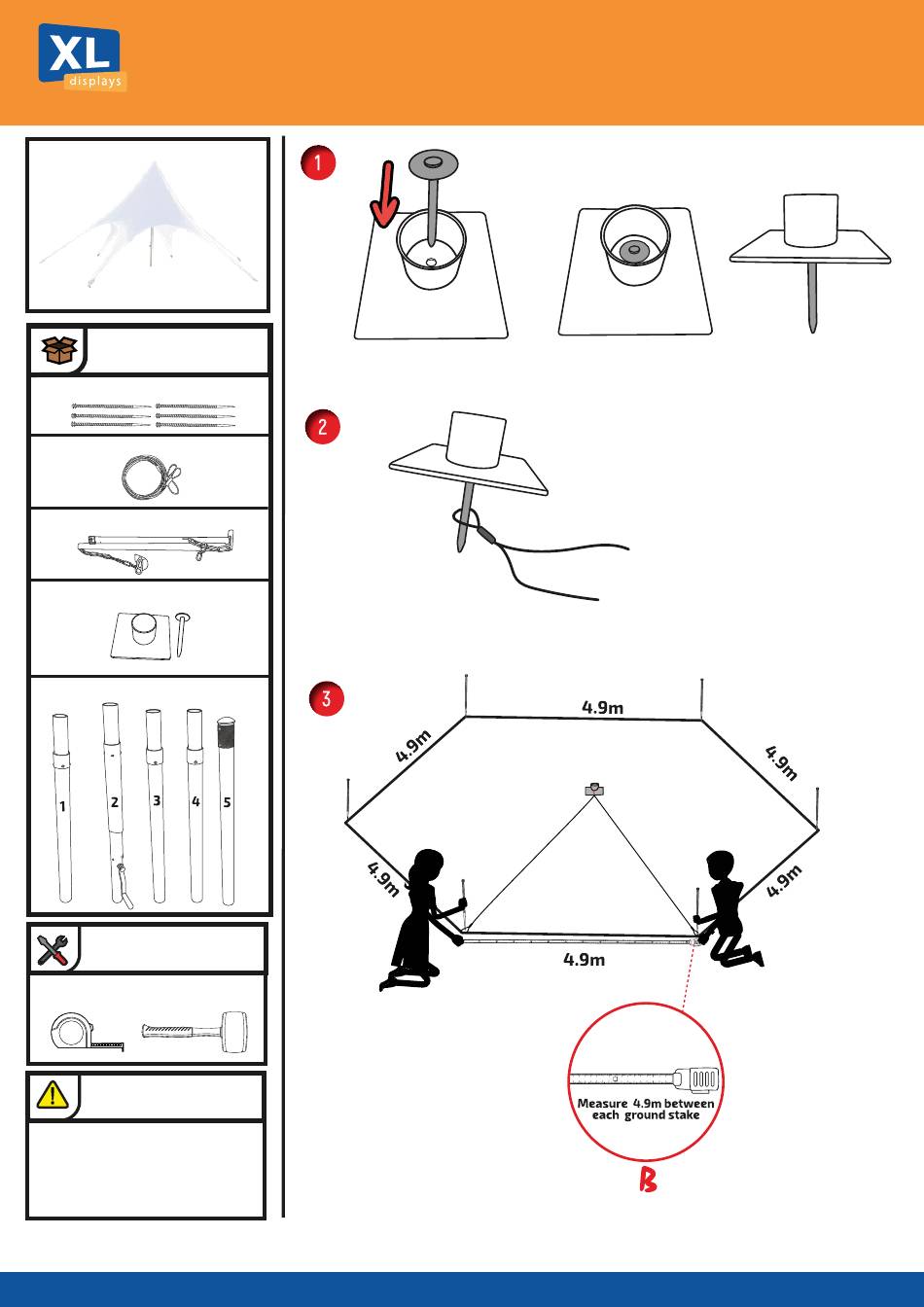

PARTS
(NOT TO SCALE)

Ground Stakes (x6)

Wire rope setting-out guide (x1)

Ground Stake Puller (x1)

Base Support and Ground Spike (x1)

Poles (x5)

TOOLS REQUIRED

FOR ATTENTION

IMPORTANT NOTE:

PAY ATTENTION TO WIND
DIRECTION WHEN
ASSEMBLING/DISASSEMBLING
Ensuring the ground the tent is to be pitched on is soft – use the base pole support to
mark out where the centre of the tent will be.
Slide the looped section of the wire setting rope underneath the central stake of the base
pole support and temporarily secure it into the ground
Extend the wire setting rope to full length and separate the two sections of the rope. Use the
first section of rope to mark out your first point and take the second section of the wire
setting rope and measure 4.9m across from your first point to find the second point of the tent.
www.xldisplays.co.uk
01733 511030

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Star Tent and is the answer not in the manual?

Questions and answers

Related Manuals for XL displays Star Tent

Summary of Contents for XL displays Star Tent

  • Page 1 Star Tent 01733 511030 Assembly Instructions PARTS (NOT TO SCALE) Ensuring the ground the tent is to be pitched on is soft – use the base pole support to mark out where the centre of the tent will be.
  • Page 2 Star Tent 01733 511030 Assembly Instructions NOTE: Remove ground stake from rope before hammering NOTE: Leave 2 inches of the ground stake above the ground Use a mallet to secure one of the ultra-strong ground stakes into the turf where your two points are marked out, taking care to leave two inches of the stake visible above the ground.
  • Page 3 Star Tent 01733 511030 Assembly Instructions SlOT IN Lay out the canopy of the tent and slot three of the metal horseshoe ends of the graphic around the ground stakes, ensuring the centre of the graphic is draped over the central base support and three of the graphic legs are still free.
  • Page 4 Star Tent 01733 511030 Assembly Instructions Begin to move the pole into a vertical position until it is straight and the bottom of the pole (part one) can be firmly slotted into the central pole support base. At this stage you can attach the remaining two horseshoe sections of the canopy to the last two ground stakes.
  • Page 5 Star Tent 01733 511030 Assembly Instructions TURN To tension the graphic, turn the crank on the central pole support and, once complete, remove the crank handle.
  • Page 6 Star Tent 01733 511030 Assembly Instructions DISASSEMBLY TURN...
  • Page 7 Star Tent 01733 511030 Assembly Instructions DISASSEMBLY...
