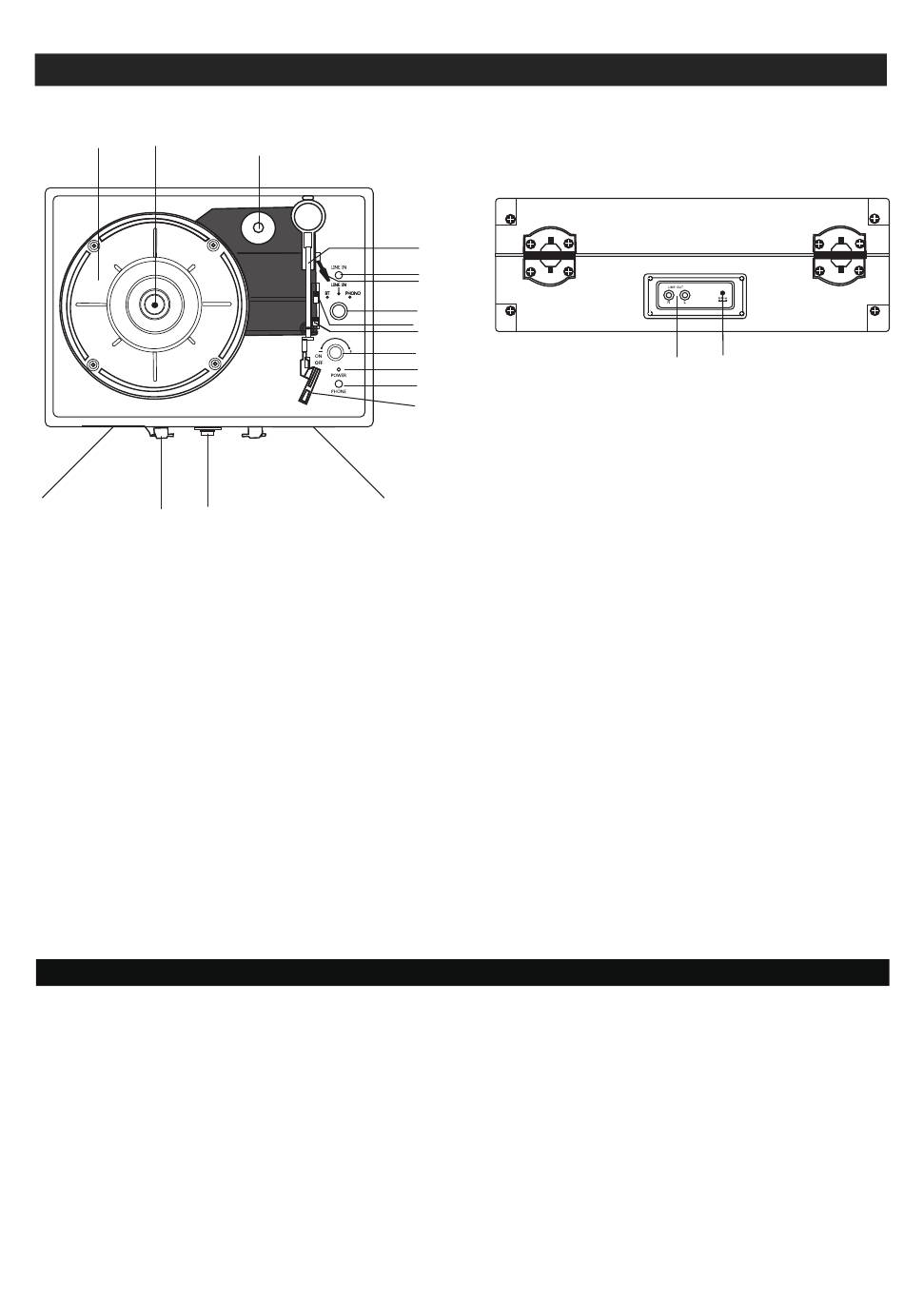

MAIN UNIT
2
1
14
15 16
1. Turntable platter
2. Turntable Shaft
3. 45 RPM Adaptor
4. Tone arm
5. 3.5mm line in jack
6. Lift lever
7. Function selection knob
8. Speed control selection
9. Auto stop on/off switch
10. Power/Volume control knob
11. Charging battery led light indicator
12. Headphone jack
13. Stylus (needle) Cartridge
14. Built-in speaker
15. Handle
16. Lock
17. RCA line-out L/R
18. DC in power jack
POWER SUPPLY
An AC DC Adaptor with the output 5V DC 1A (included)is required for operating the main unit .To
connect the AC-DC Adaptor to the unit and 230V~60Hz AC outlet:
1. Firmly and securely insert the DC plug of the adaptor to the DC IN JACK on the back of the unit.
2. Plug the adaptor's AC plug into a power outlet rated at 120V AC~60Hz.
Rotate the POWER/VOLUME ON/OF SWITCH clockwise to turn on the system. The power indicator
Will light on.
PARTS / BUTTONS
3
4
5
6
7
8
9
10
11
12
13
14
