- Page 1 C100 Chipper Safety, Operations & Maintenance Instructions...
- Page 2 The instructions of this manual are intended to be read and followed to ensure the proper running of the C100 Chipper and the safety of the user. In the case of sale or transfer of the machine, this manual must be handed over. In the event that this manual is damaged or lost, the owner must ask the manufacturer or the former owner for a copy.
-
Page 3: Table Of Contents
DURING OPERATION ..............................9 IF THE MACHINE GETS BLOCKED ........................10 AFTER USE ................................. 10 GENERAL MAINTENANCE ............................11 ADJUSTMENT OR REPLACEMENT OF THE CHIPPER BLADES ..............11 ADJUSTING BELT TENSION ..........................12 TYRE PRESSURE ..............................13 STORAGE ..................................13 CLEANING .................................. -
Page 4: Information About The Machine

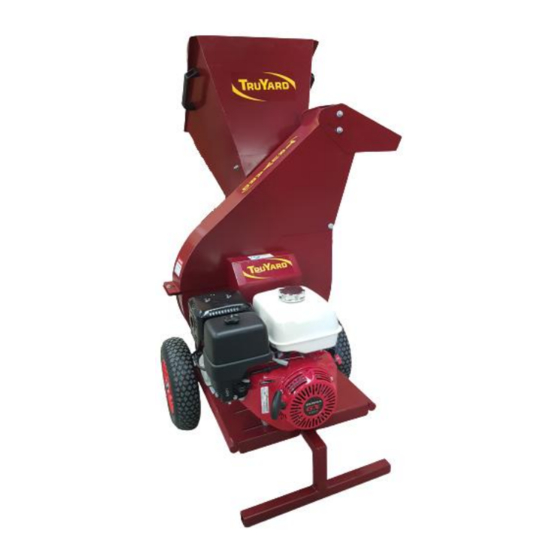

INFORMATION ABOUT THE MACHINE INTENDED USE OF C100 CHIPPER The Truyard C100 Chipper is designed to chip most branches and prunings alongside other organic material such as palm and shrubs. It is not designed to process inorganic waste. MACHINE DESCRIPTION The Truyard C100 Chipper’s chipping mechanism consists of a flywheel with two... -
Page 5: Identification Of Main Parts
IDENTIFICATION OF MAIN PARTS Chipper Handles Chute Discharge Chute Engine Frame and Stand or Towbar and Jockey Wheel Pneumatic Wheels Flywheel (Disconnect the spark plug and ensure flywheel is at a complete stop before opening the discharge chute) -
Page 6: Specifications
Weight 180kg GX390 Engine Type Petrol Inlet Opening Size 150mm x 185mm Discharge Height 1630mm Disk Cutting System Housing Chipper Disk Diameter 565mm Thickness Chipper Disk Thickness 18mm Belt Drive 2 x B31 v-belt Chipper Shaft Diameter 55mm Adjustable Anvil... -
Page 7: Safety Precautions
4) Check that the items to be chipped are free of all foreign debris. This includes and is not limited to nails, wire, rope etc 5) Do not allow children to come near the C100 Chipper. Always ensure that children are at a safe distance and are well away from the machine... -
Page 8: Safety Labels And Descriptions
SAFETY LABELS AND DESCRIPTIONS CAUTION – keep hands and feet away from the discharge and inlet openings on the machine as this could cause injury CAUTION – the operating of the engine, its maintenance and starting must be done after having read the manual to prevent any harmful incidents and misuse of the engine from occurring... -
Page 9: Operating Instructions
Operate the C100 Chipper at near full throttle for optimal performance For the C100 Chipper all branches go through the chipper chute. It is best if the thickest end of the branch gets fed into the chipper chute first; generally this is the end that you cut the branch at. -
Page 10: If The Machine Gets Blocked
IF THE MACHINE GETS BLOCKED During operation it is possible that a branch or pruning with a diameter higher than the working capacity of them machine is entered, and blocks the rotation of the flywheel. To remove the blockage, ensure that the machine has been turned off, the spark plug has been disconnected and that the flywheel has no power supply that will make it rotate while the material is being removed. -
Page 11: General Maintenance
GENERAL MAINTENANCE For the servicing of the machine it is strongly recommended, for safety and quality of the maintenance, for this to be conducted by authorised professionals from Truyard authorised dealers who know the machine. ADJUSTMENT OR REPLACEMENT OF THE CHIPPER BLADES... -
Page 12: Adjusting Belt Tension
In order to fully remove the nut and bolt, use an 8mm Allen key to counter the force from the spanner. Remove the nuts and bolts from the chipper blade. Once all three have been removed, take out the chipper blade. -
Page 13: Tyre Pressure
STORAGE In the case that the C100 Chipper will not be used for an extended period, it is important to store the machine in a location that is sheltered from the weather to avoid damages to the machine. -
Page 14: Parts List
PARTS LIST... -
Page 15: Warranty Policy
WARRANTY POLICY Under the warranty your C100 Chipper is warranted for 2 year from the date of purchase against mechanical defects, faulty workmanship or material. 90 days for commercial use. This warranty covers only the replacement, repair or adjustment of any part which fails as a result of a fault in manufacture or assembly. -
Page 16: Machine Maintenance Schedule
Inspect every 5 hours of use check Replacement of Inspect blades for sharpness, burs and chips every 10 hours of use. the chipper If the blades are damaged replace; if blunt rotate 180° blades Belt adjustment Inspect belts every 10 hours of use looking for cracks and tightness.
