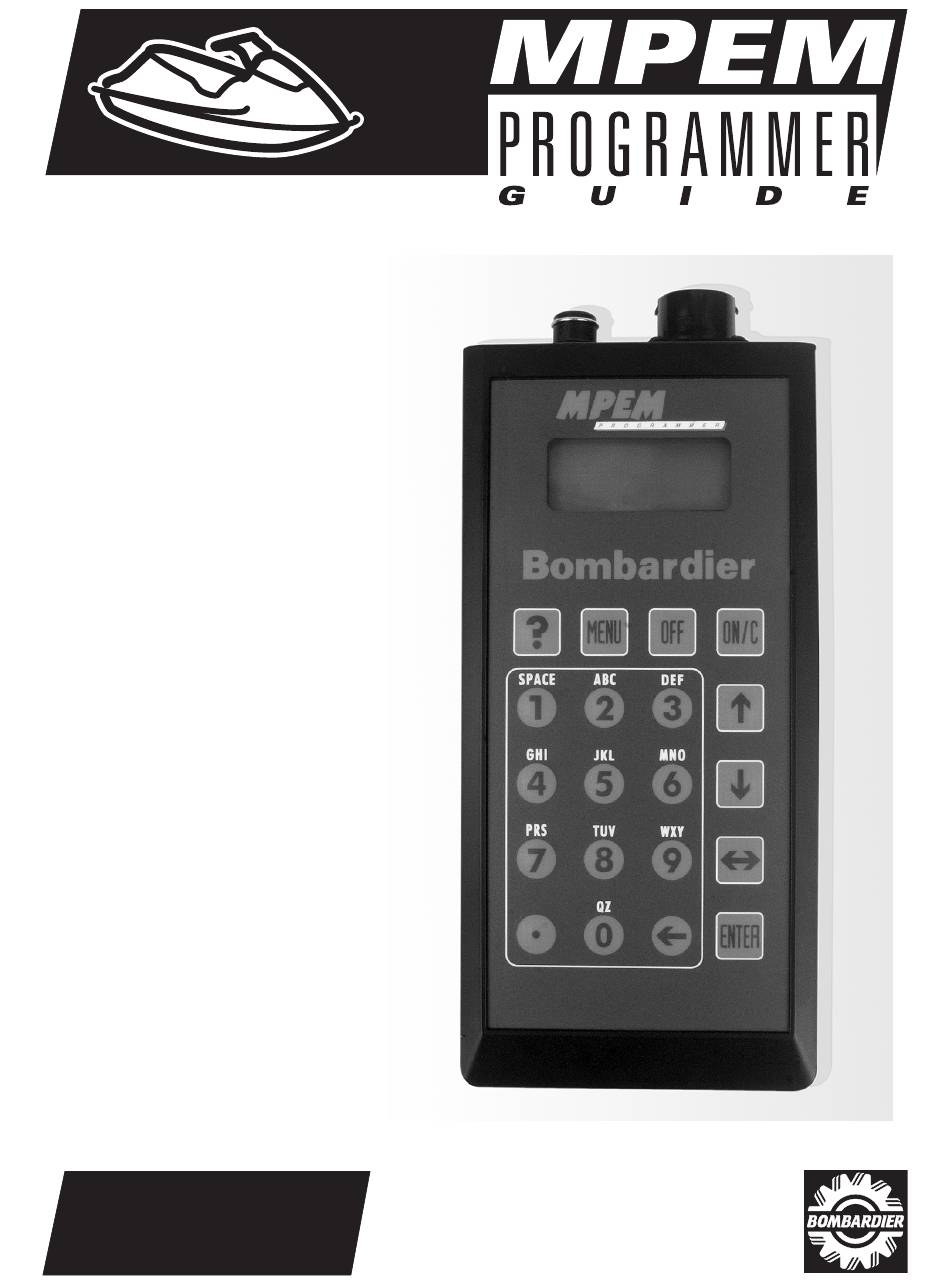

- Page 1 2 1 9 7 0 0 0 9 0 ® *TRADEMARKS OF BOMBARDIER INC. 1997 BOMBARDIER INC. © ALL RIGHTS RESERVED LITHO'D IN CANADA...
-
Page 3: Table Of Contents
MPEM PROGRAMMER GUIDE TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ........................DESCRIPTION OF TERMS....................GENERAL SPECIFICATIONS OF PROGRAMMER ............... DESCRIPTION OF DESS SYSTEM..................KEY PAD..........................CONTROL KEYS ......................... COMMUNICATION CABLE ....................PROGRAMMER PREPARATION .................... PASSWORD DECAL ......................BATTERY INSTALLATION ....................PROGRAMMER START UP.................... - Page 4 MPEM PROGRAMMER GUIDE TABLE OF CONTENTS OTHERS (MAIN MENU)..................... LANGUAGE ........................DISPLAY ADJ........................TEST PGMR ........................ABOUT..........................OPTION ........................... Authorization Number ....................ERROR CODES ....................... BASIC SELF — DIAGNOSTIC MODE ................... ADVANCED DIAGNOSTIC MODE ..................SERVICE REPRESENTATIVE PHONE NUMBERS ............... TIMING CORRECTION CHART....................
-
Page 5: Introduction
MPEM PROGRAMMER GUIDE INTRODUCTION INTRODUCTION This document is to be used as a training supple- ment to your Shop Manual and service school ma- terials . This document will offer you the newest and latest specifications to properly care for and use your MPEM Programmer and watercraft elec- trical system. -
Page 6: General Specifications Of Programmer
MPEM PROGRAMMER GUIDE GENERAL SPECIFICATIONS OF PROGRAMMER GENERAL SPECIFICATIONS OF PROGRAMMER DESCRIPTION OF DESS SYSTEM The basic function of the programmer is to open the record option of the watercraft MPEM mem- The Digitally Encoded Security System (DESS) ory. features an anti-start protection against unautho- This programmer version is V2.3D. -
Page 7: Key Pad

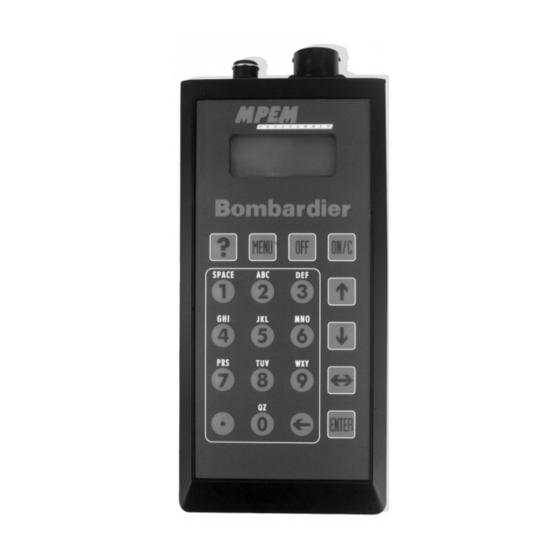

MPEM PROGRAMMER GUIDE GENERAL SPECIFICATIONS OF PROGRAMMER KEY PAD When these keys are touched the cursor will move up or down. When more than The key pad is sub-divided into 2 main areas; the 4 items are listed this will allow you to control key area and the data entry area. -
Page 8: Programmer Preparation
(optional) have been performed. AUTHORIZATION NUMBER Programmer is already updated with the latest software version 2.3. This software version needs to be configured depending on programmer op- tions (Sea-Doo, Ski-Doo or Sea-Doo + Ski-Doo). OPTION SOFTWARE VERSION SKI-DOO Dealer V2.3 M SEA-DOO Dealer V2.3 D... -
Page 9: Language Selection
MPEM PROGRAMMER GUIDE PROGRAMMER PREPARATION LANGUAGE SELECTION When starting the programmer and the wrong M 0 3 2 5 5 V 2 . 3 D language appears, turn the programmer off then press and hold any key and touch ON/C. Two 9 7 / 0 1 / 1 5 beeps will be heard, then the programmer will go C O D E # 9 2 9 1... -
Page 10: Programming Procedure
MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE PROGRAMMING PROCEDURE PROGRAMMER MAIN MENU PROGRAM KEY (MAIN MENU) This option allows to program or delete keys. The watercraft MPEM can be programmed to al- low the use of up to 8 safety lanyards. When 8 1 . -
Page 11: Add Keys
MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE Add Keys The following chart lays out the complete procedure to program a new key. Step 1 1 . C H E C K K E Y S S A V E + Q U I T >... -
Page 12: Delete Keys
MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE Delete Keys The following chart lays out the complete procedure to erase keys. NOTE: At least one safety lanyard must be programmed. Step 1 1 . C H E C K K E Y S S A V E + Q U I T >... -
Page 13: Vehicle Info (Main Menu)
MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE VEHICLE INFO (MAIN MENU) SAVE + QUIT FUNCTION (main menu è vehicle info.) The SAVE + QUIT function needs to be per- > 1 . C U S T O M E R N A M E formed to ensure that information is transferred 2 . -
Page 14: Delivery Date
MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE Press ENTER or any key. Procedure The final screen to see is: From sub-menu VEHICLE INFO, scroll to item no. 3 or select no. 3 VEH. SERIAL #. Press ENTER. Screen shows watercraft serial number. I F T E R M I N A T E D Press ENTER or any key to return to the sub- Y O U C A N U N P L U G... -
Page 15: Program Key
MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE HOUR INFORMATION (main menu è vehicle info.) T I M I N G ( 1 - 8 ) : 1 > 1 . T O T A L H O U R S P R E S S A N Y K E Y . . . 2 . -
Page 16: Mpem Info
• 9 and less refers to SEA-DOO software vehicle MPEM are not in trouble. Start engine • 10 and more refers to SKI-DOO software with safety lanyard in place. – MPEM serial number Procedure –... -
Page 17: Others (Main Menu)
The following is the complete procedure to obtain Procedure authorization number and configure programmer From sub-menu OTHERS, scroll to item no. 2 or option (Sea-Doo, Ski-Doo or Sea-Doo + Ski-Doo). select no. 2 DISPLAY ADJ. Authorization Number Press ENTER. Adjust Screen contrast by pressing 1 for darker Turn programmer ON. - Page 18 ENTER. Refer to phone number table at the end of this document. SEA-DOO Dealer V2.3 D The last screen retains information that Service SKI-DOO + SEA-DOO Representative will need when calling for an au- V2.3 P Dealer thorization number.
- Page 19 MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE MAIN MENU 1. CHECK KEYS 1 . A D D K E Y S 2. PROGRAM KEY 2 . E R A S E K E Y S 3 . S A V E + Q U I T 3.
-
Page 20: Error Codes
MPEM PROGRAMMER GUIDE PROGRAMMING PROCEDURE ERROR CODES A possible ERROR display message might show: E R R O R E R R O R E R R O R E R R O R E R R O R E R R O R A00A3HA This triple display does NOT require programmer replacement. -
Page 21: Basic Self - Diagnostic Mode
MPEM PROGRAMMER GUIDE BASIC SELF — DIAGNOSTIC MODE BASIC SELF — DIAGNOSTIC MODE NUMBER OF BEEPS CAUSE REMEDY 2 SHORT • Everything is correct with the safety • Engine can be started normally. lanyard (good contact and correct lan- (While installing safety yard). -
Page 22: Advanced Diagnostic Mode
MPEM PROGRAMMER GUIDE ADVANCED DIAGNOSTIC MODE ADVANCED DIAGNOSTIC MODE This mode can be activated by touching the start button 5 times without the lanyard attached. At this time the beeper will sound 1 short and 1 long beep. Reconnect the lanyard, if engine starts, everything is OK. -
Page 23: Service Representative Phone Numbers
MPEM PROGRAMMER GUIDE SERVICE REPRESENTATIVE PHONE NUMBERS SERVICE REPRESENTATIVE PHONE NUMBERS The following table lists all available Service Rep- resentative phone numbers when calling for an authorization number or a new password. SERVICE REPRESENTATIVE COUNTRY PHONE NUMBERS UNITED STATES 1-800-366-6992 CANADA 1-800-361-9980 SOUTH AMERICA...
