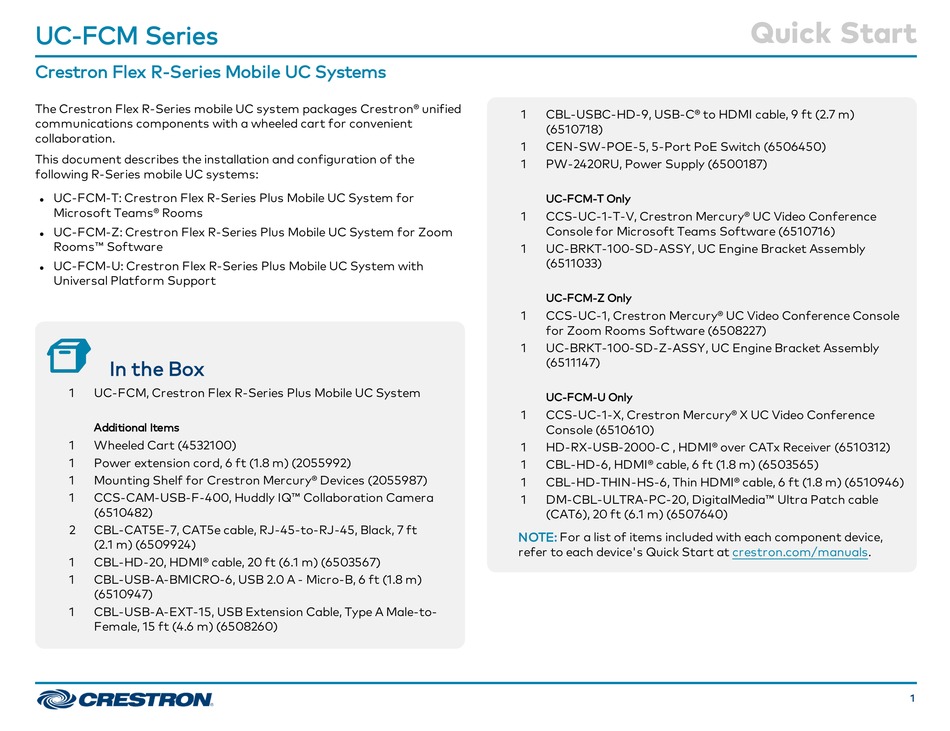

UC-FCM Series
Crestron Flex R-Series Mobile UC Systems
The Crestron Flex R-Series mobile UC system packages Crestron® unified
communications components with a wheeled cart for convenient
collaboration.
This document describes the installation and configuration of the
following R-Series mobile UC systems:
UC-FCM-T: Crestron Flex R-Series Plus Mobile UC System for
l
Microsoft Teams® Rooms
UC-FCM-Z: Crestron Flex R-Series Plus Mobile UC System for Zoom
l
Rooms™ Software
UC-FCM-U: Crestron Flex R-Series Plus Mobile UC System with
l
Universal Platform Support
In the Box
1
UC-FCM, Crestron Flex R-Series Plus Mobile UC System
Additional Items
1
Wheeled Cart (4532100)
1
Power extension cord, 6 ft (1.8 m) (2055992)
1
Mounting Shelf for Crestron Mercury® Devices (2055987)
1
CCS-CAM-USB-F-400, Huddly IQ™ Collaboration Camera
(6510482)
2
CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black, 7 ft
(2.1 m) (6509924)
1
CBL-HD-20, HDMI® cable, 20 ft (6.1 m) (6503567)
1
CBL-USB-A-BMICRO-6, USB 2.0 A - Micro-B, 6 ft (1.8 m)
(6510947)
1
CBL-USB-A-EXT-15, USB Extension Cable, Type A Male-to-
Female, 15 ft (4.6 m) (6508260)
1
CBL-USBC-HD-9, USB-C® to HDMI cable, 9 ft (2.7 m)
(6510718)
1
CEN-SW-POE-5, 5-Port PoE Switch (6506450)
1
PW-2420RU, Power Supply (6500187)
UC-FCM-T Only
1
CCS-UC-1-T-V, Crestron Mercury® UC Video Conference
Console for Microsoft Teams Software (6510716)
1
UC-BRKT-100-SD-ASSY, UC Engine Bracket Assembly
(6511033)
UC-FCM-Z Only
1
CCS-UC-1, Crestron Mercury® UC Video Conference Console
for Zoom Rooms Software (6508227)
1
UC-BRKT-100-SD-Z-ASSY, UC Engine Bracket Assembly
(6511147)
UC-FCM-U Only
1
CCS-UC-1-X, Crestron Mercury® X UC Video Conference
Console (6510610)
1
HD-RX-USB-2000-C , HDMI® over CATx Receiver (6510312)
1
CBL-HD-6, HDMI® cable, 6 ft (1.8 m) (6503565)
1
CBL-HD-THIN-HS-6, Thin HDMI® cable, 6 ft (1.8 m) (6510946)
1
DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable
(CAT6), 20 ft (6.1 m) (6507640)
NOTE:
For a list of items included with each component device,
refer to each device's Quick Start at crestron.com/manuals.
Quick Start
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crestron Flex R Series
Summary of Contents for Crestron Flex R Series
- Page 1 Quick Start UC-FCM Series Crestron Flex R-Series Mobile UC Systems The Crestron Flex R-Series mobile UC system packages Crestron® unified CBL-USBC-HD-9, USB-C® to HDMI cable, 9 ft (2.7 m) communications components with a wheeled cart for convenient (6510718) collaboration. CEN-SW-POE-5, 5-Port PoE Switch (6506450)
- Page 2 In R-Series mobile UC systems, some component mounting is required. A based on the location of the display's mounting holes. device mounting shelf for the included Crestron Mercury device is premounted to the front of the cart. A UC bracket assembly, PoE switch, power supply, power strip, retractable power cable, and retractable Ethernet cable are premounted to the cart's interior for convenience.
-
Page 3: Make Connections
Quick Start UC-FCM Series Crestron Flex R-Series Mobile UC Systems Make Connections To connect the system components: 1. Connect system components to the preinstalled cables. Connect the display power cord to the power strip inside of the bottom rear of the cart. - Page 4 Quick Start UC-FCM Series Crestron Flex R-Series Mobile UC Systems Universal System (UC-FCM-U)
- Page 5 Quick Start UC-FCM Series Crestron Flex R-Series Mobile UC Systems 2. Make LAN and power connections from the bottom rear of the cart as 3. Make device presentation connections as shown in the following shown below using the integrated retractable cables.
-
Page 6: Complete The Installation
Complete the Installation Mount the Display CAUTION: For safety, Crestron recommends that no fewer than two people mount the display. Mount the display mounting bracket arms with the attached display by sliding the mounting hooks over the display plate. Ensure that the display mounting bracket arms and the display are secure before stepping away from the cart. -
Page 7: Mount The Camera
2. Set the camera atop the display and hook the lip to the front edge of the display. 3. Adjust the hinge until the camera sits atop the display. Mount the Crestron Mercury Device To mount the Crestron Mercury device, place the device on the preinstalled device mounting shelf. -
Page 8: Completed Installation
The Crestron Mercury device and computer must be on the same network switch and VLAN. A login with administrative rights for the Crestron Mercury device is required. 3. Log in to the Crestron Mercury device and navigate to DEVICE > Applications. - Page 9 1. Tap Zoom and then tap OK. The device will reboot. Teams Video Password: Enter the login password for the UC 2. Enter the pairing code shown on the display to pair the Crestron Engine. (The default password is “sfb”.) Mercury device with the UC Engine.
- Page 10 4. Tap Settings. If a password is required, enter the password (default is 0000). The Settings screen is displayed. 5. Tap Microphone and select the Crestron Mercury device as the source. www.crestron.com/model/6511538 6. Tap Speaker and select the Crestron Mercury device as the source.
- Page 11 Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. The product warranty can be found at www.crestron.com/warranty.
