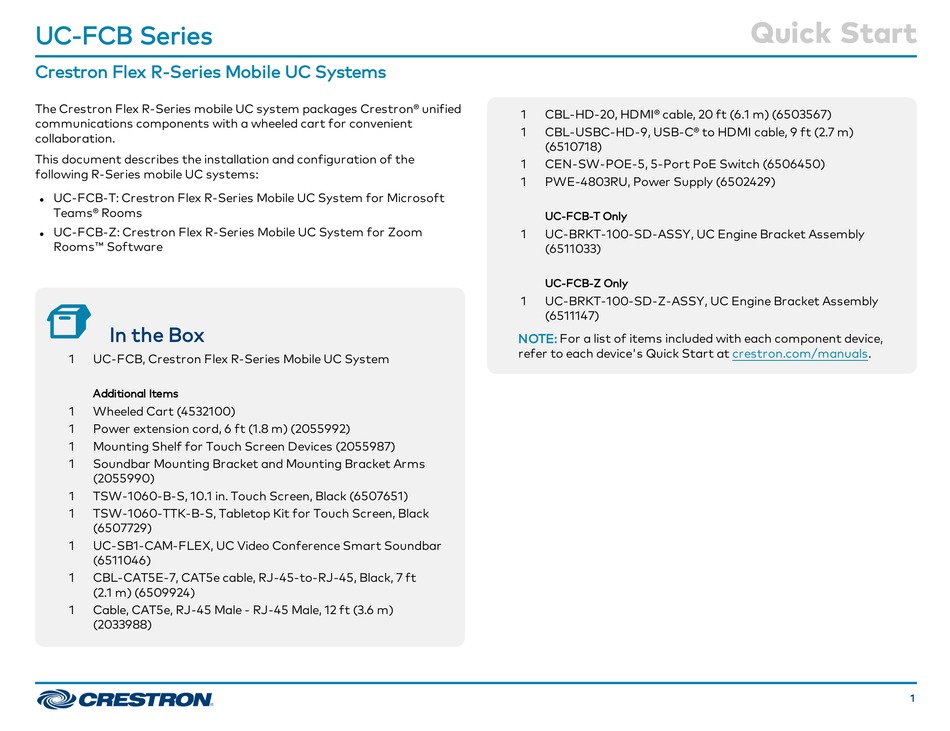

UC-FCB Series
Crestron Flex R-Series Mobile UC Systems
The Crestron Flex R-Series mobile UC system packages Crestron® unified
communications components with a wheeled cart for convenient
collaboration.
This document describes the installation and configuration of the
following R-Series mobile UC systems:
UC-FCB-T: Crestron Flex R-Series Mobile UC System for Microsoft
l
Teams® Rooms
UC-FCB-Z: Crestron Flex R-Series Mobile UC System for Zoom
l
Rooms™ Software
In the Box
1
UC-FCB, Crestron Flex R-Series Mobile UC System
Additional Items
1
Wheeled Cart (4532100)
1
Power extension cord, 6 ft (1.8 m) (2055992)
1
Mounting Shelf for Touch Screen Devices (2055987)
1
Soundbar Mounting Bracket and Mounting Bracket Arms
(2055990)
1
TSW-1060-B-S, 10.1 in. Touch Screen, Black (6507651)
1
TSW-1060-TTK-B-S, Tabletop Kit for Touch Screen, Black
(6507729)
1
UC-SB1-CAM-FLEX, UC Video Conference Smart Soundbar
(6511046)
1
CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black, 7 ft
(2.1 m) (6509924)
1
Cable, CAT5e, RJ-45 Male - RJ-45 Male, 12 ft (3.6 m)
(2033988)
1
CBL-HD-20, HDMI® cable, 20 ft (6.1 m) (6503567)
1
CBL-USBC-HD-9, USB-C® to HDMI cable, 9 ft (2.7 m)
(6510718)
1
CEN-SW-POE-5, 5-Port PoE Switch (6506450)
1
PWE-4803RU, Power Supply (6502429)
UC-FCB-T Only
1
UC-BRKT-100-SD-ASSY, UC Engine Bracket Assembly
(6511033)
UC-FCB-Z Only
1
UC-BRKT-100-SD-Z-ASSY, UC Engine Bracket Assembly
(6511147)
NOTE:
For a list of items included with each component device,
refer to each device's Quick Start at crestron.com/manuals.
Quick Start
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crestron Flex R Series
Summary of Contents for Crestron Flex R Series
- Page 1 Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems The Crestron Flex R-Series mobile UC system packages Crestron® unified CBL-HD-20, HDMI® cable, 20 ft (6.1 m) (6503567) communications components with a wheeled cart for convenient CBL-USBC-HD-9, USB-C® to HDMI cable, 9 ft (2.7 m) collaboration.
- Page 2 Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems 3. Insert the Ethernet cable through the rear opening of the tabletop kit and attach the provided grommet to the cable. Assemble Mounting Components In R-Series mobile UC systems, some component mounting is required. A device mounting shelf for the included touch screen device is premounted to the front of the cart.
- Page 3 Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems Attach the Display Mounting Bracket Arms 3. Follow the display manufacturer's instructions to attach the display to the display mounting bracket arms using the supplied screws and Prior to mounting the display (not included) to the cart, the display washers.
- Page 4 Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems Attach the Soundbar 3. Attach the soundbar bracket arms to the threaded posts on the display mounting bracket arms with the nuts and washers removed in To mount the soundbar: step 2.
-
Page 5: Make Connections
Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems Make Connections To connect the system components: 1. Connect system components to the preinstalled cables. Connect the display power cord to the power strip inside of the bottom rear of the cart. - Page 6 Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems 2. Make LAN and power connections from the bottom rear of the cart as 3. Make device presentation connections as shown in the following shown below using the integrated retractable cables.
-
Page 7: Complete The Installation
Complete the Installation Mount the Display CAUTION: For safety, Crestron recommends that no fewer than two people mount the display. Mount the display mounting bracket arms with the attached display by sliding the mounting hooks over the display plate. Ensure that the display mounting bracket arms and the display are secure before stepping away from the cart. -
Page 8: Completed Installation
The touch screen's IP address is displayed the first time the device is powered on. The IP address can also be found by using the device discovery tool in Crestron Toolbox™ software, through the device's setup screens, or via the XiO Cloud® service. - Page 9 Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems Zoom Rooms Devices 4. Enter the following information in the appropriate fields: Teams Video PC Address: Enter the IP address or hostname of the UC Engine. To configure the R-Series mobile UC system that utilizes Zoom Rooms software (UC-FCB-Z), refer to the instructions below.
- Page 10 Quick Start UC-FCB Series Crestron Flex R-Series Mobile UC Systems Sign In: a. Tap Sign In. Visit the Product Page b. Enter the Zoom Room credentials and tap Sign In. c. Select the conference room name from the list and Scan the QR code to visit the product page.
- Page 11 Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the United States and/or other countries.
