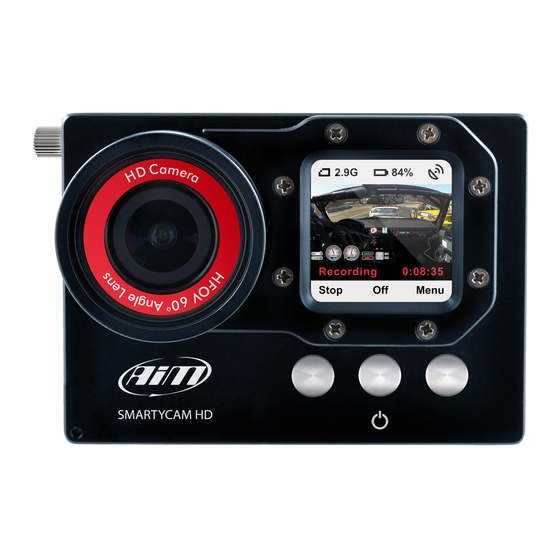

Aim SmartyCam HD Configuring
Hide thumbs
Also See for SmartyCam HD:
- User manual (48 pages) ,
- Manual (24 pages) ,
- Installation (3 pages)
Advertisement
Quick Links
Configuring
1 – SmartyCam and AiM devices
Question:
How can I connect my SmartyCam HD/GP HD with AiM devices and configure both?
Answer:
Those AiM devices that support SmartyCam, in addition to the physical connection with the proper
cables need, together with SmartyCam, a software setup. The table below shows which software you
need to install on your PC:
• SoloDL
• MXL
• EVO4
• ECU Bridge
• Solo 2 DL
• MXL2
• MXS 1.2/MXS Strada 1.2
• MXG 1.2/MXG 1.2 Strada
• MXP/MXP Strada
• MXm
• EVO4S
• EVO5
• SmartyCam
To make the communication between SmartyCam and AiM devices possible, you need to:
• physically connect the devices
• set AiM devices up using the proper software
• configure SmartyCam with RS3
www.aim-sportline.com
RS2
RS2
RS2
RS2
RS3
RS3
RS3
RS3
RS3
RS3
RS3
RS3
RS3
1
Release 1.01 – November 21
st
2018
Advertisement
Related Manuals for Aim SmartyCam HD
Summary of Contents for Aim SmartyCam HD
- Page 1 Configuring 1 – SmartyCam and AiM devices Question: How can I connect my SmartyCam HD/GP HD with AiM devices and configure both? Answer: Those AiM devices that support SmartyCam, in addition to the physical connection with the proper cables need, together with SmartyCam, a software setup. The table below shows which software you need to install on your PC: •...
-
Page 2: Physical Connection
• SmartyCam CAN cable: length 4m V02566060 Each AiM device is equipped with a connector or a cable labelled “EXP” that is to be connected to SmartyCam “EXT” connector: • SoloDL/Solo 2 DL: connect SmartyCam CAN cable to the 5 pins connector placed under the... - Page 3 Configuring 1.2 – RS2 configuration MXL, SoloDL, EVO4 and ECU Bridge are only configurable using RS2. Latest updates are always downloadable from Download Area -> Software of www.aim-sportline.com. Proceed as follows: • run RS2 • connect your device to the PC and press “Device Configuration”...
- Page 4 Solo 2 DL, MXL2, MXG 1.2, MXG 1.2 Strada, MXS 1.2, MXS 1.2 Strada, MXP, MXP Strada, MXm, EVO4S ed EVO5 are only configurable with RS3. Latest updates are always downloadable from Download Area -> Software of www.aim-sportline.com. Proceed as follows: •...
- Page 5 Configuring 1.4 – SmartyCam configuration with RS3 To setup SmartyCam HD/GP HD you need to use RS3 software (RS2 does not support cameras). Proceed as follows: • run RS3 • connect SmartyCam to the PC using the mini USB cable you find in the kit •...
- Page 6 • bottom left of the page each overlay properties appear in specific tabs that need to be setup • once SmartyCam setup click “Save” in keyboard placed on top of overlay layers, go back to configurations page and transmit the configuration to SmartyCam. www.aim-sportline.com Release 1.01 – November 21 2018...
