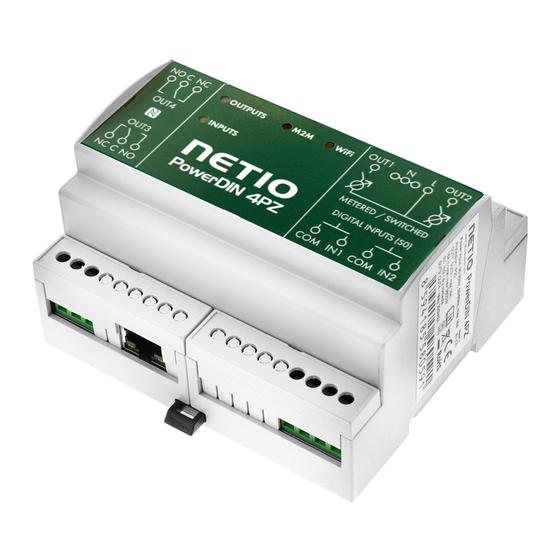

- Page 1 PowerDIN 4PZ QIG (Quick Installation Guide)
-
Page 2: Safety Notices
PowerDIN 4PZ – Quick Installation Guide (QIG) Thank you for purchasing a product of NETIO products a.s. Before using your product for the first time, please read this short guide to avoid problems with incorrect installation or use. For more information, please see the User's Manual available at http://netio-products.com. - Page 3 Minimum system requirements A device with an Internet browser (Firefox, Opera, Mozilla, Chrome etc.) that has JavaScript and Cookies support enabled. Package contents: NETIO PowerDIN 4PZ Quick Installation Guide (QIG) Top/front view 1) 1x RJ45 LAN jack 2) LEDs (OUTPUTS, INPUTS, M2M and WiFi) 3) RJ45 LEDs –...
-
Page 4: Led And Button Functions
NETIO PowerDIN 4PZ can use the Ethernet connection (RJ45) or WiFi connection to network. The description of connection options below (LAN or WiFi) apply for the new devices or devices after “Restoring factory defaults”. 1) Connect the NETIO PowerDIN 4PZ device to the power grid using terminal blocks. -
Page 5: Lan Connection
LAN connection 1) Connect your NETIO device to a LAN with a network cable (RJ45). 2) Wait about 30 seconds until the device starts and address is provided from a DHCP server. The WiFi is completely turned off in this case. - Page 6 4) Select your network in the list of detected networks and press “Next”. (Figure 3) 5) Enter the password for the selected WiFi network. You may also change the device name. If your network does not use the DHCP, unselect this option and manually enter the IP address and other network parameters (for experts only).
- Page 7 6) A page with the connection result is displayed. If it shows “WiFi status: Connected“, check the network parameters and then click “Save&Connect” to save the configuration. (Figure 5) The device then exits the AP mode, connects to the selected WiFi network, and displays a network configuration summary page.
- Page 8 JAVA can be used. An up-to-date JAVA version is required. https://wiki.netio-products.com/index.php?title=NETIO_UDP_Discover_- _Java_based_Multiplatform_-_JAR 3) If your network uses a DHCP server, simply click the IP address in any NETIO Discover version and open the web interface. See video how to find NETIO devices on the local network:...
- Page 9 NFC (Near Field Communication) is a technology supported by some mobile phones (and tablets). Using a mobile phone with NFC support and the NETIO Mobile 2 app, even a device that is powered off can be configured. The device will apply the new configuration as soon as it is powered on.
-
Page 10: Web Interface
The default username / password combination is admin / admin. Click here to change the Output state NETIO Cloud - All NETIO devices supported. - Welcome credit for 3 years. - Open API for the cloud account. - Secured communication. -
Page 11: Specifications
Specifications 100–240 V; 50/60 Hz; 16 A Power 2x, 16 A total / 16 A per output Switched Power outputs Micro-disconnection (µ) (resistive load), SPST 1E5 switching cycles, max. 1.5 kV pulse voltage Power Output relays Switch heat and fire resistance class 1 ZCS (Zero Current Switching) Max 2 W Internal consumption... -
Page 12: Declaration Of Conformity
DECLARATION OF CONFORMITY Manufacturer/Importer: NETIO products a.s. U Pily 3/103 Address: 143 00 Praha 4, Czech Republic Product: PowerDIN 4PZ RED: The product mentioned above to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the Radio Equipment Directive (2014/53/EU). - Page 13 Connect this device to the NETIO Cloud. Control all your relay outputs from one web screen of from one Cloud Open API. NETIO Cloud There is Welcome credit for 3 years included. Check the video on NETIO website how to do it..
