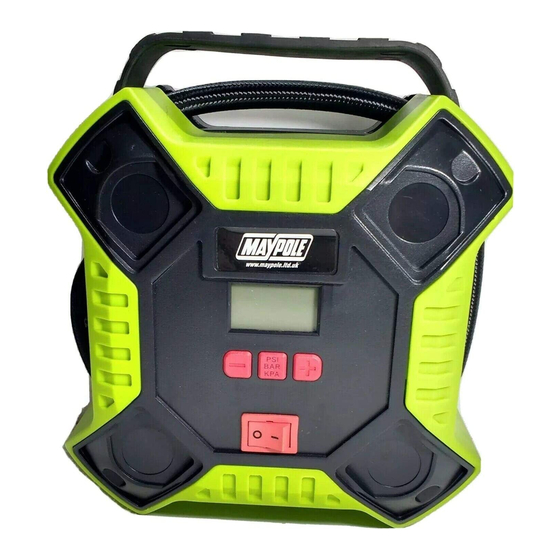

MP7950 12V Automatic Digital Air Compressor
1. TECHNICAL SPECIFICATION
Item No:
Voltage:
Rated
Current:
MP7950
12V - DC
8A
2. PRODUCT SPECIFICATION
1.
ON/OFF main switch
2.
LCD display
3.
Handle
4.
"-" button
5.
"+" button
6.
Unit shift button
www.maypole.ltd.uk
Power
Flow Rate:
Pressure:
100 Watt
12L/Min.
Max.
Sound Pressure
160 psi
<75.2 dB(A)
7.
Compressed air hose
8.
Quick Coupler
9.
12 Vdc vehicle connector
10. Tyre connector
11. Ball needle connector
12. Inflatables connnector
13. LED light
Sound Power
<95.2dB (A)
1
Advertisement
Table of Contents
Related Manuals for MayPole MP7950
Summary of Contents for MayPole MP7950
- Page 1 MP7950 12V Automatic Digital Air Compressor 1. TECHNICAL SPECIFICATION Item No: Voltage: Rated Power Flow Rate: Max. Sound Pressure Sound Power Current: Pressure: MP7950 12V - DC 100 Watt 12L/Min. 160 psi <75.2 dB(A) <95.2dB (A) 2. PRODUCT SPECIFICATION ON/OFF main switch...
- Page 2 MP7950 12V Automatic Digital Air Compressor 3. INTENDED USE Your analogue compressor is designed to be used from the standard 12V dc socket in most vehicles, to inflate car and bike tyres, balls, etc. This product is intended for household, consumer use only.
- Page 3 MP7950 12V Automatic Digital Air Compressor 5. OPERATION OPERATION USE OF ACCESSORIES Note: Make sure that the Quick Coupler is correctly fitted Remove the required accessories from the accessory to the item to be inflated. compartment. • To start the inflator press the main switch (1) to the on position.
- Page 4 MP7950 12V Automatic Digital Air Compressor 6. MAINTENANCE The only user serviceable part is a 10Amp fuse located I the 12V connector, this can be checked by unscrewing the spring loaded centre pin from the plug. Only replace with a fuse with identical ratings. Make sure that the machine is not live when carrying out maintenance work.
