- Page 2 CONGRATULATIONS, You have just purchased a IMG-BRASIL equipment, product of the highest quality, safety and efficiency. Founded in 1989, IMG-BRASIL is a respected company as one of the best and most complete companies in the field of gastronomy equipment manufacturing. Constant innovation and improvement of its products, using top-of-the-line raw materials, ensure superior products consumed in Brazil and in more than 25 countries worldwide.
-
Page 3: Table Of Contents
CONTENTS Safety Information....................4 1.1 General recommendations....................4 1.2 Mechanical Safety ......................5 1.3 Electrical Safety........................6 Technical Characteristics ..................6 2.1 Main Components ......................6 2.2 Technical Data........................8 2.3 Supply and Disposal of Appliance Packaging ..............8 Installation...................... -
Page 4: Safety Information
1. Safety Information 1.1 General Warnings • Cautions / precautions must be observed when installing, using, maintaining and discontinuing use of this appliance; • Before carrying out any operation (assembly, utilization (use), maintenance and reuse after prolonged use of the equipment), read the manual carefully; •... -
Page 5: Mechanical Safety
1.2 Mechanical Safety • Only insert the specific products for which the appliance is intended and never place your hands, fingers or objects in the cup with the appliance turned on, as this will cause an accident. • Before turning on the appliance, make sure that the tilt support is locked with the handle (cup in upright position). -
Page 6: Electrical Safety

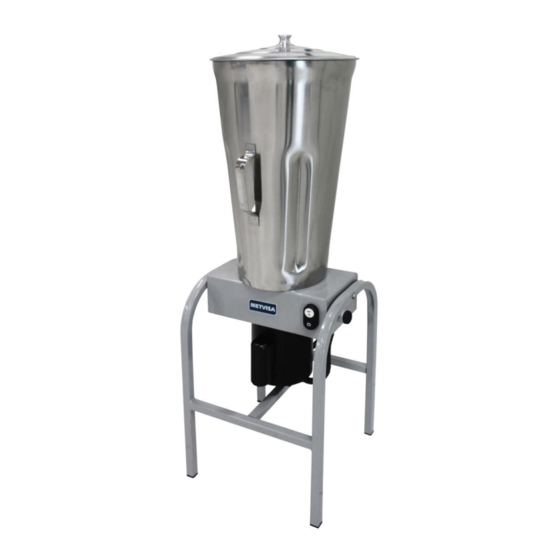

ATTENTION! Whenever any item regarding the safety of the equipment (such as cleaning or maintenance) is removed, reset it and confirm that it is performing its function correctly. 1.3 Electrical Safety • Periodically check the condition of the cables and electrical parts; •... - Page 7 The appliance was built with the following features: • Aluminum lid, a lightweight, durable and corrosion resistant material; • Cup manufactured in stainless steel 304, which resists the attack of several corrosive agents, such as the majority of the organic acids, organic substances in general, alkalis, oxy-salts, etc.. Note: stainless steel 304 is attacked by sulfuric acid, and also cannot withstand hydrochloric acid, diluted sulfuric acid, chlorides and halides in general.
-
Page 8: Technical Data
2.2 Technical Data Nominal Rated Electric Cable Gland Operating Voltage Capacity Model weight current cable Support Measures WidthxHeightxDept (kg) Cod. IMG) Cod. IMG) (mm) LQL19110M604 380x1090x855 * 19.3 CBE002 SBT387 LQL19220M501 380x1090x855 * 19.3 CBE020 SBT360 LQL19220M502 380x1090x855 * 19.3 CBE007 SBT360 LQL19220M504... -
Page 9: Installation
IMPORTANT The packaging components (cardboard, wood, foam, strips, etc.) are products that can be assimilated to solid urban waste and can be disposed of without difficulty. If the equipment is installed in countries with different standards, dispose of the packaging in accordance with current regulations. -
Page 10: Electrical Connection
ATTENTION! The installation and location of the appliance must be in accordance with the regulations on the prevention of risks and safety at work (regulatory standard in force in your country). The manufacturer will not be responsible for possible direct or indirect damage caused by non-compliance with said standards and other instructions presented in this manual. -
Page 11: Safety Measures And User Instruction
All models of the appliances described in this manual are single-phase and have a single voltage, wither 110 V or 220 V. If you need to change the voltage on your appliance, contact the manufacturer or an authorized dealer. ATTENTION! Before connecting your appliance, always check that the supply voltage of the network is the same as the voltage of the appliance. -
Page 12: Commands
4.2 Commands The appliance consists of on/off button and handle (lock). The on/off button is on the front of the appliance. The handle (lock) is positioned on the right side of the easel. See description of each command below: • On/Off Button - used to turn the appliance on and off. In position "1" it turns the appliance on, and turns it off in position "0". - Page 13 After verifying these items, follow the operating procedures of the appliance: • Connect the power cord to the power grid; • Add the liquid to the cup according to your recipe, but always observe the "max" level indicated on the internal and external part of the cup. Then add the pre-cut pieces of food; •...
-
Page 14: Cleaning And Maintenance
IMPORTANT It is recommended to remove the lid only for a quick view of the food being processed. Never turn on the appliance while the cup is open, and do not tilt the cup while the appliance is in operation. ATTENTION! If food sticks to the wall of the cup, turn off the appliance and unplug the appliance from the socket. - Page 15 ATTENTION! Before performing maintenance or cleaning, make sure that the on/off switch is in the "0" (off) position and the plug is disconnected from the power grid. ATTENTION! Do not use a water jet to clean the appliance. IMPORTANT This equipment is not intended to be fully immersed in water for cleaning. Follow the instructions below to find out which parts can be immersed and the special care to be taken with the other parts.
-
Page 16: Maintenance And Procedures In Case Of Breakdowns
5.2 Maintenance and Behavior in Case of Breakdowns The operator must be instructed to perform routine inspections, making minor adjustments, the cleaning and to observe signs of breakdowns that could occur. Examples include: checking for extraneous noise; loss of power of the appliance; the non-performance by the appliance of the service to which it proposes;... -
Page 17: Prolonged Interruption Of Use Of The Appliance
5.3 Prolonged Interruption of Appliance Use When you have to leave the appliance idle for an extended period of time, disconnect it from the power grid and perform a complete cleaning, including the different accessories. It is advisable to protect all parts of the appliance with white vaseline oil or suitable commercially available products. You should also protect the equipment from dust by covering it with a nylon screen or other material. -
Page 18: Useful Life Of The Appliance And Its Components
- Check the coupling and support - Incorrectly fitted cup in coupling images in the item Mechanical and cup holder. Safety (p. 5). Strange noises. Contact or refer the appliance to - Badly fixed parts Authorized Technical Assistance. The electrical cable must be - Transport damage;... -
Page 19: Annexes
8. ANNEXES Electrical Schema - Model LQL.19/25 Voltage 110 V or 220 V - Frequency 60 Hz On/Off Switch Tilt support of the appliance Single phase motor ATTENTION: The ground connection varies according to the type of plug. For electrical installation observe the current standards of the country, especially with regard to ground connection (if applicable). -
Page 20: Electrical Schema Voltage 220 V - 50 Hz
Electrical Schema - Model LQ.19/25 Voltage 220 V - Frequency 50 Hz On/Off Switch Tilt support of the appliance Single phase motor NOTE: In the above electrical schema, white wires are represented by pink. ATTENTION: The ground connection varies according to the type of plug. For electrical installation observe the current standards of the country, especially with regard to ground connection (if applicable). -
Page 21: Exploded Design
Exploded Drawing... -
Page 22: List Of Replacement Parts
Replacement Parts Application for Item Code Description Quantity Model CVT018 Complete Easel SBT409 Tilt Support EIX161 Tilting Axle Lock MNL011 Handle SPT003 Plastic shoe MTE226 Electric Motor 110 V - 60 Hz LQL.19 MTE227 Electric Motor 220 V - 60 Hz LQL.19 MTE073 Electric Motor 220 V - 50 Hz... - Page 24 IMG-BRASIL Indústria de Máquinas para Gastronomia Ltda. CNPJ 11.193.347/0001-14 - CREA 131726-3 Rod. Antônio Heil - KM 23 Nº 5825 - Neighborhood: Limoeiro ZIP CODE 88352-502 - Brusque - SC - Brazil Phone/fax. +55 47 3251-5555 - Website: www.metvisa.com.br E-mail: sac@metvisa.com.br - vendas@metvisa.com.br...
