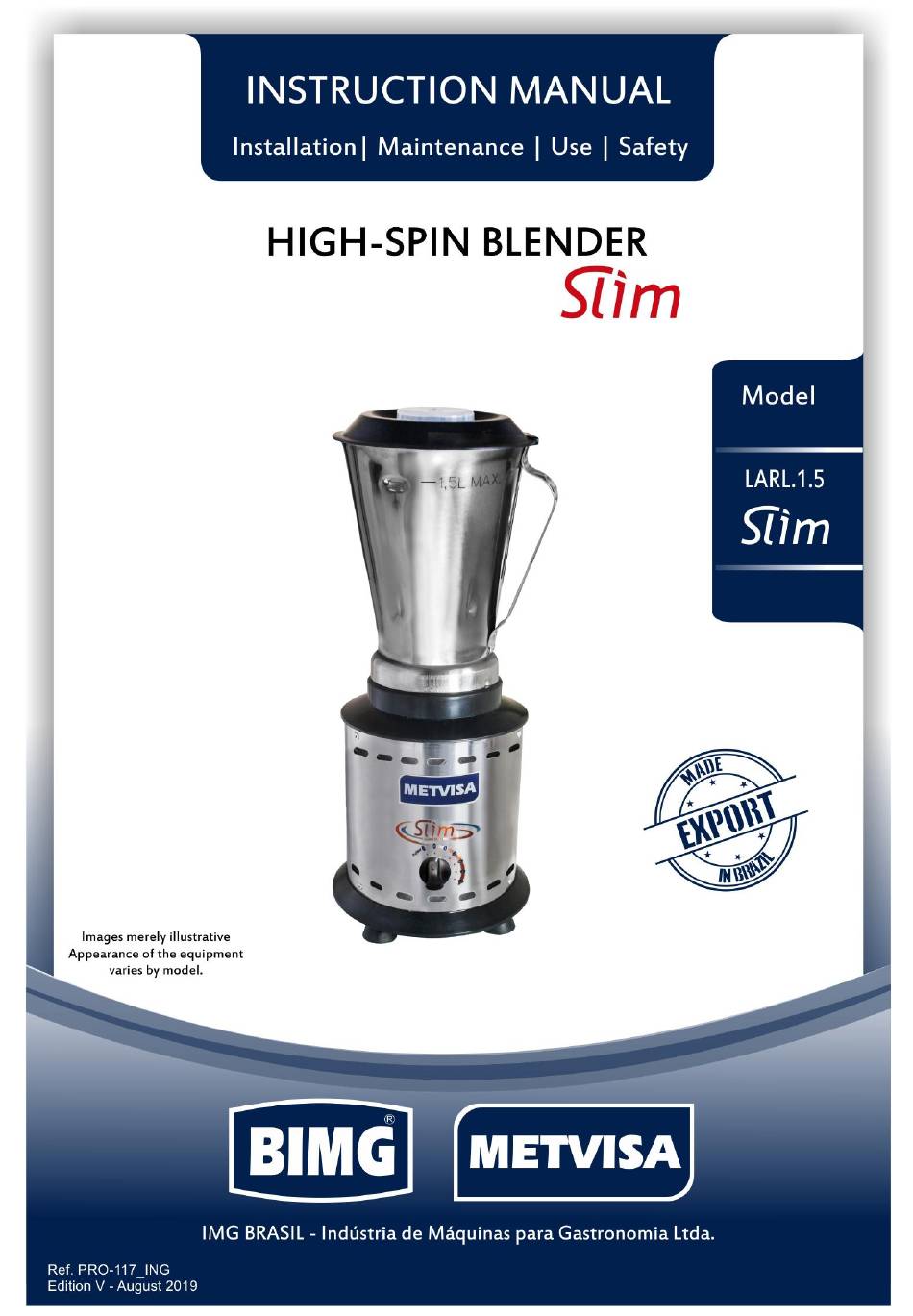

BIMG METVISA LARL.1.5 Slim Instruction Manual

High-spin blender
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the METVISA LARL.1.5 Slim and is the answer not in the manual?

Questions and answers

Related Manuals for BIMG METVISA LARL.1.5 Slim

Summary of Contents for BIMG METVISA LARL.1.5 Slim

  • Page 2: Table Of Contents

    Exploded view drawing..................... 13 List of Replacement Parts....................14 ATTENTION! The characteristics, pictures and figures presented in this manual should be considered for information. BIMG BRASIL reserves the right to make such modifications as may be deemed necessary without prior notice.

  • Page 3: Safety Information

    1. Safety Information 1.1 General Warnings • Cautions / precautions must be observed when installing, using, maintaining and discontinuing use of this appliance; • Before carrying out any operation (assembly, utilization (use), maintenance and reuse after prolonged use of the equipment), read the manual carefully; •...

  • Page 4: Technical Characteristics

    2. Technical Features 2.1 Main Components For the equipment described in this manual, safety in use, cleaning, maintenance and maximum hygiene are guaranteed by the design and special project for all parts, as well as by using stainless steel and other materials suitable for contact with food. The appliance was built with the following features: •...

  • Page 5: Technical Data

    2.2 Technical Data Nominal Measures Power Voltage Capacity Model Length.xHt.xWidth weight Nominal (mm) (kg) LARL1.5110CC4 195x435x190 LARL1.5220CC1 195x435x190 LARL1.5220CC2 195x435x190 LARL1.5220CC4 195x435x190 Noise level (appliance with load): 75 dB. ATTENTION! Features like: model, serial number and voltage of the equipment are provided on the label (figure below).

  • Page 6: Use Of The Appliance

    • It is essential to make this manual available to the professionals who carry out the installation. To ensure correct operation and safety, the machine must be positioned in an airy environment and on a sufficiently wide, level, dry and stable support surface, away from heat sources and water taps, and at a medium height of 80 cm.

  • Page 7: Commands

    4.2 Commands The appliance consists of a speed control knob, positioned on the front of the cabinet (image below). See button description and its functions: • Speed Control knob - used for pulsing, controlling speeds and turning the power appliance off. - Pulsar function: serves to break solid ingredients.

  • Page 8: Operating Procedures

    4.3 Operating Procedures Before operating your appliance, make sure that the items that come into contact with the food (cup, lid and overcap) are perfectly clean. Perform cleaning with the appliance disconnected from the electrical network. Follow the cleaning instructions in item 5 of this manual. Make sure that the cup is firmly inserted in the coupling and cup holder.

  • Page 9: Cleaning And Maintenance

    IMPORTANT To avoid overflowing ingredients, do not put more than 1 liter in the cup, especially if processing at full speed. Do not place more than 500ml in the cup if you are processing hot liquids or ingredients that tend to foam. When processing a liquid that is hot, remove the overcap to allow steam to escape.
  • Page 10 ATTENTION! Before performing maintenance or cleaning, make sure that the speed control knob is in the "0" (off) position and the plug is disconnected from the power grid. ATTENTION! Do not use a water jet to clean the appliance. IMPORTANT This equipment is not intended to be fully immersed in water for cleaning.

  • Page 11: Maintenance And Procedures In Case Of Malfunctions

    IMPORTANT The manufacturer shall not be liable for any direct or indirect damages caused by non- compliance with these standards and instructions presented in this manual. ATTENTION! It is extremely important that the products used in the cleaning ensure maximum cleanliness and are not toxic.

  • Page 12: Annexes

    6. ANNEXES Electrical Schematic - 110 V or 220 V - 60 Hz Voltage ATTENTION: The ground connection varies according to the type of plug. For electrical installation observe the current standards of the country, especially with regard to ground connection (if applicable).

  • Page 13: Exploded View Drawing

    Exploded view drawing...

  • Page 14: List Of Replacement Parts

    Replacement Parts Item Code Description Qty. CJT839 Full Stainless Steel Cup TAP103 Overcap of the blenders TAP156 Black Plastic Cover COP115 Stainless Steel Pointed Cup CJT685 Full Bearing 1.4.1 POC006 Nut Hat 1.4.2 LMT011 Stainless Steel Blade 1.4.3 VRG001 V'ring 1.4.4 ARE012 Celeron Graphite Washer Ø...
  • Page 16 IMG-BRASIL Indústria de Máquinas para Gastronomia Ltda. CNPJ 11.193.347/0001-14 - CREA 131726-3 Rod. Antônio Heil - KM 23 Nº 5825 - Bairro: Limoeiro CEP 88352-502 - Brusque - SC - Brazil Phone/fax. +55 47 3251-5555 - Website: www.metvisa.com.br E-mail: sac@metvisa.com.br - vendas@metvisa.com.br...
