Whirlpool WED5200TQ0 Parts List page 5

Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute Assembly
2 489463 Screw, 8−18 x 5/8
3 8066086 Drum Hole
Plug
4 3388703 Washer, Support
5 90767 Screw, 8−18 x 3/8
6 3977393 Thermal Cut−Off
(Includes
Illus. 15)
7 347139 Seal, Lint
Chute
8 3390647 Screw, 8−18 x 1/2
9 3392247 Pad, Blower
Housing
10 694089 Wheel, Blower
W10131185

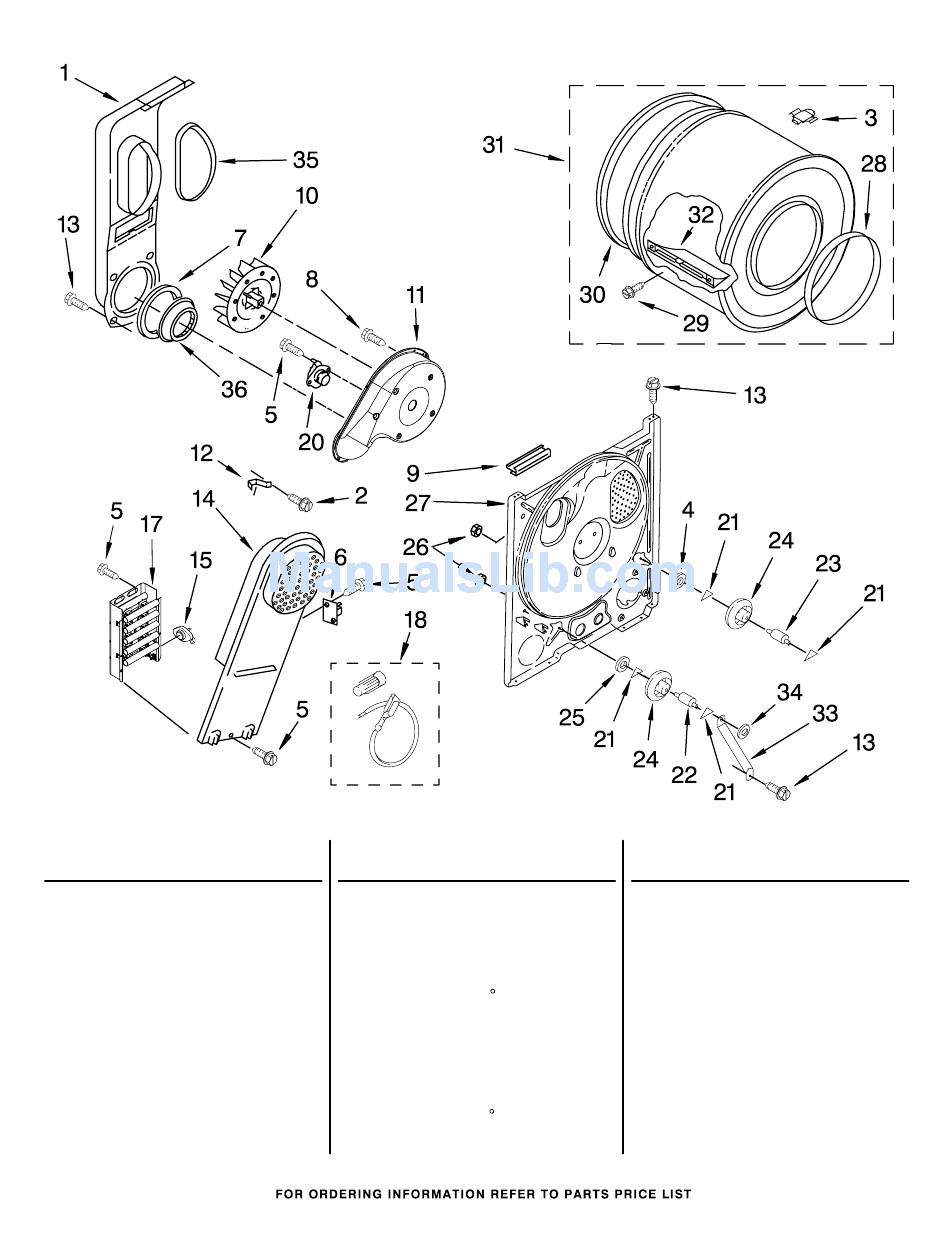

BULKHEAD PARTS
For Model: WED5200TQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
11 8577230 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 8541818 Box, Heater
15 3977767 Thermostat,
221 F (105C)
17 3403585 Element, Heater
18 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
20 3387134 Thermostat,
150 F (66C)
21 690997 Ring, Tri
5
Illus. Part
No. No. DESCRIPTION
22 3399506 Shaft, L.H.
23 3399507 Shaft, R.H.
24 3397590 Roller, Support
25 348197 Washer, Support
26 3359452 Nut, 3/8−16
27 8529955 Bulkhead
28 3394509 Ring, Bearing
29 W10109200 Screw, 11−16 x 3/4
30 8066085 Seal, Rear Drum
31 3396777 Drum Assembly
32 342847 Baffle, Drum
33 3976435 Bracket, Support
34 90296 Clip
35 339956 Seal
36 696302 Shield, Exhaust
