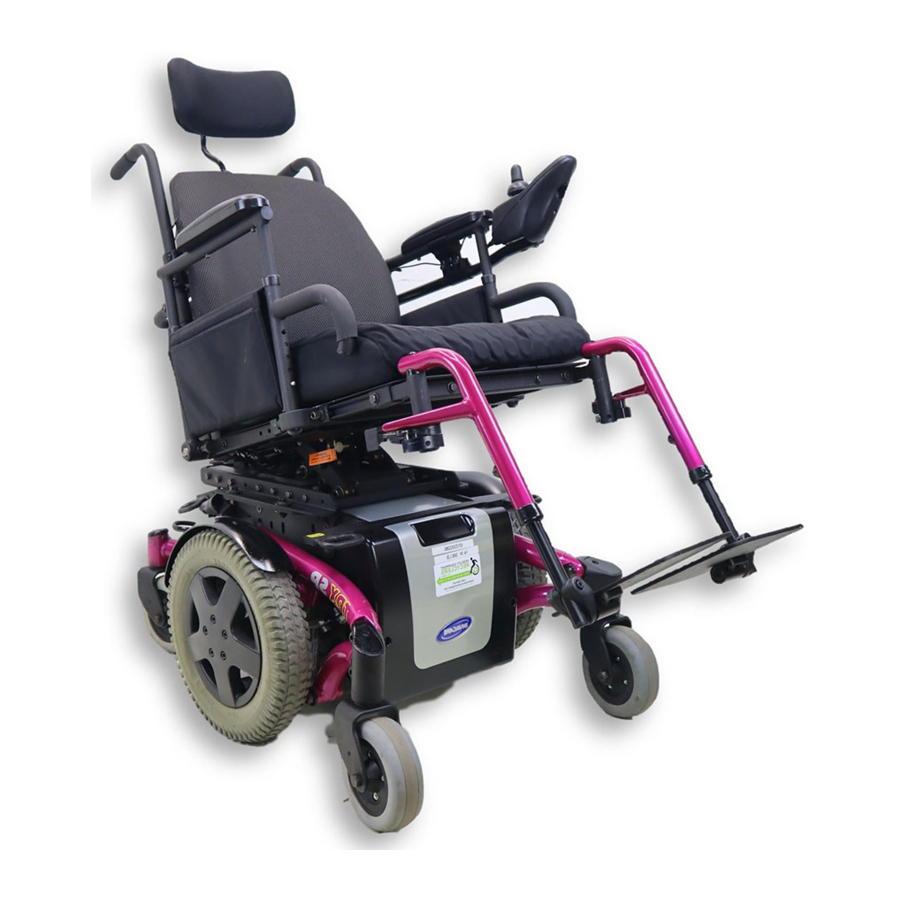

TDX®SP/TDX SR Stability Lock Service Kit
Assembly, Installation and Operating Instructions
Kit No. 1164005, 1164006, 1164007 and 1164008
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. In case of damage, DO NOT use. Contact
Carrier/Invacare for further instructions.
SAFETY SUMMARY
To ensure the safe installation of the stability lock service kits, these instructions must be
followed:
DANGER
Risk of Death, Serious Injury or Damage
Improper use of this product may cause injury or damage
If you are unable to understand the warnings, cautions or instructions, contact a health
care professional or dealer before attempting to use this equipment.
DO NOT use this product or any available optional equipment without first completely
reading and understanding these instructions and any additional instructional material
such as user manual, service manuals or instruction sheets supplied with this product or
optional equipment.
Incorrect repair and/or servicing of this wheelchair performed by users/caregivers or
unqualified technicians can result in death, serious injury, or damage.
Users/Caregivers — DO NOT attempt to repair and/or service this wheelchair.
Repair and/or service of this wheelchair MUST be performed by a qualified technician.
Contact a dealer or Invacare technician.
Use of incorrect or improper replacement (service) parts may cause death, serious
injury, or damage.
Replacement parts MUST match original Invacare parts.
ALWAYS provide the wheelchair serial number to assist in ordering the correct
replacement parts.
Missing attaching hardware could cause instability resulting in death, serious injury or
damage.
Ensure all attaching hardware is present and tightened securely.
Corroded electrical components due to water, liquid exposure, or incontinent users can
result in death, serious injury, or damage.
Minimize exposure of electrical components to water and/or liquids. Electrical
components damaged by corrosion MUST be replaced immediately.
Wheelchairs that are used by incontinent users and/or are frequently exposed to
water/liquids may require replacement of electrical components more frequently.
For more information regarding Invacare products, parts, and services,
please visit www.invacare.com
1
Part No 1150691
TDX®SP/TDX SR Stability Lock Service Kit
