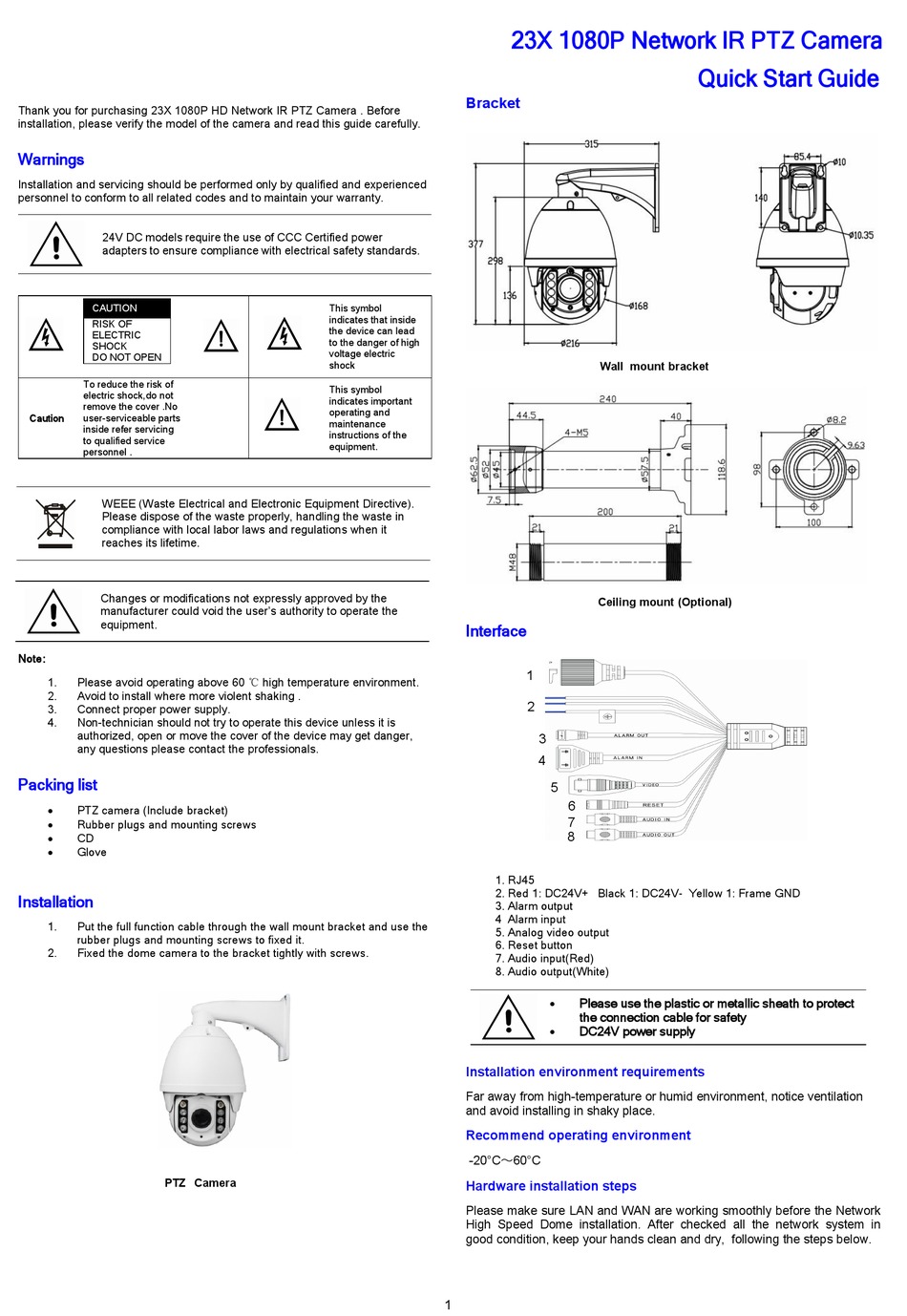

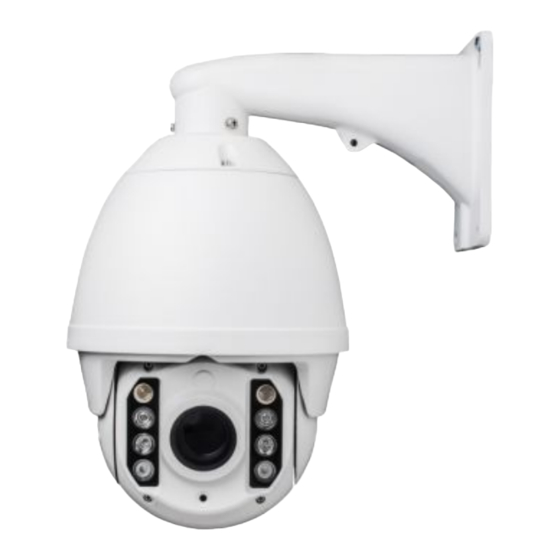

Doss DMZ150IPWV2 Quick Start Manual

Thank you for purchasing 23X 1080P HD Network IR PTZ Camera . Before
installation, please verify the model of the camera and read this guide carefully.

Warnings

Installation and servicing should be performed only by qualified and experienced
personnel to conform to all related codes and to maintain your warranty.
24V DC models require the use of CCC Certified power
adapters to ensure compliance with electrical safety standards.
CAUTION
RISK OF
ELECTRIC
SHOCK
DO NOT OPEN
To reduce the risk of
electric shock,do not
remove the cover .No
Caution user-serviceable parts
inside refer servicing
to qualified service
personnel .
WEEE (Waste Electrical and Electronic Equipment Directive).
Please dispose of the waste properly, handling the waste in
compliance with local labor laws and regulations when it
reaches its lifetime.
Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the
equipment.
Note:
1. Please avoid operating above 60 ℃ high temperature environment.
2. Avoid to install where more violent shaking .
3. Connect proper power supply.
4.
Non-technician should not try to operate this device unless it is
authorized, open or move the cover of the device may get danger,
any questions please contact the professionals.

Packing list

•
PTZ camera (Include bracket)
•
Rubber plugs and mounting screws
•
CD
•
Glove

Installation

1. Put the full function cable through the wall mount bracket and use the
rubber plugs and mounting screws to fixed it.
2. Fixed the dome camera to the bracket tightly with screws.
PTZ Camera

Bracket

This symbol
indicates that inside
the device can lead
to the danger of high
voltage electric
shock
This symbol
indicates important
operating and
maintenance
instructions of the
equipment.

Interface

1. RJ45
2. Red 1: DC24V+ Black 1: DC24V- Yellow 1: Frame GND
3. Alarm output
4 Alarm input
5. Analog video output
6. Reset button
7. Audio input(Red)
8. Audio output(White)

Installation environment requirements

Far away from high-temperature or humid environment, notice ventilation
and avoid installing in shaky place.

Recommend operating environment

-20°C～60°C

Hardware installation steps

Please make sure LAN and WAN are working smoothly before the Network
High Speed Dome installation. After checked all the network system in
good condition, keep your hands clean and dry, following the steps below.
1
23X 1080P Network IR PTZ Camera
Wall mount bracket
Ceiling mount (Optional)
1
2
3
4
5
6
7
8
 Please use the plastic or metallic sheath to protect
the connection cable for safety
 DC24V power supply
Quick Start Guide
