- Page 1 INSTRUCTION MANUAL FOR NEXT LEVEL RACING MATTE BLACK SIMULATOR COCKPIT If you require any support with your product or have an issue, please contact our friendly team at: support@nextlevelracing.com for a prompt response.
- Page 2 Thank-you for purchasing a Simulator Cockpit If you require any support with your product or have an issue, please contact our friendly team at: support@nextlevelracing.com for a prompt response. WARNING -Please do not use power tools for assembly as over tightening can damage your frame.
-
Page 3: What's In The Box

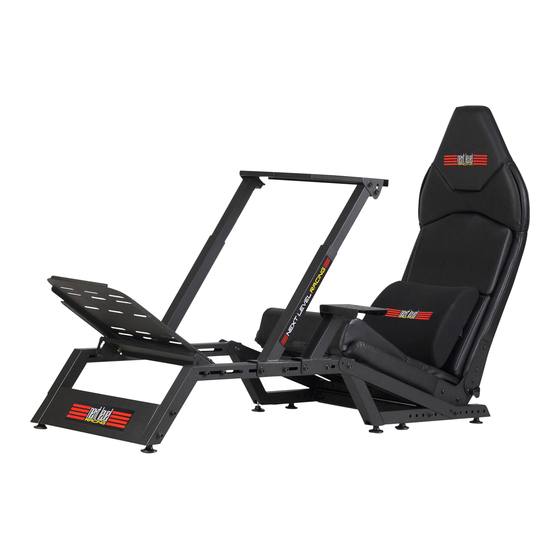

F-GT SIMULATOR COCKPIT What’s In The Box: LUMBAR/ NECK CUSHION SCREWS FOR WHEEL SHIFTER PEDALS 50MM BOLTS 60MM BOLTS SEAT BASE SEAT BACK For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com... -
Page 4: Step 1: Frame Assembly
F-GT SIMULATOR COCKPIT Step 1: FRAME ASSEMBLY FLOOR POSTS SIDE FRAMES 1 X 16MM BOLT Repeat both sides Step 2: FRONT PLATE 2 X 50MM BOLTS Repeat both sides SUPPORT POST Step 3: 1 X 50MM BOLT. Repeat both sides. -
Page 5: Step 4: Seat Assembly
F-GT SIMULATOR COCKPIT Step 4: SEAT ASSEMBLY 4 X 16MM BOLTS. Repeat both sides. SEAT SIDE FRAMES Attach SEAT SIDE FRAMES to SEAT BASE PLEASE NOTE: DUAL NUT PLATE SITS INSIDE SEAT SLIDER FRAME Step 5: Angle Mounts 2 X 16MM BOLTS. - Page 6 F-GT SIMULATOR COCKPIT Step 7: Formula ASSEMBLY WARNING DO NOT OVER TIGHTEN 2 X 60MM BOLTS FOR PEDAL PLATE OR YOU CAN DAMAGE YOUR FRAME WHEEL PLATE 2 X 50MM BOLTS. Repeat both sides. 5. Attach PEDAL PLATE to the PEDAL ANGLE BAR using 2 X 16MM BOLTS on each side.
- Page 7 F-GT SIMULATOR COCKPIT Step 8: Formula ATTACHING SEAT 1 X 60MM BOLT. Repeat both sides. 1 X 60MM BOLT. Repeat both sides. Step 9: Formula TIPS - PEDAL ANGLE BAR: This determines the distance of your pedals. If you are a shorter user attach closer to the seat.
- Page 8 F-GT SIMULATOR COCKPIT Step 10: GT ASSEMBLY WARNING DO NOT OVER TIGHTEN 2 X 60MM BOLTS FOR PEDAL PLATE OR YOU CAN DAMAGE YOUR FRAME WHEEL PLATE 3. 2 X 50MM BOLTS. Repeat both sides. 5. Attach PEDAL PLATE to frame using 1 X 16MM BOLT.
- Page 9 F-GT SIMULATOR COCKPIT Step 11: GT SEAT ASSEMBLY 2 X 60MM BOLTS. Repeat both sides. 2 X 60MM BOLTS. Repeat both sides. Step 12: GT TIPS -In GT position for extra comfort you may find the LUMBAR SUPPORT CUSHION provided suitable to use for your higher back or shoulders.
- Page 10 F-GT SIMULATOR COCKPIT Step 13: GEAR SHIFTER ASSEMBLY 2 X 50MM BOLTS SHIFTER BRACKET SHIFTER ARM Left hand side shifter Step 14: 2 X 50MM BOLTS Right hand side shifter For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 11 F-GT SIMULATOR COCKPIT Step 15: BUTTKICKER® GAMER 2 ADAPTOR 2 X 50MM BOLTS For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 12 F-GT SIMULATOR COCKPIT Step 16: CHANGING FROM Formula TO GT 4. Wheel Angle May need adjustment 3. Seat Angle May need adjustment 1. PEDAL PLATE *Please note many GT users prefer pedals in Formula style position meaning no need for 2.
- Page 13 F-GT SIMULATOR COCKPIT Step 18 (OPTIONAL): For maximum rigidity over adjustability, install optional FELT STRIPS in WHEEL SUPPORT BARS. This means sliding holes in frame won't be effective to change position Step 19: Attach HEIGHT ADJUSTABLE FEET to bottom of cockpit frame For assistance please contact: support@nextlevelracing.com...
