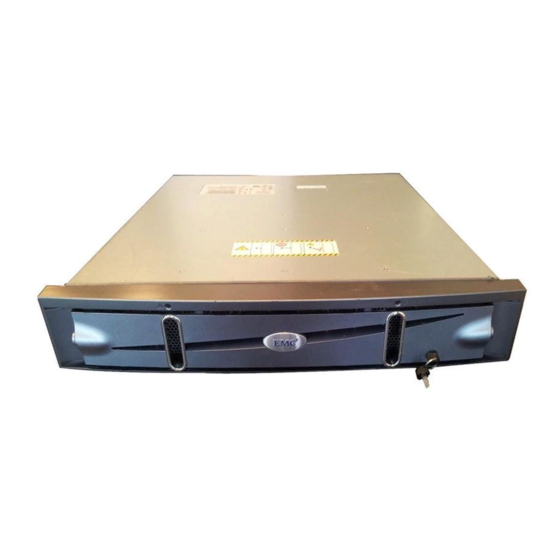

Installing a fibre channel storage system with a switch connection to a linux server
Hide thumbs Also See for AX100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Installing a Fibre Channel Storage
System with a Switch Connection to a
If you want to connect an AX100-Series Fibre Channel storage system -
AX100SC or AX100 - through one or two switches to a Linux server, this
document is for you. You can use the procedures in this document to
install configurations with a new or existing storage system that you
want to connect to a new or existing server.
The main topics are
AX100 Support Website........................................................................2
Terminology ...........................................................................................3
Before You Start .....................................................................................4
Installing HBAs in the Server ..............................................................7
Installing or Updating the HBA Driver .............................................9
Installing PowerPath on the Server .................................................. 11
Upgrading PowerPath on the Server................................................20
Installing the Navisphere Server Utility ..........................................26
Installing the UPS (AX100 Only).......................................................27
Unpacking the Storage System..........................................................28
Installing the Storage System.............................................................30
Installing Additional Disks ................................................................34
Installing the Switches in the Cabinet ..............................................41
Initializing the Storage System ..........................................................56
AX100-Series
Linux Server
Revision A06
July 25, 2005
1
